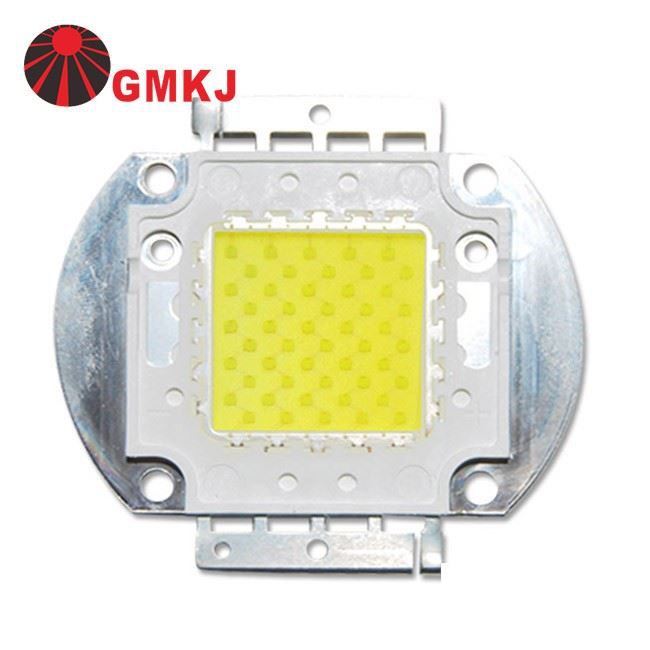

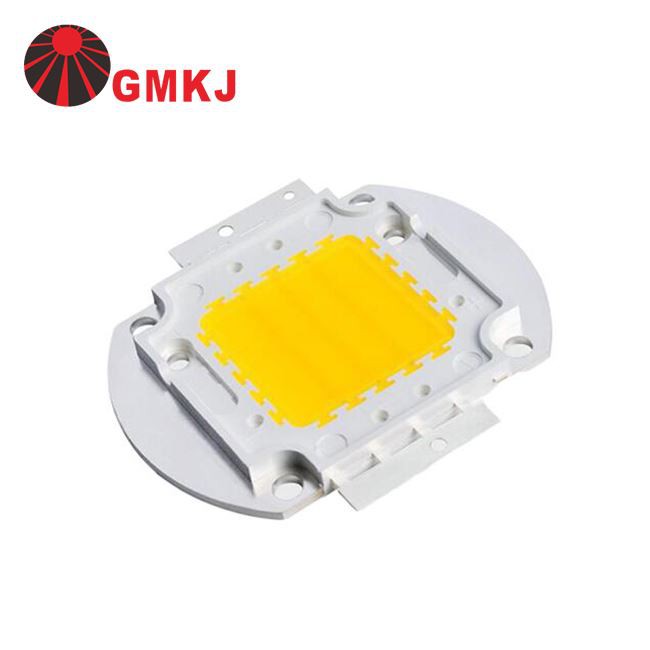

50W LED Module Bridgelux Chips
●Well-known chip material, USA Bridgelux chips
●99.99% gold wire bonding
●Red copper led base for better thermal conductive
●Color temperture can be customised from 1500K to 30000K
●High flux per LED, max 150LM/W
●More energy efficient than incandescent and most halogen lamps
●Instant on light(less than 100ns)
●Warranty: 4 years, the best choice for outdoor street light
Product Specification
Typical Electrical & Optical Characteristics ( Ta = 25°C)
Items | Symbol | Condition | Min. | Typ. | Max. | Unit |
Forward Voltage | VF | IF =1750mA | 30.00 | 34.00 | V | |
Reverse Current | IR | VR = 50V | 10 | mμA | ||
Color Temperature | CCT | IF =1750mA | 6000 | 6500 | K | |
Luminous Flux | Φv | IF =1750mA | 6000 | 8000 | lm | |
50% Power Angle | 2θ½ | IF =1750mA | 120 | deg | ||
Thermal Resistance （Junction to Board） | RJ-B | IF =1750mA | 8 | °C/W |
Package Dimension
Packing Method
Normal packing Quantity: 12pcs per plate in vacuum bag.
Vaccum bags help the led to prevent from humidity in the air.
Company Introduction
GMKJ was established in 2009 with a registered capital of 67.23 million yuan, is one of a leading semiconductor light-emitting diode enterprises in China.
With the concept of “High Quality, No Defect”, GMKJ executes strict quality control according to the ISO/TS16949 certification system in every step from the raw materials to technological design and to the production. The full series of products was certificated by LM-80, CE, ROHS, EN62471,IS9001:2008..
Application of 50W COB LED
Typical Applications
• LED flood light
• LED Street light
• LED high bay light
• LED fishing light
• LED projector lamps
