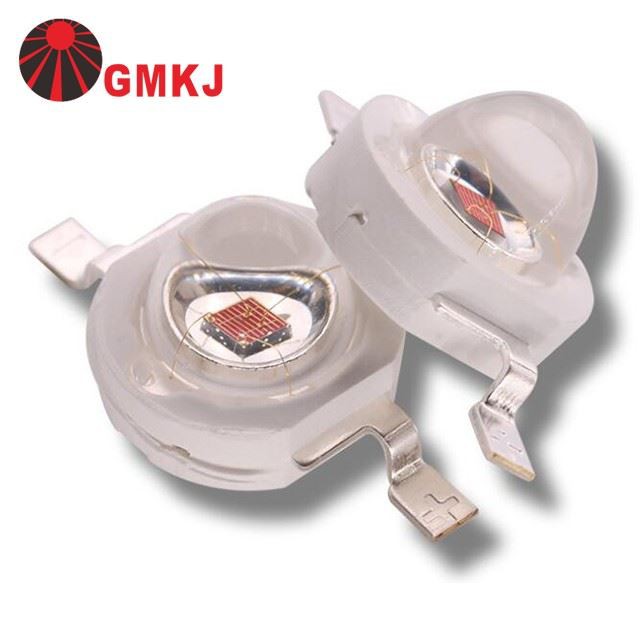

Guangmai Technology is professional in making the high power led 1w red led chip diode.
FEATURES：
1.High lumen：160-180LM
2.CR96+，R1-R15>92+
3. Wavelength：360-950nm
4. 3V/6V/9V available
5. R/G/B/Y/A/UV/IR Color
6. Phosphor red/green/amber, yellow/ ice blue... available
7. PCT/ EMC lead frame
8. Molding lens technology
9. RoHS, CE. LM-80. IEC62471
ORDER INSTRUCTION
| Color | WL(nm)/CCT(K) | Lumens(LM) | Chip Size | Chip Brand | Chip Quantity (pcs) | Input volt(V) | Input current (mA) |
| Purple | 365-445 nm | 30-60 | 30mil, 42mil, 45mil | Epileds, Epistar | 1 | 3.0-3.4 | 300-600 |
| Red | 620-660 nm, 730-740 nm, 940-950 nm, 850 nm | 50-90 | 38mil, 40mil, 42mil | Epileds, Epistar | 1 | 2.0-2.4 | 300-600 |
| Blue | 445-470 nm | 60-120 | 30mil, 35mil, 45mil | Epistar, Bridgelux, Cree | 1 | 3.0-3.4 | 300-600 |
| Green | 510-530 nm | 80-130 | 40mil | Epileds | 1 | 3.0-3.4 | 300-600 |
| Cyan | 495-500 nm | 70-90 | 40mil | Epileds | 1 | 2.0-2.4 | 300-600 |
| Yellow | 585-595 nm | 70-90 | 38mil, 40mil | Epileds | 1 | 2.0-2.4 | 300-600 |
| White | 2700-20000 K | 100-160 | 30mil, 35mil, 45mil | Epistar, Bridgelux, Cree | 1 | 3.0-3.4 | 300-600 |
Specs:
Warranty:
high power led 1w red led chip diode specifications:
■ Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage | VF | IF=350mA | 2.0 | -- | 2.6 | V |
Thermal Resistance Junction To Board | RΘJ-B | IF=350mA | -- | 8 | -- | °C/W |
Luminous Flux | Φ | IF=350mA | 40 | 60 | lm | |
Dominant wavelength | λD | IF=350mA | 620 | 630 | nm | |
CRI | Ra | IF=350mA | -- | -- | -- | -- |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=350mA | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=5V | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=350mA | −− | 140 | −− | Deg |
Package:
Inner Packing: 50pcs with an antic-static plastic box OR 50pcs/tube
Outer Packing: Carton box
Samples in stock,we can send them in 2 days, and orders normally is sent out by 5-7days, or according to the quantity.
high power led 1w red led chip diode application
About GMKJ LED
GMKJ service:
1. We have our own independent R&D department on existing products for better maintenance, we still continue to develop high-tech products. We have our own patented products.
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
Shipping ways
Generally , we Ship by UPS, DHL, FEDEX, TNT, and EMS , since the products isn't too heavy
Payment methods:
T/T (Bank Transfer) , Western Union,Paypal ,etc
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ?
A: Yes, we could offer the sample .
Q4: What is your terms of payment ?
A:Payment<=10000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Datasheet:
For more details, please feel free to contact with Guangmai Tech directly.
You can download the English Version datasheet of high power led 1w red led chip diode from the head of this page.
