Name: China 3W K1 Emitter Power LED Manufacturers, Suppliers - Factory Direct Price - Guangmai Technology
Brand: GMKJ
SKU: 221799493

Products Description

3W K1 emitter power LED shown as below:

Product name	3W K1 emitter power LED
Chips brand	3W Taiwan Epistar 45mil; 3W Taiwan Epileds 45mil; 3W USA Bridgelux 45mil;
Input	1W 3-3.4vdc 350mA; 3W 3-3.6vdc 700mA
Brightness	1W 350mA: 140-160lm; 3W 700mA: 240-280lm
Color	White 2700K, 3000K, 4000K, 5000K and 6500K
CRI	Ra>70, Ra>80 and Ra>90 optional
Material	Copper LED base with Au>99.99% golden wire
Lighting angle	Plastic lens with 120 degree, max reflow temperature<200C
Brand and manufacturer	GMLEDs, GMKJ
Package	LED tubes package: 50 pcs per tube; LED rolls package: 1000 pcs per roll; LED bags package: 500 pcs per bag

3W K1 emitter power LED size:

3w K1 emitter power led size

Notes: All dimensions in mm tolerance is ±0.1mm unless otherwise noted.

3W K1 emitter power LED star pcb boards size:

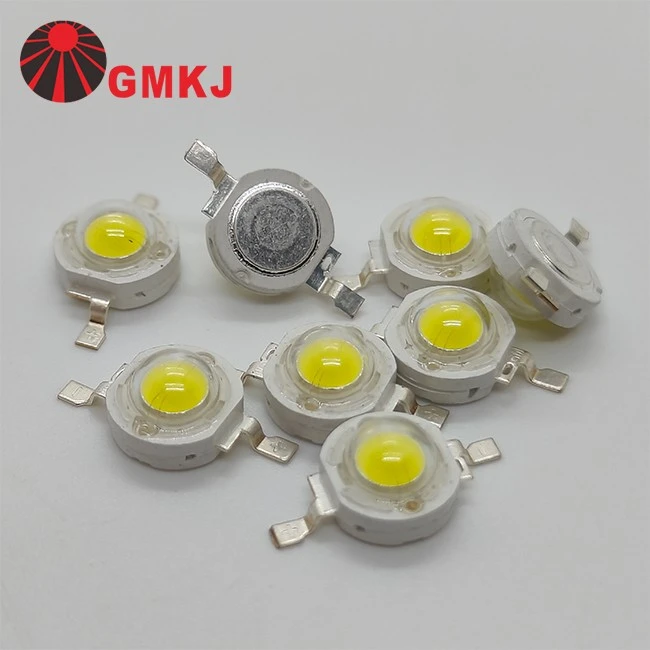

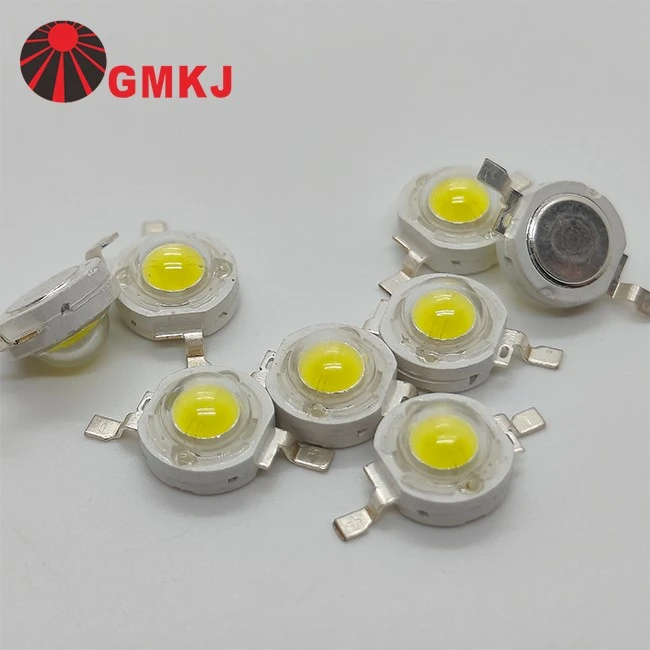

3W K1 emitter power LED picture:

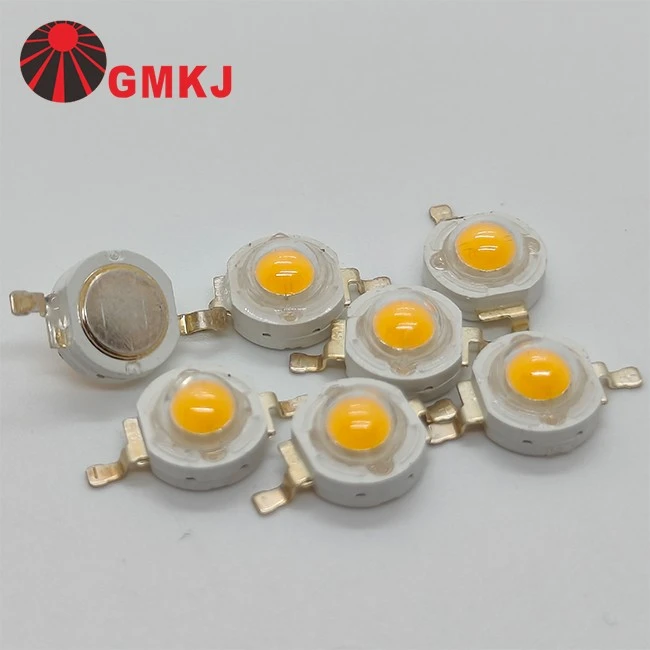

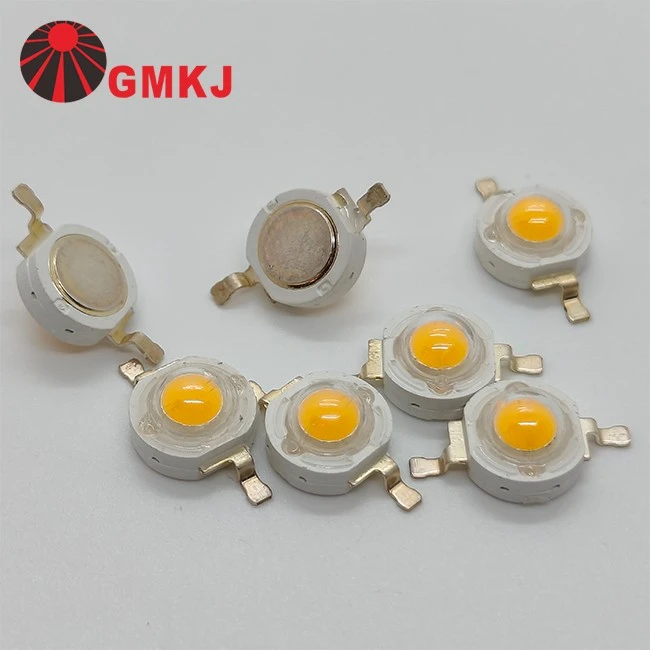

Cool white 6000K	Warm white 3000K

Single color K1 emitter power led with star pcb boards	RGB and RGBW K1 emitter power led with star pcb boards

3W K1 emitter power LED technical specs:

■ 1W 350mA Electrical/Optical Characteristics--White (At TA=25°C)

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	V_F	I_F=350mA	3.00	--	3.40	V
Thermal Resistance Junction To Board	RΘ_J-B	I_F=350mA	--	8	--	°C/W
Luminous Flux	Φv	I_F=350mA	150		160	lm
Color Temperature	CCT	I_F=350mA	6000		6500	K
CRI	Ra	I_F=350mA	70	--	--	--
Temperature Coefficient of Forward Voltage	∆V_F/∆T	I_F=350mA	−−	-2	−−	mV/°C
Reverse Current	I_R	V_R=5V	−−	−−	10	μ A
Viewing Angle	2Θ_1/2	I_F=350mA	−−	140	−−	Deg

■ 3W 700mA Electrical/Optical Characteristics--White (At TA=25°C)

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	V_F	I_F=700mA	3.20	--	3.60	V
Thermal Resistance Junction To Board	RΘ_J-B	I_F=700mA	--	8	--	°C/W
Luminous Flux	Φv	I_F=700mA	240		280	lm
Color Temperature	CCT	I_F=700mA	6000		6500	K
CRI	Ra	I_F=700mA	70	--	--	--
Temperature Coefficient of Forward Voltage	∆V_F/∆T	I_F=700mA	−−	-2	−−	mV/°C
Reverse Current	I_R	V_R=5V	−−	−−	10	μ A
Viewing Angle	2Θ_1/2	I_F=700mA	−−	140	−−	Deg

3W K1 emitter power LED series:

Picture	Part number	Power	Color	Chips brand and brightness	Input specs
	GP-1WW6-JY33	1W	White color	Taiwan Epistar 33mil 120-140LM	3V 350mA
	GP-1WW6-TH35	1W	White color	Tonghui 35mil 90-110lm	3V 350mA
	GP-1WW6-PR35	1W	White color	USA Bridgelux 35mil 120-140LM	3V 350mA
	GP-3WW6-JY45	1-3W	White color	Taiwan Epistar 45mil 1W 120-140LM/ 3W 200-240LM	3V 350/700mA
	GP-3WW6-JP45	1-3W	White color	China Jingpu 45mil 1W 140-160LM/ 3W 240-260LM	3V 350/700mA
	GP-3WW6-GH45	1-3W	White color	Taiwan Epileds 45mil 1W 150-160LM/ 3W 240-280LM	3V 350/700mA
	GP-3WW6-PR45	1-3W	White color	USA Bridgelux 45mil 1W 150-170LM/ 3W 240-280LM	3V 350/700mA
	GP-5WW6-JP45	1-5W	White color	Jingpu 45mil*2 chips 400-500LM	3V 1400mA/6V 700MA
	GP-5WW6-PR45	1-5W	White color	USA Bridgelux 45mil*2 400-500LM	3V 1400mA/6V 700MA
	GP-1WR2-GL28	1W	Red, 620-630nm	Taiwan OPTOTECH 28mil	2V 350mA
	GP-1WR2--GH28	1W	Red, 620-630nm	Taiwan Epileds 28mil	2V 350mA
	GP-3WR2-GL42	1-3W	Red, 620-630nm	Taiwan OPTOTECH 42mil	2V 700mA
	GP-3WR2-GH40	1-3W	Red, 620-630nm	Taiwan Epileds 40mil	2V 700mA
	GP-3WR2-GH42	1-3W	Red, 620-630nm	Taiwan Epileds 42mil	2V 700mA
	GP-3WR2-SA38	1-3W	Red, 620-630nm	China Sanan 38mil vertical	2V 700mA
	GP-1WG6-GL28	1W	Green, 520-530nm	Taiwan OPTOTECH 28mil	3V 350mA
	GP-1WG6-GH28	1W	Green, 520-530nm	Taiwan Epileds 28mil	3V 350mA
	GP-3WG6-GL45	1-3W	Green, 520-530nm	Taiwan OPTOTECH 45mil	3V 700mA
	GP-3WG6-GH45	1-3W	Green, 520-530nm	Taiwan Epileds 45mil	3V 700mA
	GP-3WG6-DXY45	1-3W	Green, 520-530nm	Dingxinyuan 45mil, super bright	3V 700mA
	GP-1WB3-GL28	1W	Blue, 455-465nm	Taiwan OPTOTECH 28mil	3V 350mA
	GP-1WB3-GH30	1W	Blue, 455-465nm	Taiwan Epileds 30mil	3V 350mA
	GP-3WB3-GL45	1-3W	Blue, 455-465nm	Taiwan OPTOTECH 45mil	3V 700mA
	GP-3WB3-GH45	1-3W	Blue, 455-465nm	Taiwan Epileds 45mil	3V 700mA
	GP-3WB3-PR45	1-3W	Royal Blue, 450-455nm	USA Bridgelux 45mil, plant grow light	3V 700mA
	GP-3WB3-GH45-440	1-3W	Royal Blue, 440-445nm	Taiwan Epileds 45mil	3V 700mA
	GP-3WB3-GH45-447	1-3W	Royal Blue, 447-450nm	Taiwan Epileds 45mil	3V 700mA
	GP-3WCY-GH45-490	1-3W	CYAN 490-495nm	Taiwan Epileds 45mil	3V 700mA
	GP-1WY4-LS28	1W	Amber, 590-595nm	Taiwan HPO 28mil	2V 350mA
	GP-3WY4-J42	1-3W	Amber, 590-595nm	Taiwan Epistar 42mil	2V 700mA
	GP-3WY6-GH42	1-3W	Amber, 600-610nm	Taiwan Epileds 42mil	2V 700mA
	GP-1WAB-JY33	1W	Amber, 1800-2000k PC	Taiwan Epistar 33mil	3V 700mA
	GP-3WAB-PR45	1-3W	Amber, 1800-2000k PC	USA Bridgelux 45mil	3V 700mA
	GP-1WUV-ZW45-395	1W	UVA,395-405nm	Zhongwei 45mil (MOQ 2000pcs)	3V 350mA
	GP-1WUV-ZW45-367	1W	UVA,367-372nm	Dingxin 45mil (MOQ 2000pcs)	3V 350mA
	GP-3WUV-G45-410	1-3W	Purple ,410-430nm	Taiwan Epileds 45mil	3V 700mA
	GP-3WUV-G45-395	1-3W	UVA,390-410nm	Taiwan Epileds 45mil	3V 700mA
	GP-3WUV-G45-380	1-3W	UVA,380-390nm	Taiwan Epileds 45mil	3V 700mA
	GP-3WUV-G45-365	1-3W	UVA,365-370nm	Taiwan Epileds 45mil	3V 700mA
	GP-1WDR-GH28-660	1W	Deep Red,650-660nm	Taiwan Epileds 28mil, plant growth	2V 350mA
	GP-1WDR-GH38-660	1W	Deep Red,650-660nm	Taiwan Epileds 38mil, plant growth	2V 350mA
	GP-3WDR-G42-660	1-3W	Deep Red,650-660nm	Taiwan Epileds 42mil, plant growth	2V 700mA
	GP-3WDR-SL42-660 (MOQ:5000)	1-3W	Deep Red,650-660nm	China Shilan 42mil, plant growth	2V 700mA
	GP-3WWFS-PR45	1-3W	White full spectrum Ra>95	USA Bridgelux 45mil	3V 700mA
	GP-3WF3-PR45	1-3W	Pink full spectrum	USA Bridgelux 45mil, plant growth	3V 700mA
	GP-3WFR-G42-740	1-3W	IR, 740-750nm	Taiwan Epileds 42mil	2V 700mA
	GP-1WIR-G30-840	1W	IR, 845-855nm	Taiwan Epileds 30mil	2V 700mA
	GP-3WIR-G42-810	1-3W	IR, 800-810nm	Taiwan Epileds 42mil	2V 700mA
	GP-3WIR-G42-840	1-3W	IR, 845-855nm	Taiwan Epileds 42mil	2V 700mA
	GP-3WR9-G42-940	1-3W	IR, 930-940nm	Taiwan Epileds 42mil	2V 700mA
	GP-3WR9-HPO-940	1-3W	IR, 930-940nm	Taiwan HPO 42mil	2V 700mA
	GP-3WR10-G42-1050	1-3W	IR, 1000-1060nm	Taiwan Epileds 42mil	1.4-1.8V 700mA
	GP-3WR10-G42-1300	1-3W	IR, 1300-1350nm	Taiwan Epileds 42mil	1.4-1.8V 700mA
	GP-1WW3W6-JY33	2*1w	tunable 3000K+6000K	Taiwan Epistar 33mil*2 chips	3V 350mA each color
	GP-3WRGB-GL28	3*1W	RGB 6 pins	Taiwan OPTOTECH 28mil	R625/G525/B460NM, 300-350mA
	GP-3WRGB-GH28	3*1W	RGB 6 pins	Taiwan Epileds 28mil	R625/G525/B460NM, 350mA
	GP-3WRGB-GL45	3*1-3W	RGB 6 pins	Taiwan OPTOTECH 45mil	R625/G525/B460NM, 350-700mA
	GP-3WRGB-G45	3*1-3W	RGB 6 pins	Taiwan Epileds 45mil	R625/G525/B460NM, 350-700mA
	GP-4WRGBW	4*1W	RGBW 8 pins	Taiwan Epileds 28mil	R625/G525/B460NM/W6000K, 350mA
	GP-12WRGBW	4*3W	RGBW 8 pins	Taiwan Epileds 45mil	R625/G525/B460NM/W6000K, 350-700mA

Application

3W K1 emitter power LED mainly used for LED wall washer lights, LED flood light, LED landscape light, LED fountain light, drone LED lights for special performance and so on.

rgb and rgbw leds applications

rgb and rgbw leds applications 2

About GMKJ LED

GMKJ is an ISO Certificated manufacturer of high quality, high reliability LED diodes, formed in January of 2009. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements.

About GMKJ LED

Our Service:
PCB design & Reflow soldering service
COB/LED/Drivers customization
Mold development (Plastic injection & Die casting)
Representatives in the UK, Korea and Czech.
ISO9001-2008, SGS, TUV, BV, CNAS accredited laboratory & Optical Lab.

Shipment

2828 cob led shipment

Shipping Options:
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 10-15 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express.
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.

For more details, please write back to us GMLEDs Team directly!
