SWIR 1050nm 1060nm LED Module Array Specs
| Product name | SWIR 1050nm 1060nm LED Module Array |
| Part number | GM-050R1050-9090MZ |
| Chips brand | Japan high power and high radiation power 1050nm chips inside |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
6-9vdc IFmax 5000mA |
| Luminous/ Radiant Flux | 6000-11000mW at 2000mA |
| Lighting Efficiency |
invisible SWIR light, there is no lm/w lighting efficiency declared |
| Wavelength/Color | SWIR 1050-1060nm |
| Power |
max 50 Watt |
| Package material |
ALN Ceramic substrated with copper board soldered |
| Lighting angle |
120 degree lighting angle, Flat pkg with quartz glass lens |
| Price | Please contact with GMKJ Sales team for the Price |
| Warranty | 3-4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

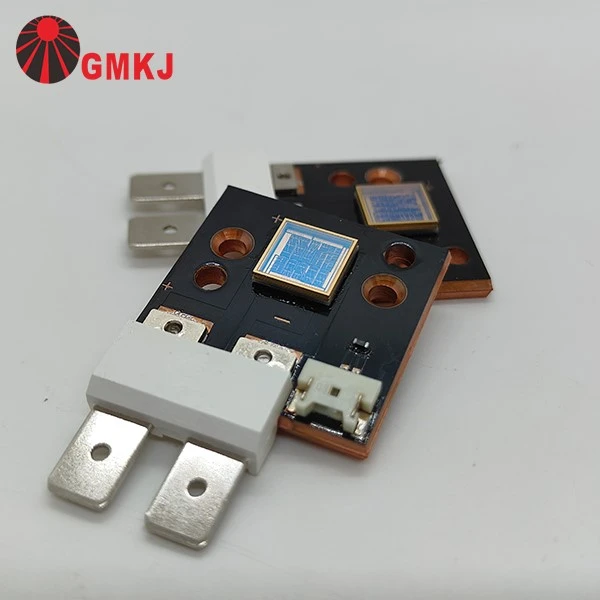

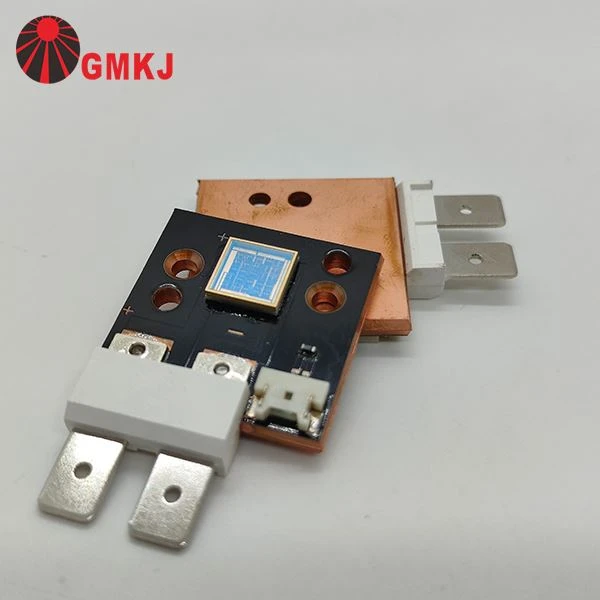

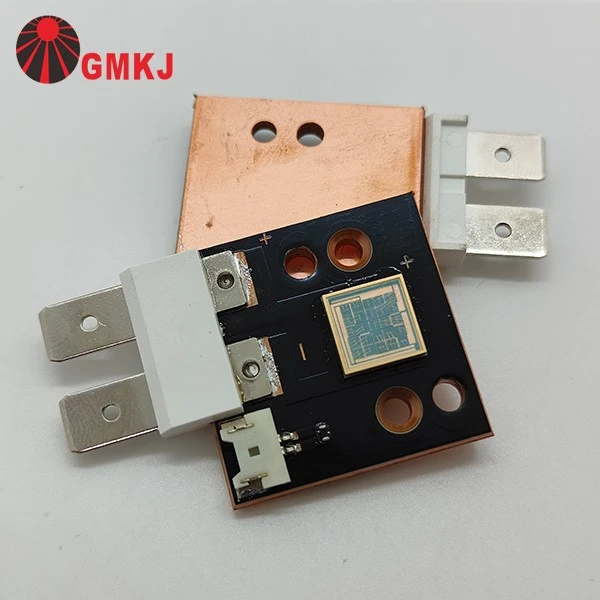

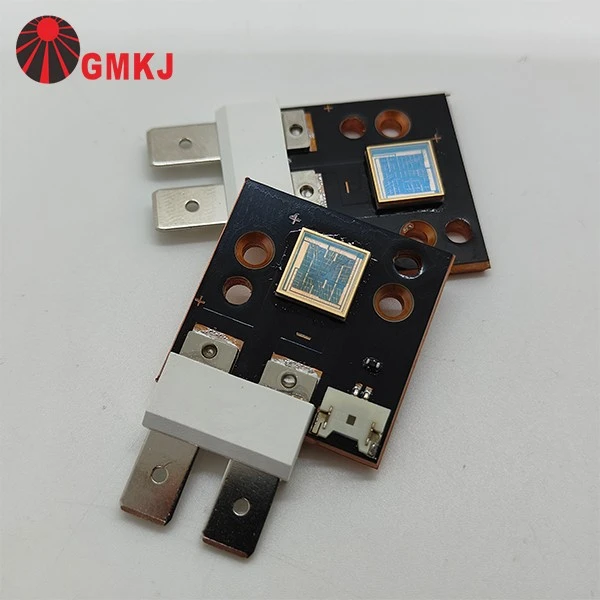

SWIR 1050nm 1060nm LED Module Array picture

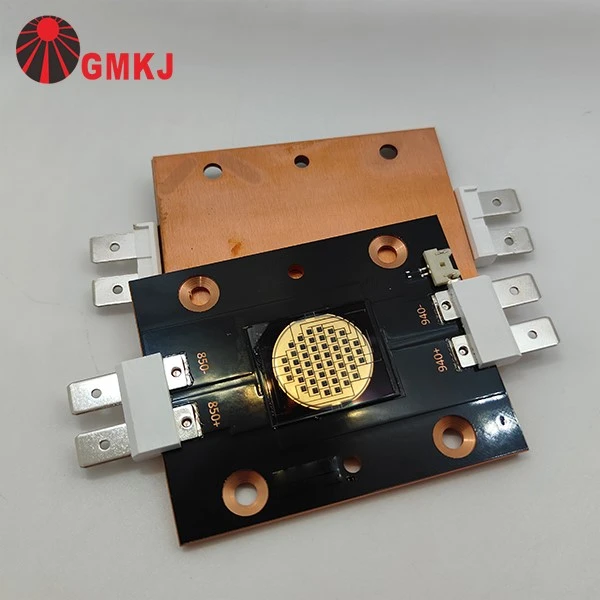

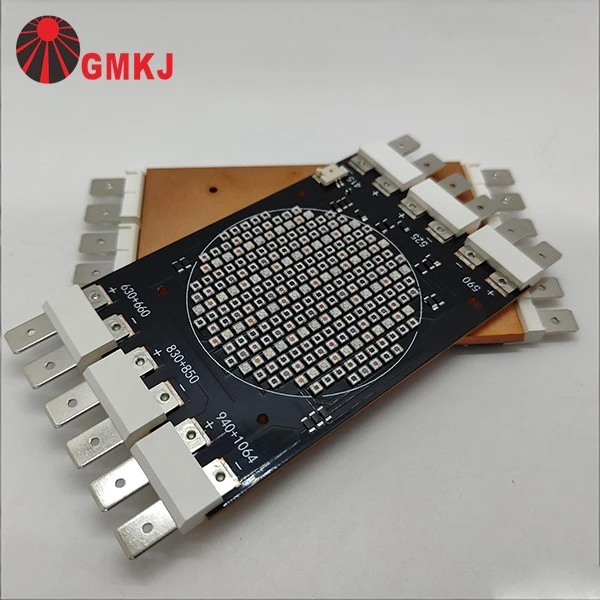

What we are making now for high power customised type LED modules:

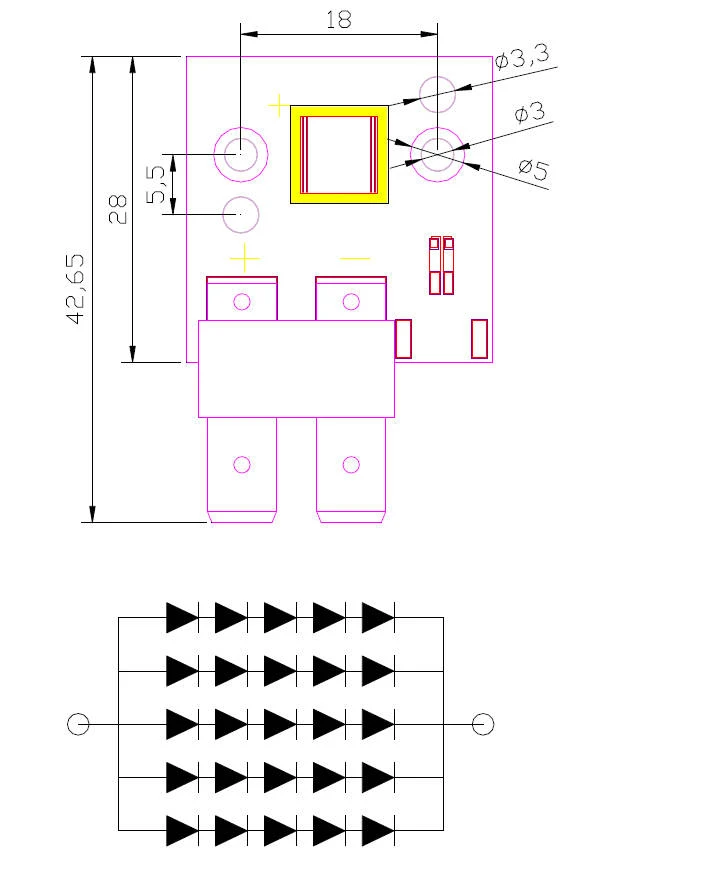

SWIR 1050nm 1060nm LED Module Array Dimension
SWIR 1050nm 1060nm LED Module Array details from the Specs Sheet
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=2000mA |
6 |
-- |
9 |
V |
|
Radiant Flux |
Φe |
IF=2000mA |
6000 |
11000 |
mW |
|
|
Peak wavelength |
λp |
IF=2000mA |
1050 |
1060 |
nm |
|
|
Thermal Resistance Junction To Soldering Pad |
RΘJ-S |
IF=2000mA |
-- |
5 |
-- |
°C/W |
|
Reverse Current |
IR |
VR=20V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] |
2Θ1/2 |
IF=2000mA |
−− |
120 |
−− |
Deg |
The Role of 1050nm LEDs in Machine Vision Applications?
A 1050nm near-infrared (NIR) LED is an ideal illumination source for many advanced machine vision systems. Since its wavelength is invisible to the human eye, it enables high-contrast imaging without affecting operators or disturbing the surrounding environment.
Compared with visible light, 1050nm illumination offers deeper penetration into many materials, making it suitable for applications where internal features or subsurface information need to be inspected.
Key Advantages
- Enhanced material discrimination
Different materials exhibit unique reflectance characteristics at 1050nm, allowing machine vision systems to distinguish between plastics, textiles, food products, paper, wood, and other materials more accurately.
- Improved image contrast
Near-infrared illumination suppresses the influence of printed colors and surface patterns, enabling cameras to focus on structural features instead of visible color differences.
- Reduced ambient light interference
With an appropriate NIR bandpass filter, a 1050nm vision system can significantly reduce the effects of sunlight and artificial lighting, resulting in more stable image quality.
- Non-visible illumination
Since 1050nm light is invisible to the human eye, it is ideal for security inspection, automated production lines, and other applications where visible illumination is undesirable.
Typical Machine Vision Applications
- Material sorting and classification
- Food and agricultural product inspection
- Moisture and water content detection
- Semiconductor and electronic component inspection
- Packaging quality inspection
- Surface defect detection
- Plastic and recycling material identification
- OCR and barcode reading under challenging lighting conditions
Why Choose 1050nm?
The 1050nm wavelength provides an excellent balance between camera sensitivity and material penetration. It is compatible with many silicon-based CMOS and CCD image sensors while offering improved performance for inspecting materials that are difficult to analyze under visible light.
When paired with a high-quality NIR camera and optical filters, a 1050nm LED illumination system delivers stable, high-contrast images that enhance inspection accuracy and improve the reliability of automated machine vision systems.
About GMKJ
Guangmai Technology is a professional LED manufacturer established in 2009, specializing in LED packaging and custom LED solutions.
Our main products include SMD LEDs, High Power LEDs, COB LEDs, UV LEDs, IR LEDs, VCSELs, and ceramic substrate LEDs. We offer wavelengths from 200nm to 3000nm for applications such as horticulture lighting, medical devices, industrial curing, machine vision, security, and scientific research.
With advanced production equipment, strict quality control, and experienced engineering support, we provide reliable products and customized solutions to customers in more than 50 countries worldwide.
We are committed to delivering high-quality LED products, competitive pricing, and professional service to our global partners.
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
