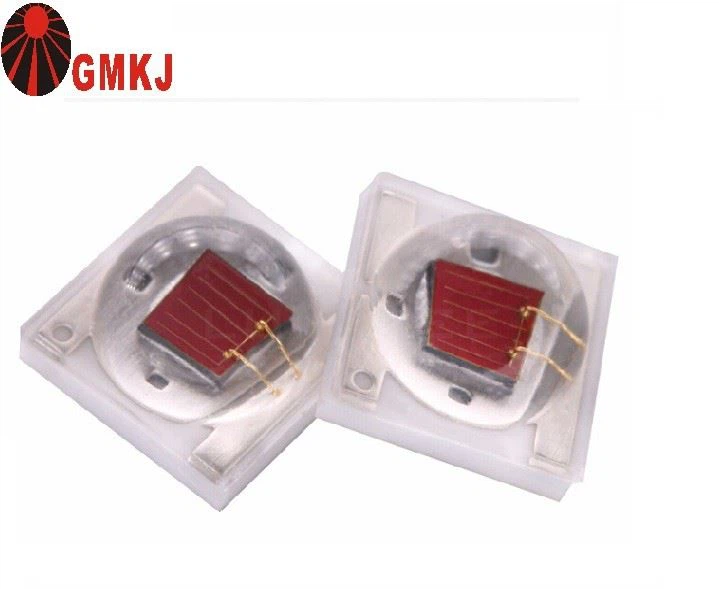

1w 3W Watt Red 660nm LED Chip SMD 3535 Package Dome Lens

1w 3W Watt Red 660nm LED Chip SMD 3535 Package Dome Lens

●Use Original Taiwan Epileds/Epistar chips

●LED Size (L x W x H) in mm:3.5*3.5mm

●Oxide aluminum ceramic base,good heat dissipation.

●Viewing Angle (2θ1/2): Typical 30°,60° ,90°,120°

●Professional for plant grow light, red light therapy.

●Low light decay< 3% over 6000hrs.

●2.32 μmol/s, 3.12 μmol/J @ 350 mA, 25°C

Product Dimension

Product Specification

Absolute Maximum Ratings(At TA =25℃)

Parameter	Symbol	Rating	Units
DC Forward Current	IF	700	m A
Peak pulse Current*	IFP	1000	m A
Reverse Voltage	VR	5	V
Power Dissipation	PD	1.8	W
Operating Temperature Range	TOPR	-30 ~ +75	°C
Storage Temperature Range	TSTG	-40 ~ +85	°C
LED Junction Temperature	TJ	125	°C

Product Application

Deep Red 660nm LED Use for Plant Grow light:

The ABI 660nm deep red grow light is especially beneficial during bloom phase, promoting large bud growth and healthy flowers. 660nm is very close to the absorbance maxima of chlorophyl a. Many LED grow lights are deficient in 660nm red. Use this light to enhance and correct your light spectrum.

Deep Red 660nm LED use for red light therapy:

Benefits of Red Light Therapy

1. Improve joint pain: The deep penetration of far-infrared rays can reach the depths of muscles and joints, warming the body, relaxing muscles, driving the exchange of oxygen and nutrients in the microvascular network, and eliminating fatigue substances and lactic acid and other aging wastes in the body to eliminate internal swelling , The effect of alleviating soreness is excellent.

2. Regulating the autonomic nerve: The autonomic nerve mainly regulates the function of internal organs. People are in a state of anxiety for a long time, and the autonomic nervous system continues to be tense, which can lead to reduced immunity, headache, dizziness, insomnia, and cold limbs. Far-infrared rays can adjust the autonomic nerves to maintain the best state, and the above symptoms can be improved or eliminated.
