High-Power 3W SMD 3535 480nm Cyan-Blue LED for underwater fishing lights
Marine Lighting Background for Underwater Fishing Lamps
Light propagation underwater varies significantly depending on wavelength and water conditions. In coastal and offshore fishery applications, cyan-blue wavelengths around 480nm provide a balanced combination of underwater visibility and optical transmission, making them commonly selected for fishing light and marine illumination systems.
Marine lighting equipment operates in challenging environments, including high humidity, saltwater exposure, and long-duration continuous operation. Therefore, LED components require stable optical output, reliable thermal performance, and long service life to ensure consistent lighting performance.
GMKJ SMD3535 3W 480nm cyan-blue ceramic LED is designed for these demanding marine applications. With excellent thermal conductivity and stable luminous performance, it can be integrated into submersible fishing lamps, vessel underwater lighting systems, aquaculture lighting equipment, and customized marine illumination solutions.
Advantages of 480nm Cyan-Blue Spectrum for Underwater Fishing Lights
Different light wavelengths deliver varying transmission performance inside seawater. Subject to water turbidity, working depth and marine environmental conditions, cyan-blue bands achieve great underwater visibility and match the optical demands of fishery lighting products perfectly.
The 480nm cyan-blue spectrum balances superior seawater penetration and strong biological induction effect. This wavelength is widely adopted for fish-attracting lamps, which demand steady underwater light output for submersible fishing lights, shipboard underwater lighting and aquaculture illumination devices.
Different from ordinary common LEDs, GMKJ SMD3535 3W 480nm ceramic LED keeps fixed spectral performance under long-time continuous working. Benefiting from ceramic packaging's outstanding heat dissipation and stable wavelength output, it is the ideal light source for long-running submersible fish lamps, marine vessel underwater lights and all kinds of ocean lighting systems.
480nm LED Application in Underwater Fishing Lamps

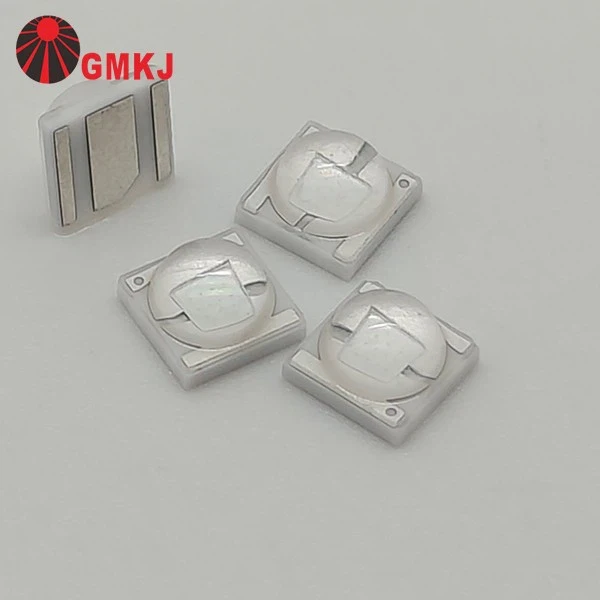

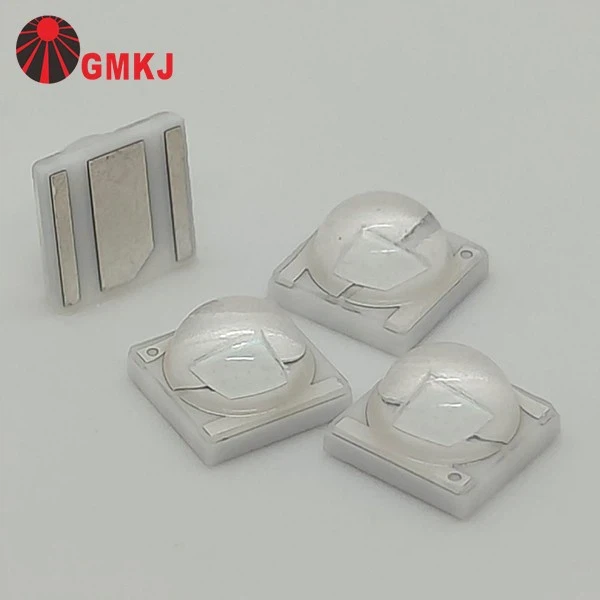

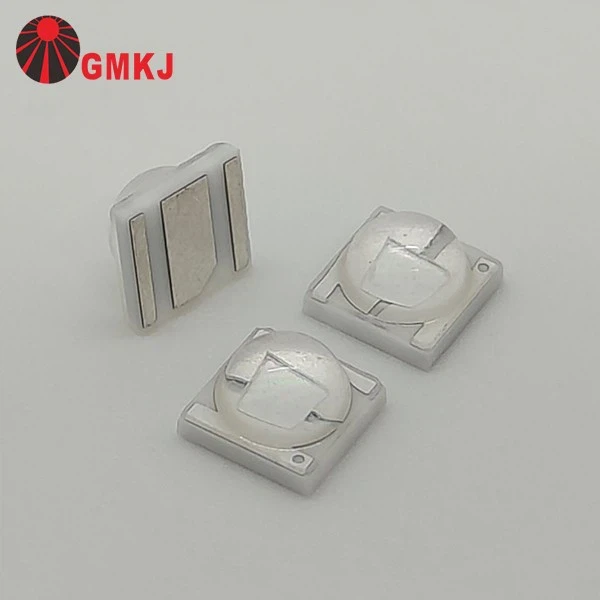

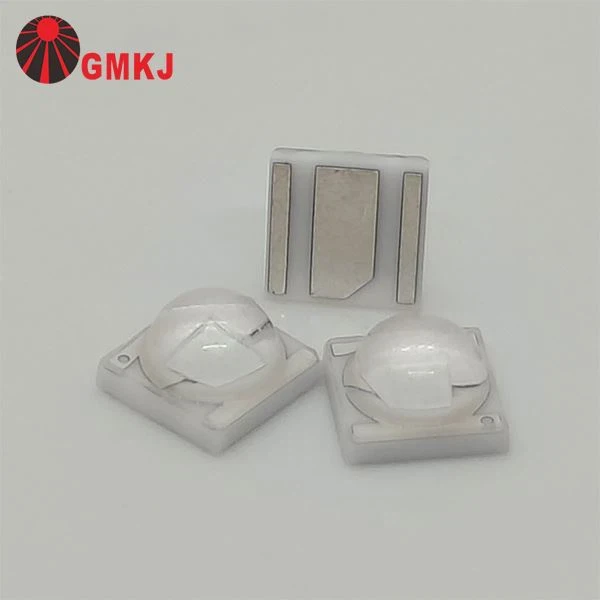

3535 3W 480nm Cyan-Blue Ceramic LED Product Images
SMD3535 3W 480nm Cyan-Blue LED Electrical & Optical Specifications
| Parameters | Specification |
| Part Number | GT-3535B480-1CZ6-G1D5M |
| Emitting colors | Cyan-Blue 480nm |
| Power Rating | 3W |
| Beam angle | 120/90/60/30 |
| Luminous Flux | 90-120lm at 700mA 3v |
| Radiant Flux | 800-1000mW at 700mA |
| Peak wavelength | 477-482nm |
| Dominant Wavelength | 480-485nm |
| Max Forward current | 700mA |
| Applicatiion | Underwater Fishing Lights, Marine Lighting, Aquaculture Lighting |
GMKJ supports customized high-power ceramic LED solutions with different wavelengths, power levels, and package configurations for marine lighting, underwater illumination, and specialized lighting applications.
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=350mA |
2.90 |
-- |
3.30 |
V |
| Forward Voltage |
VF |
IF=700mA |
2.90 |
-- |
3.30 |
V |
|
Luminous Flux |
Φv |
IF=700mA |
90 |
120 |
lm |
|
| Radiant Flux |
Φv |
IF=700mA |
800 |
1000 |
mW |
|
|
Peak wavelength |
λp |
IF=700mA |
477 |
482 |
nm |
|
|
Dominant wavelength
|
λd |
IF=700mA |
480 |
485 |
nm |
|
|
Temperature Coefficient of Forward Voltage |
∆VF/∆T |
IF=700mA |
−− |
-2 |
−− |
mV/°C |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] |
2Θ1/2 |
IF=700mA |
−− |
60 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
°C/ |
Custom 480nm LED Solutions for Marine Lighting Applications
Looking for reliable high-power LEDs for underwater fishing lamps or marine lighting systems?
GMKJ provides customized ceramic LED solutions with flexible wavelength options, including blue, cyan, red, UV, and infrared LEDs. Our high-power LED components are designed for OEM manufacturers developing underwater lighting, fishing lamps, aquaculture illumination, and specialized marine lighting systems.
Contact our technical team to discuss LED specifications, sample evaluation, and customized solutions for your marine lighting projects.
