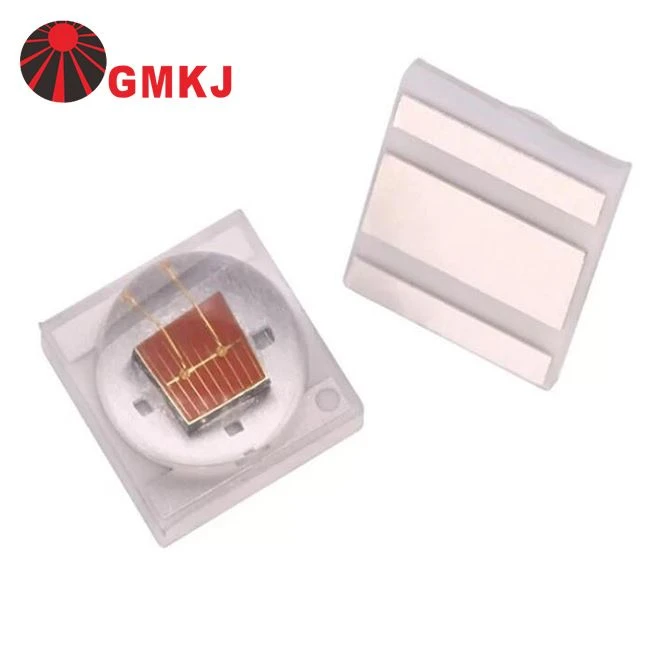

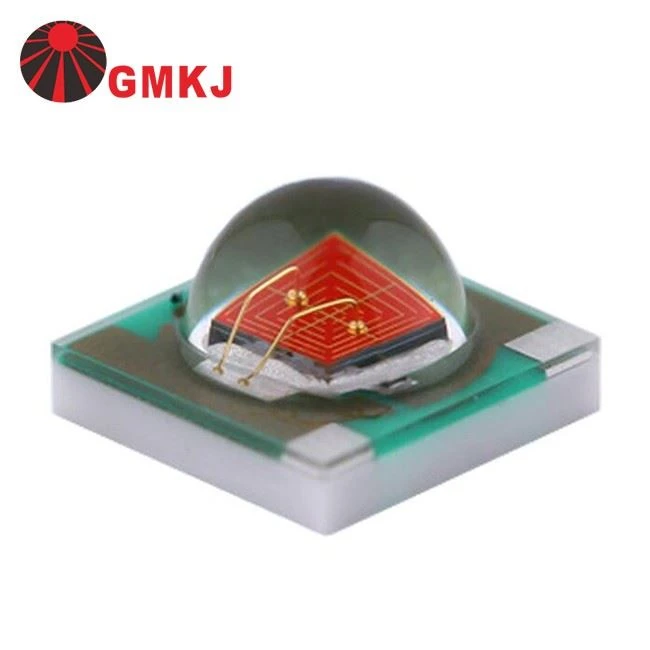

Guangmai Technology is professional in making the 3W Amber Orange color SMD LED Chip 3535 Ceramic Package.
Manufacturing method of LED chip that produces amber light
Amber color is a color between yellow and coffee. It is widely used in automobiles and traffic control fields. For example, the turn signal of a car is generally amber. The "yellow light" in the three-color traffic signal is actually It is also amber.
In order to obtain amber light in the early days, amber LED (light emitting diode) chips were generally used directly to generate amber light. The amber LED chip is made of aluminum gallium indium phosphorous (AlGaInP) crystal. Because this kind of chip does not require phosphor coverage, it is called "direct emission amber LED chip." Amber LED chips made of aluminum gallium indium phosphor crystals have two shortcomings: one is that as the temperature of the heat sink (the temperature of the diode node) increases, the luminous flux of the LED decreases significantly; the other shortcoming is that the operating current reaches a certain value and continues When it increases, the luminous flux no longer increases, and even decreases slightly.
In contrast, blue LED chips made of aluminum gallium nitride (AlGaN) crystals do not have the above two problems. When the temperature of the heat sink increases, the luminous flux of the blue LED chip is almost unaffected; when the operating current increases, the luminous flux also continues to increase. The above difference between aluminum gallium indium phosphorus crystal and aluminum gallium nitride crystal allows us to imagine another scheme for generating amber light, that is, using a blue LED chip made of aluminum gallium nitride crystal as a light pump and covering the LED chip with specific phosphors. (Phosphor) produces amber light.
Regarding the choice of phosphors, some companies currently choose silicate phosphors, such as (Sr,Ba,Ca)3SiO5:Eu2+. The biggest problem with this phosphor is its high sensitivity to high-temperature and high-humidity environments. Under hydrolysis, the luminous efficiency of silicate phosphors is significantly reduced. This will make the final color seriously deviate from the amber range of the target color, and it is impossible to obtain amber light with high purity and high saturation.
Yellow and amber/orange color smd led lighting effect

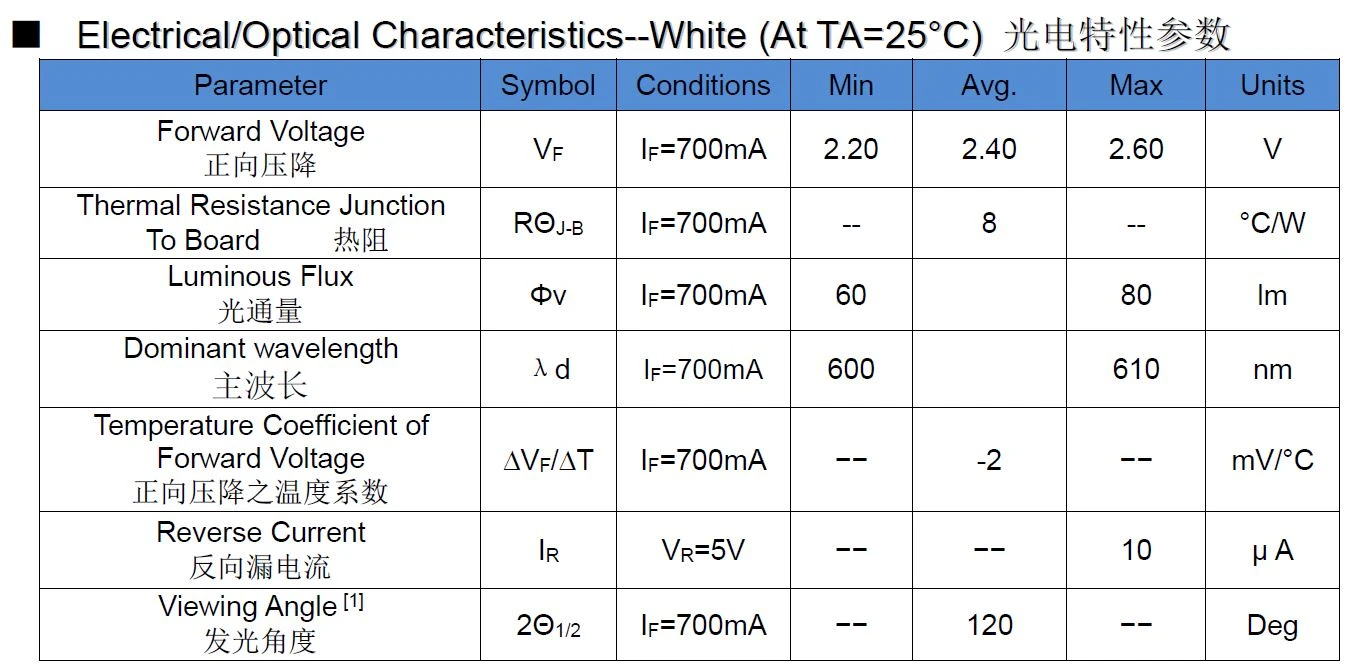

Electrical Specs:
Package Size:

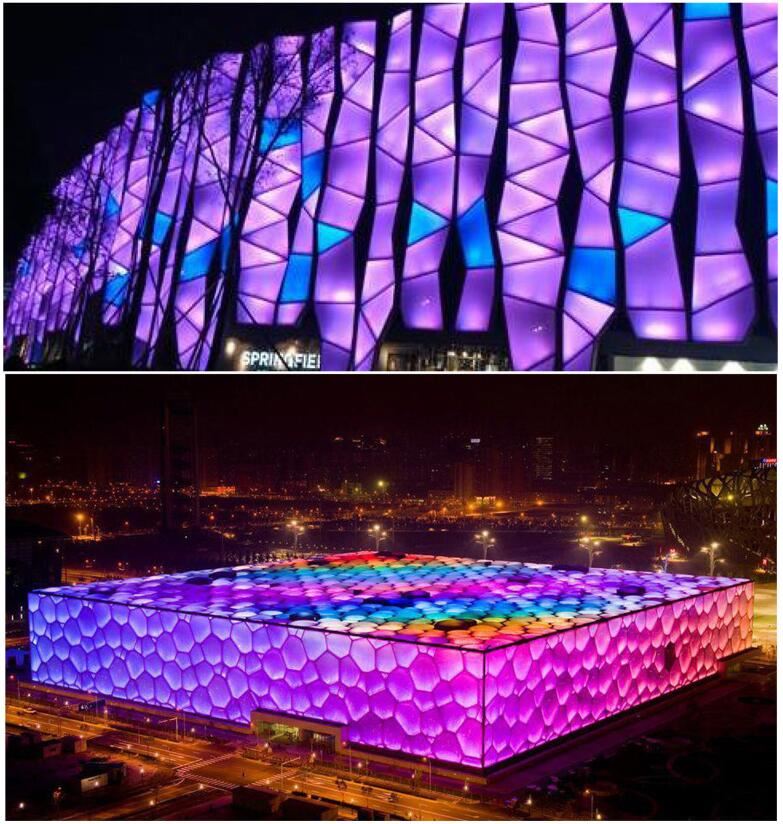

Application
About Guangmai
Shenzhen Guangmai Technology Co., Ltd., founded in 2009, is mainly dedicated to the research and development, production and sales of high-grade light-emitting diode products. After years of ups and downs, the company has now developed into a professional LED company with considerable scale and competitive strength, and has become one of the important LED light source providers in the industry. The factory has internationally advanced ASM complete sets of fully automatic optoelectronic manufacturing equipment and excellent R&D and production teams. The products have passed CE, ROHS and other international certifications. The products are sold at home and abroad, and are widely used in various LED lighting and LED advertising. Modules, UV lighting and other fields. With the rapid development of China’s LED industry today, GMKJ LED adheres to the concept of “quality-oriented, service-oriented” and always adheres to the tenet of “creating opportunities for employees, creating future for enterprises, and creating value for users”. The after-sales service has won the praise of the majority of users.
Datasheet:
For more details, please feel free to contact with Guangmai Tech directly.
You can download the datasheet of 3W Amber Orange color SMD LED Chip 3535 Ceramic Package from the head of this page.
