470nm 480nm Blue 3535 SMD LED Specs
| Product name | 470nm 480nm Blue 3535 SMD LED |
| Part number | GT-3535B480-1CZ0-G1D5M |
| Chips brand | China Sanan chips or Taiwan Epileds chips inside |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
2.8-3.4vdc for blue IFmax 700mA |
| Luminous/ Radiant Flux |
470-475nm Ion blue: 60-80 lm at 700mA 480-485nm Ice blue: 80-100lm at 700mA |
| Lighting Efficiency |
Around 40 LM/W |
| Wavelength/Color |
470-475nm Ion blue 480-485nm Ice blue Both wavelength available here |
| Power |
3 Watt, IFmax 700mA |
| Package material |
AL2O3 ceramic, 3.5x3.5 mm size smd led |
| Lighting angle |
120 degree lighting angle, silicone lens, regular one
We have also other narrow lighting angle available here: 30 degree/ 60 degree/ 90 degree |
| Price | Please contact with GMKJ for the Price |
| Min order quantity |
Depends on the stock availablity: If we have ready to ship stock, then even 100 pcs with samples test purpose is acceptable here. If no stock, then we need min order quantity with at least 3,000 pcs with 3 rolls package. |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

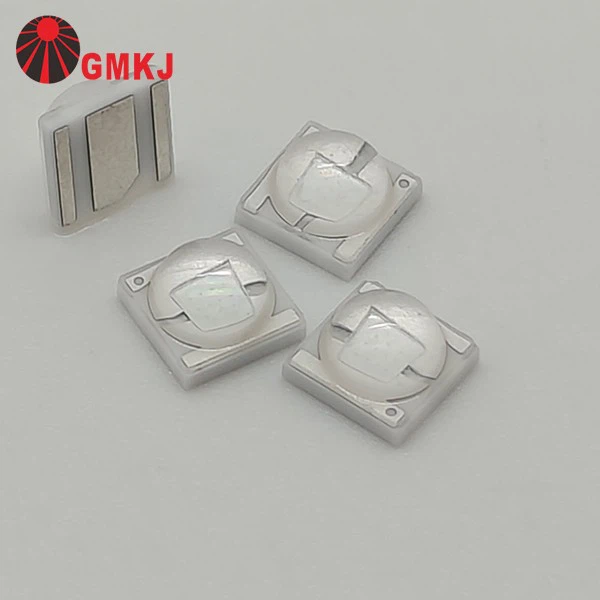

470nm 480nm Blue 3535 SMD LED picture
 |
 |
|

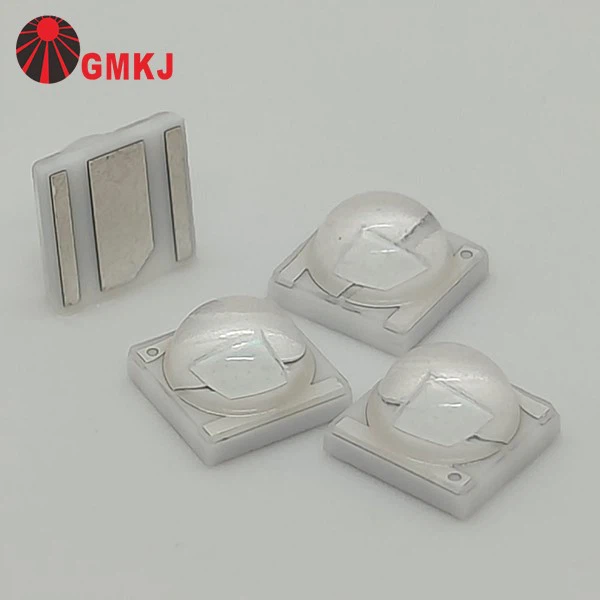

450-455nm royal blue 3535 smd leds; 460-465nm blue 3535 smd leds; 470-475nm ion blue 3535 smd leds; 480-485nm ice blue 3535 smd leds; 490-495nm cyan 3535 smd leds; 500-510nm light green 3535 smd leds; 520-530nm green 3535 smd leds; |

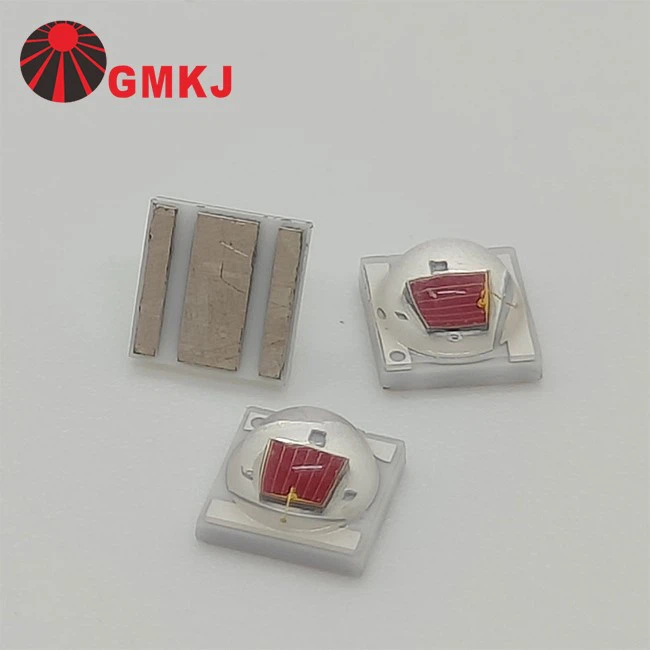

Amber 590-595nm 3535 smd leds; Orange 600-610nm 3535 smd leds; Red 620-630nm 3535 smd leds; Deep red 660-665nm 3535 smd leds; |
470-475nm ion blue and 480-485nm ice blue leds lighting on color difference can be seen from below LED pictures:
Aluminum LED PCBA Assembled by GMKJ (PCB drawing and BOM provided by our clients)

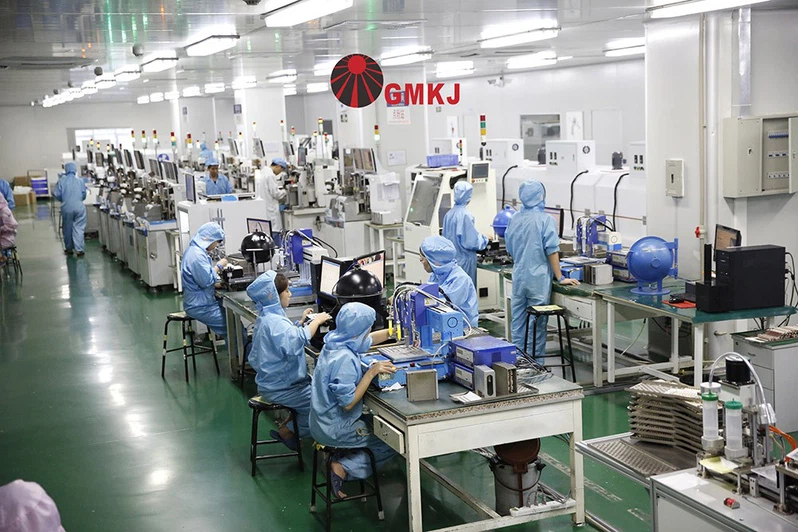

GMKJ has our self-own SMT LED pcb board assembly line, including automatic picking and placing machine, automatic soldering paste applying machine, high temperature reflow oven.
We are able to do the LED pcb board assembly for our clients if they are able to provide us the pcb boards drawing and pcb board BOM list.
470nm 480nm Blue 3535 SMD LED Dimension
470nm 480nm Blue 3535 SMD LED Electrical Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=700mA |
3.00 |
-- |
3.40 |
V |
|
Luminous Flux |
Φv |
IF=700mA |
80 |
-- |
100 |
lm |
|
Dominant wavelength |
λd |
IF=700mA |
480 |
-- |
485 |
nm |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
°C/W |
About GMKJ LEDs
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
We are always here for you!
