Red Blue 3535 SMD LED for Police Strobe Light Specs
| Product name | Red Blue 3535 SMD LED for Police Strobe Light |
| Part number | GT-3535B46R62-2BC0-S1C8M |
| Chips brand | China Sanan chips |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
2-2.6vdc for red 620-630nm with IFmax 700mA 2.8-3.2vdc for blue 460-470nm with IFmax 700mA |
| Luminous/ Radiant Flux |
Red 620-630nm: 100-120lm at 700mA Blue 460-470nm: 50-60lm at 700mA |
| Lighting Efficiency |
Infrared is not visiable light. So it is meaningless to say LM/W like this way. |
| Wavelength/Color |
Red color 620-630nm Blue color 460-470nm |
| Power |
2x 3 Watt, each color max 700mA |
| Package material |
AL2O3 ceramic, 3.5x3.5 mm size smd led |
| Lighting angle |
120 degree lighting angle, silicone lens, regular one
We have also other narrow lighting angle available here: 30 degree/ 60 degree/ 90 degree |
| Price | Please contact with GMKJ for the Price |
| Min order quantity |
Depends on the stock availablity: If we have ready to ship stock, then even 100 pcs with samples test purpose is acceptable here. If no stock, then we need min order quantity with at least 4,000 pcs with 4 rolls package. |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

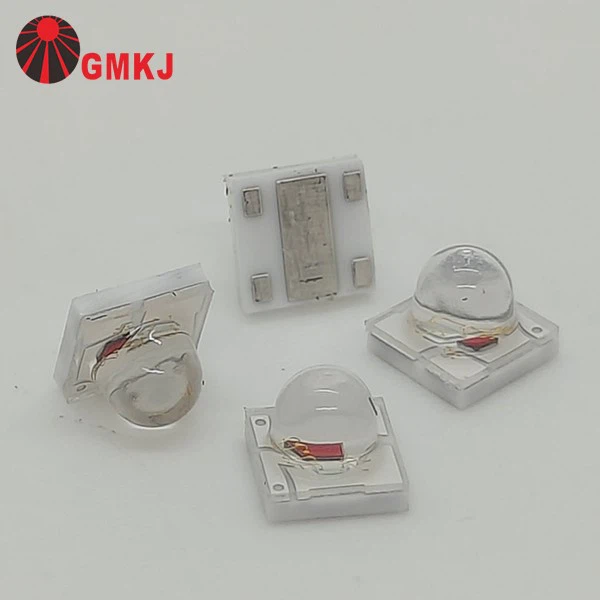

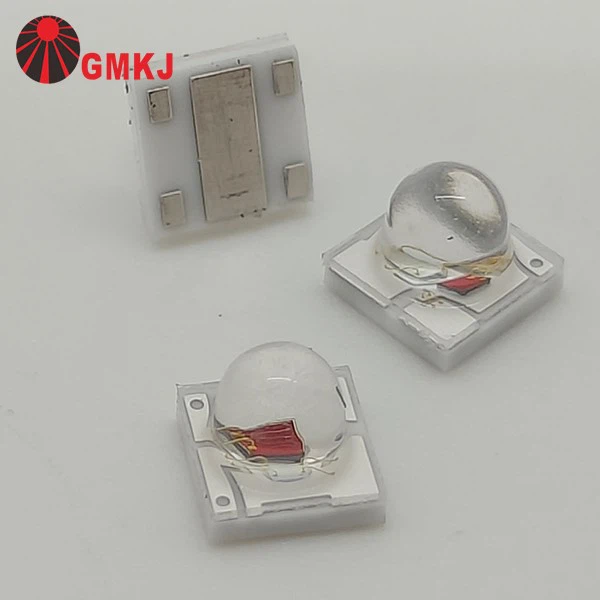

Red Blue 3535 SMD LED for Police Strobe Light picture
 |
 |
|
Dual color 3535 smd leds red and blue for police/ambulance car strobe lights |
4 colors 5050 smd leds red,blue,amber and white colors inside for police/ambulance strobe lights |
Aluminum LED PCBA Assembled by GMKJ (PCB drawing and BOM provided by our clients)
GMKJ has our self-own SMT LED pcb board assembly line, including automatic picking and placing machine, automatic soldering paste applying machine, high temperature reflow oven.
We are able to do the LED pcb board assembly for our clients if they are able to provide us the pcb boards drawing and pcb board BOM list.
Red Blue 3535 SMD LED for Police Strobe Light Dimension
Red Blue 3535 SMD LED for Police Strobe Light Electrical Specs
|
Parameter |
Symbol |
Conditions |
Color |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=700mA |
B |
2.80 |
-- |
3.20 |
V |
|
IF=700mA |
R |
2.20 |
-- |
2.60 |
|||
|
Luminous Flux |
Φv |
IF=700mA |
B |
60 |
-- |
80 |
lm |
|
IF=700mA |
R |
110 |
-- |
130 |
|||
|
Dominant wavelength |
λd |
IF=700mA |
B |
460 |
-- |
470 |
nm |
|
IF=700mA |
R |
620 |
-- |
630 |
|||
|
Reverse Current |
IR |
VR=5V |
B/R |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] |
2Θ1/2 |
IF=700mA |
B/R |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
B/R |
-- |
6.5 |
-- |
°C/W |
Why 3535 SMD LEDs Are Ideal for Police Strobe Lights?
Why 3535 SMD LEDs Are Ideal for Police Strobe Lights?
1. Excellent Thermal Performance (Ceramic Package)
3535 SMD LEDs typically use a ceramic package, which offers superior thermal conductivity compared to standard plastic packages. This helps maintain a lower junction temperature, ensuring better stability, longer lifespan, and consistent performance-especially critical for high-frequency strobe applications.
2. High Brightness with Integrated Silicone Lens
The 3535 LED comes with a built-in silicone dome lens, which enhances light output and improves optical efficiency. In addition, multiple beam angles are available, allowing customers to achieve desired light distribution without the need for secondary optics. This significantly reduces design complexity and additional lens costs, especially in compact and narrow-angle applications.
3. Higher Driving Current and Power Capability
Compared to standard SMD LEDs, 3535 LEDs can handle higher driving currents, enabling higher power output. This results in significantly greater brightness, making them ideal for high-visibility applications such as police and emergency strobe lighting.
4. Cost Advantage Amid Rising Material Prices
With the increasing cost of gold and copper in recent years, ceramic-based 3535 LEDs offer a more cost-effective solution. Their material structure reduces dependency on these expensive metals, helping customers maintain competitive pricing without sacrificing performance.
5. Compact Size with SMT Compatibility
The 3535 package is compact and supplied in tape-and-reel packaging, fully compatible with automated SMT placement machines. It supports lead-free reflow soldering processes, improving production efficiency and reducing manufacturing costs. Additionally, the small size helps lower shipping costs due to higher packing density.
6. Compatibility with Leading Global Brands
3535 LEDs are widely used and standardized across the industry. They are compatible with major international brands such as Samsung Electronics, Cree LED, and OSRAM. Our 3535 LEDs can serve as a reliable alternative, offering comparable brightness, quality, and performance-while providing a more competitive cost.
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
