Red 660nm Smd Led 3030 For Horticulture Lighting
video

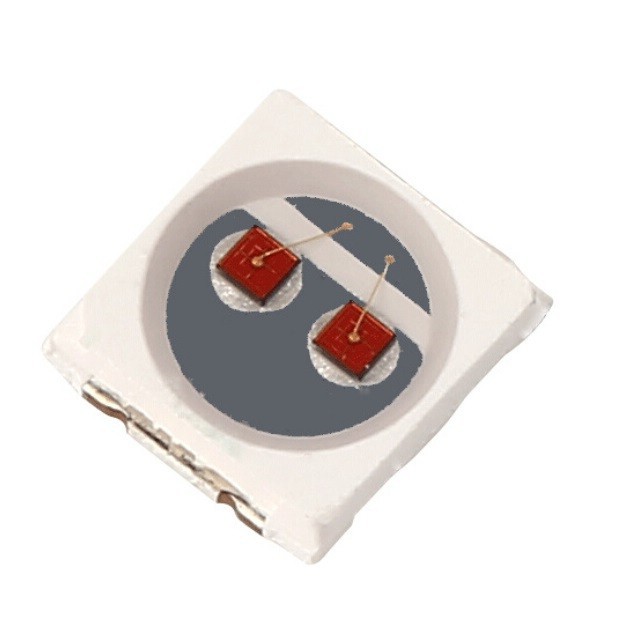

Red 660nm Smd Led 3030 For Horticulture Lighting

Item Name: 1W SMD 3030 LED Deep red 660nm
Model Number: GE-3030R6-10040-G42M
Input Current:350mA
Power Consumption: 1W Input Voltage:2-2.4VDC
LED package type:SMD 3030
Chips brand: Taiwan Epileds Chips
Peak Wavelength:650-660nm
Application:Plant growing
Working Time (hours):50000
Size:3.0mm*3.0mm*0.6mm(L*W*H)
Viewing Angle(°):90, 120 Degree
Photosynthetic Photon Flux(PPF):0.3umol/s
Efficiency of PPF: 2.2umol/j

Send Inquiry
  • Description

    Product Features:


    1. PCT/ EMC 3030 Package type available.

    2. Use Original EPISTAR/EPILEDS Chips only

    3. High PPE efficiency up to 2.8umol/j

    4. Precise wavelength to minimum 2nm.

    5. Long life Span over 50000Hrs .

    6. Long Quality Guarantee over 4 years maximum

    7. LED Packaging experience over 12 years.

    8. Fast delivery time 3-7 workdays depends on order.

    9. Provide 7x 24 Hrs Technical service.


    Why LED grow lights are more popular than other grow lights?


    HID, CFL and LED plant growth lights can well maintain and promote the growth of indoor plants. In this case, why choose LED grow lights instead of CFL or HID?


    The fact is that, compared with the other two options, LED grow lights have many advantages.


    1. Full spectrum light is best

    Although both CFL and HID growth lamps provide light in the PAR range of the electromagnetic spectrum, a bulb can only emit a specific wavelength of light. Unfortunately, different colors are more effective for different plant growth stages. This means that when using CFL or HID, indoor gardeners will most likely have to purchase two or more different plant growth lights.

    On the other hand, LED plant lights can provide one color in the spectrum, or consumers can also buy those with full electromagnetic spectrum colors. These are called full-spectrum LED plant growth lights.


    2. As we all know, LED can emit more light and consume less power.

    This means that compared to CFL and HID bulbs, LED grow lights are very energy-efficient and have a longer lifespan.


    3. LED provides a safe grow light option; especially around the house.

    Compared with HID or CFL grow lights, they are also different because LEDs generate electricity through the circuit-no gas, mercury, lead or any other harmful elements are required.

    Unfortunately, if the CFL and HID lights are hit or dropped from a height, it is likely to break. This poses a huge health risk, because breaking the bulbs of these two lamps can cause the release of dangerous gases. Therefore, LED plant growth lights are the safest choice for home indoor gardens.


    4. Cost-effective setup

    Although LED grow lights are usually the more expensive option, the total price of the entire installation may actually be cheaper than systems using CFL or HID. This is because CFL and HID grow lights actually need a ballast to control the current of the bulb, and a reflector, because the emitted light is often wasted and needs to be reflected on the plants. The most important thing is that, as we all know, these two kinds of plant growth lights have a short lifespan, and need to be replaced more frequently than LED plant growth lights.

    QQ20210331151426

    red 660nm led

    LEDs for Horticulture Lighting


    Optimizing LED lighting for the horticulture industry is still in its infancy. An optimal strategy for using high-quality LED lighting in horticulture would be to select the best spectra for a specific crop or cultivar, one that offers improved quality in the most energy-efficient way. Photosynthetic responses are generally similar among the various types of plants, at least when considering quantum yield, while a morphological response seems to be more species- and cultivar-specific

    deep red led 660nm

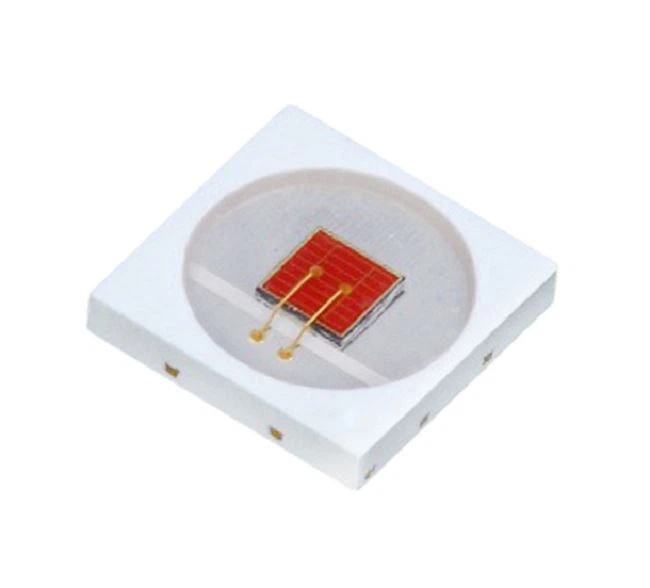

    3535 Red 660nm LED picture:

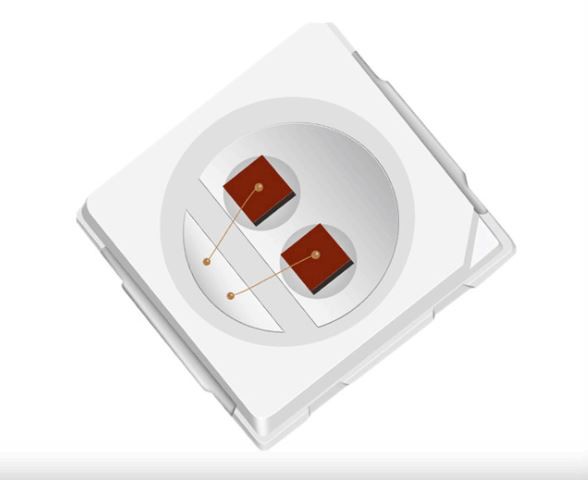

    3030 LED 8


    Package dimensions:

    3030 LED SIZE


    About GMKJ:

    company  view


    Established in 2009, Shenzhen Guangmai Electronics Co.,Ltd has developed to one of the top 10 LED manufacturers as well as comprehensive led solution provider.So far, GMKJ owns 20 complete production lines, including SMD package (from Die Bonding to Glue dispenser and phosphors), SMT and R&D line, with production capability of 300kk/month.


    All these insure us to provide valued customers with superior quality and competitive offers.Most of our LEDS are certified by LM80/IEC62471/ROHS/REACH/SGS certificates.Our Product lines are specified as below:-LED for Plant growth1.SMD series:2835/5730/3030/5050/35352. High power led/customized COB/customized integration3. LED of Single wavelength: 265nm~950nm, for option4. Full spectrum series-Commercial lighting: SMD Series:2835/5730/3030/3014/4014/5050/3528/3535-Indicating LED: 0603/1206/0805/0402/1615/0606-UV LED

    7

    For more details about 1W SMD 3030 LED Deep red 660nm, please contact with us directly!
