Phosphor Converted Amber 3030 SMD LED 1W 6V Specs
| Product name | Phosphor Converted Amber 3030 SMD LED 1W 6V |
| Part number | GC-3030Y590-2CZ-S1A7C4 |
| Chips brand | China Sanan 1734mil, 2 chips inside in series |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
5.8-6.2vdc IF 150mA |
| Luminous/ Radiant Flux |
100-120lm at 150mA |
| Lighting Efficiency |
Around 120-140 lm/w at 150mA with 1 Watt |
| Wavelength/Color |
Phosphor converted amber 590-595nm, around 1800K color temperature Phosphor Coated amber color made from blue color chips inside |
| Power |
1 Watt |
| Package material |
PCT material |
| Lighting angle |
120 degree lighting angle, flat pkg without dome silicone lens |
| Price | Please contact with GMKJ Sales team for the Price |
| Warranty | 3-4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

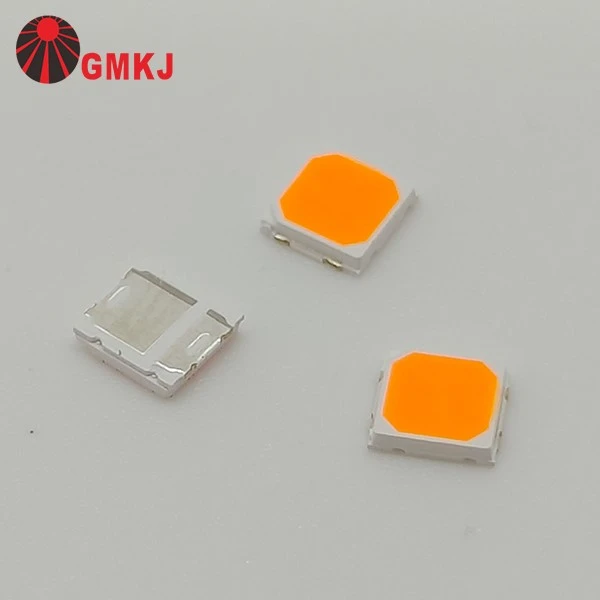

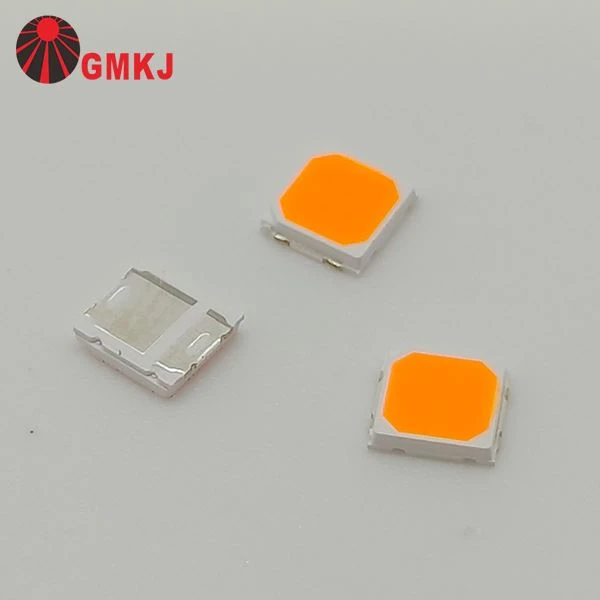

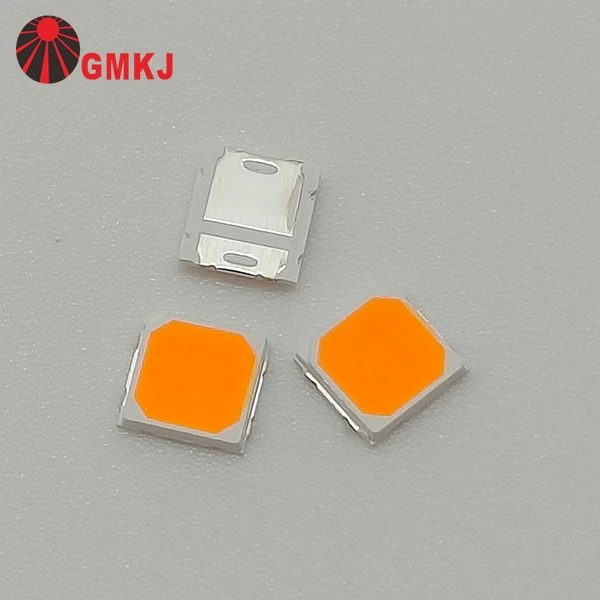

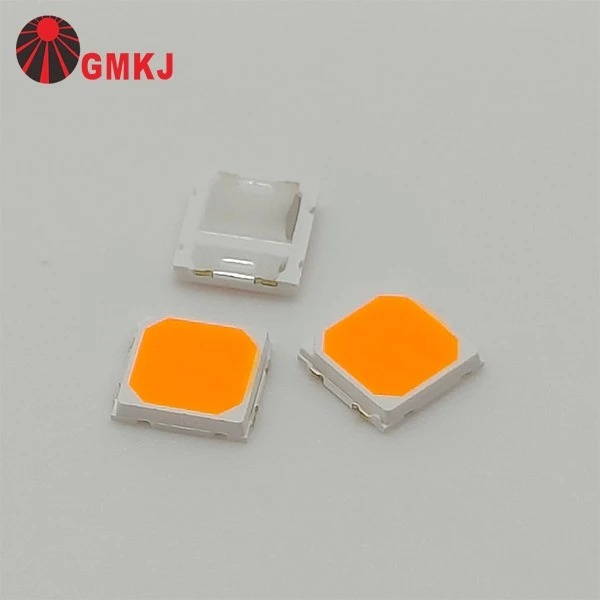

Phosphor Converted Amber 3030 SMD LED 1W 6V picture
What we are making now for 3030 smd leds:
 |
 |
|
PCT 3030 smd leds in white color
|
EMC 3030 smd leds in white color |
 |
 |
| 3030 smd leds with phosphor converted red color |
3030 smd leds chip color green 525nm 3030 smd leds chip color blue 460nm |
Phosphor Converted Amber 3030 SMD LED 1W 6V Dimension
Phosphor Converted Amber 3030 SMD LED 1W 6V Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=150mA |
5.80 |
-- |
6.40 |
V |
|
Luminous Flux |
Φv |
IF=150mA |
100 |
120 |
lm |
|
|
Dominant wavelength |
λd |
IF=150mA |
590 |
595 |
nm |
|
|
Temperature Coefficient of Forward Voltage |
∆VF/∆T |
IF=150mA |
−− |
-2 |
−− |
mV/°C |
|
Reverse Current |
IR |
VR=10V |
−− |
−− |
10 |
μ A |
|
Thermal Resistance Junction To Soldering Pad |
RΘJ-S |
IF=150mA |
-- |
8 |
-- |
°C/W |
|
Viewing Angle [1] |
2Θ1/2 |
IF=150mA |
−− |
120 |
−− |
Deg |
3030 smd leds amber color test report at 1W 6vdc 150mA:
3030 smd leds amber color lightin on color (Right side one, not left side one):
About GMKJ
Guangmai Technology is a professional LED manufacturer established in 2009, specializing in LED packaging and custom LED solutions.
Our main products include SMD LEDs, High Power LEDs, COB LEDs, UV LEDs, IR LEDs, VCSELs, and ceramic substrate LEDs. We offer wavelengths from 200nm to 3000nm for applications such as horticulture lighting, medical devices, industrial curing, machine vision, security, and scientific research.
With advanced production equipment, strict quality control, and experienced engineering support, we provide reliable products and customized solutions to customers in more than 50 countries worldwide.
We are committed to delivering high-quality LED products, competitive pricing, and professional service to our global partners.
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
We are always here for you!
