6065 RGBW LED 60W High Power 4-in-1 LED For Moving Head Stage Lighting

GMKJ 6065 RGBW LED 60W is a high-power 4-in-1 ceramic packaged light source designed for professional stage lighting, moving head fixtures, and LED wash bar lighting applications. Combining Red, Green, Blue, and White channels within the compact 6065 package, this RGBW LED supports independent channel control, high optical output, and smooth color mixing performance for dynamic entertainment lighting systems. With a total maximum power of 60W and up to 15W per individual channel, the LED delivers strong brightness performance while maintaining reliable thermal management. Advanced ceramic packaging technology enables efficient heat dissipation and stable optical output during long-duration operation. It is an ideal LED component for mini moving head lights, LED wash bars, DJ club effect lighting, theater color wash fixtures, and professional event lighting equipment. GMKJ provides customized high-power RGB, RGBW, RGBA, RGBWW, and multi-color LED solutions with flexible wavelength and power configurations. We support OEM lighting manufacturers with reliable LED components for professional stage and entertainment lighting product development.

6065 RGBW LED 60W High Power 4-in-1 Ceramic LED for Stage Lighting Applications

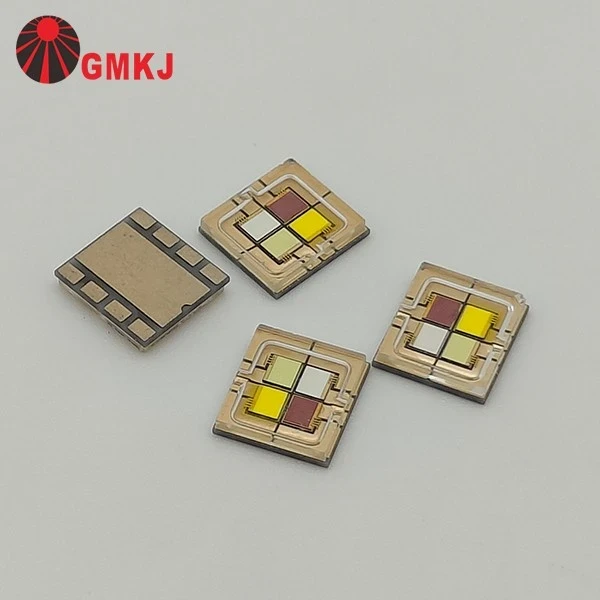

6065 RGBW LED Package Images

6060 RGBW LED

6065 RGBW dimension

BLUE TEST

GREEN TEST

RED TEST

WHITE TEST

Independent Channel Parameters

Parameter	Specification
Part Number	GDY-6065RGBW-4BC-S1E7F3B
Peak Wavelength	R620-630nm,G520-530nm,B 455-470nm W 6000-7000K
Power rating	15w*4 at 5000mA
Package Type	6065 Ceramic package
Viewing Angle	120 beam angle
Forward Voltage	R2.0-2.6V/G3.0-3.6v/B 3.0-3.6V/W 3.0-3.6V
Forward Current	Each Channel 5000mA
Material	Aluminum Substrate Quartz glass lens
Applications	professional stage lighting, moving head fixtures, and LED wash bar lighting applications.
Luminous Flux	R 500-700lm,G 900-1100lm,B 150-350lm,W1200-1400lm

The following electrical values represent typical operating conditions.

Parameter	Symbol	Conditions	Emitting Color	Min	Avg.	Max	Units
Forward Voltage (Vf)	V_F	I_F=5000mA	R	2.4	--	3.00	V
Forward Voltage (Vf)	V_F	I_F=5000mA	G	3.00	--	3.60	V
Forward Voltage (Vf)	V_F	I_F=5000mA	B	3.00	--	3.60	V
Forward Voltage (Vf)	V_F	I_F=5000mA	W	3.00	--	3.60	V
Thermal Resistance Junction To Board (热阻)	RΘ_J-B	I_F=5000mA		--	1.0	--	°C/W
Luminous Flux (流明)	Φe	I_F=5000mA	R	500	--	700	LM
Luminous Flux (流明)	Φe	I_F=5000mA	G	900	--	1100	LM
Luminous Flux (流明)	Φe	I_F=5000mA	B	150	--	350	LM
Luminous Flux (流明)	Φe	I_F=5000mA	W	1200	--	1400	LM
Peak wavelength (峰值波长)	λp	I_F=5000mA	R	620	--	630	nm
Peak wavelength (峰值波长)	λp	I_F=5000mA	G	520	--	530	nm
Peak wavelength (峰值波长)	λp	I_F=5000mA	B	450	--	460	nm
Peak wavelength (峰值波长)	λp	I_F=5000mA	W	6000	--	7000	K
Temperature Coefficient of Forward Voltage (正向压降之温度系数)	∆V_F/∆T	I_F=5000mA		−−	--	−−	mV/°C
Reverse Current (反向漏电流)	I_R	V_R=5V		−−	−−	10	μ A
Viewing Angle^[1] (发光角度)	2Θ_1/2	I_F=5000mA		−−	120	−−	Deg

Applications in Moving Head and Entertainment Lighting

stage light

wash bar
