Products Description
4in1 0.5W 1W 2W 5050 5054 RGBW SMD LED Chip Specs:
| Product name | 4in1 0.5W 1W 2W 5050 5054 RGBW SMD LED Chip |
| Part number |
4*0.06W part number: GS-5054RGBW-4BC-20MA 4*0.2W part number: GS-5054RGBW-4G1W-NWN 4*0.5W part number: GS-5054RGBW-4G2W-NWN |
| Chips brand | China Sanan chips with good quality |
| Input |
Red with 2-2.4vdc; Green, blue and white with 2.8-3.2vdc; 4*0.06W with each color 20mA; 4*0.2W with each color 60mA; 4*0.5W with each color 150mA; |
| Flux |
4*0.2W Flux details: Red: 8-10lm; Green: 15-20lm; Blue: 4-6lm; White: 24-28lm |
| Warranty | 4 years long time fully guaranteed |
| Color |
Red: 620-630nm; Green: 520-530nm; Blue: 450-465nm; Whiite available with: 1. 2700K, 3000K, 4000K, 5000K and 6500K; 2. Ra>70 and Ra>80 or even Ra>90 available here |
| Power |
4*0.06W Watt with each color 20mA; 4*0.2W Watt with each color 60mA; 4*0.5W Watt with each color 150mA; |
| Package material |
PCT 5050/5054 package |
| Lighting angle |
120 degree |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 3 years |
| OEM service |
1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here. |

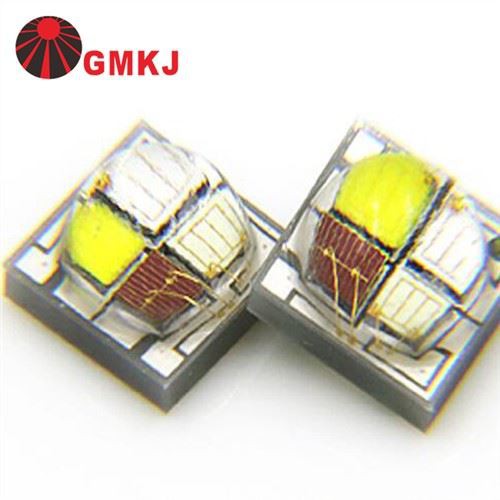

4in1 0.5W 1W 2W 5050 5054 RGBW SMD LED Chip picture:
4in1 0.5W 1W 2W 5050 5054 RGBW SMD LED Chip dimensions:
4in1 1W 5050 5054 RGBW SMD LED Chip Eletrical specs:
|
Parameter |
Symbol |
Conditions |
Emitting Color |
Values |
Units |
||
|
Min |
Avg. |
Max |
|||||
|
Forward Voltage |
VF |
IF=60mA |
R |
2.00 |
-- |
2.40 |
V |
|
G |
2.80 |
-- |
3.20 |
||||
|
B |
2.80 |
-- |
3.20 |
||||
|
W |
2.80 |
-- |
3.20 |
||||
|
Luminous Flux |
Φv |
IF=60mA |
R |
8 |
-- |
10 |
lm |
|
G |
15 |
-- |
20 |
||||
|
B |
4 |
-- |
6 |
||||
|
W |
24 |
-- |
28 |
||||
|
Dominant wavelength |
λd |
IF=60mA |
R |
620 |
-- |
630 |
nm |
|
G |
520 |
-- |
530 |
||||
|
B |
455 |
-- |
465 |
||||
|
Color Temperature |
CCT |
IF=60mA |
W6 |
6000 |
-- |
6500 |
K |
|
W3 |
2800 |
-- |
3200 |
||||
|
CRI |
Ra |
IF=60mA |
W |
70 |
-- |
-- |
|
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=60mA |
−− |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=60mA |
−− |
-- |
8 |
-- |
°C/W |
Application
4in1 0.5W 1W 2W 5050 5054 RGBW SMD LED Chip applications
4in1 0.5W 1W 2W 5050 5054 RGBW SMD LED Chip is mainly used for LED Wall washer lights, LED fountain lights and LED RGB underwater lights and other applications.
