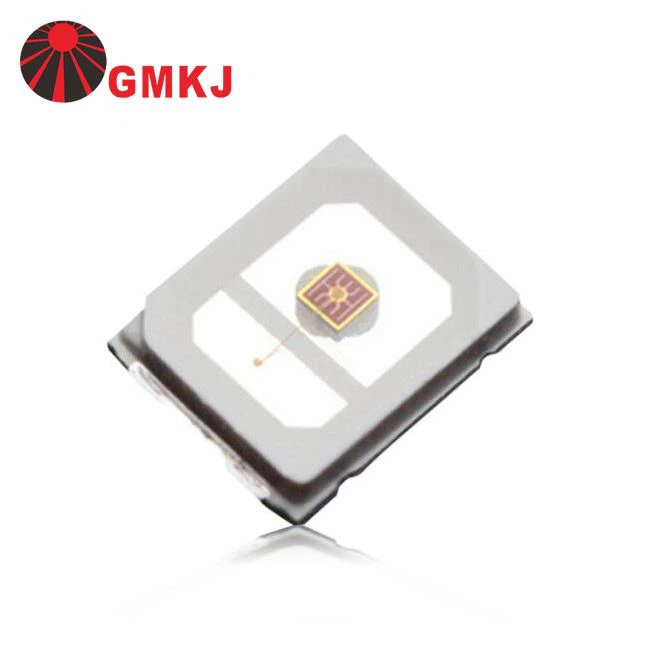

Guangmai Technology is professional in making the smd uv led chip 0.2w 0.5w 1w 60mA 150mA 350mA.
UVA LED:
Curing Printing, Beauty Nail, Insect Trap, Jewelry Detection, Inspection, Plant Growth 320-420 nm Also known as UVA
UVB LED:
Medical phototherapy, animal husbandry, plant growth 275315nm. also known as UVB
UVC LED:
Sterilization, food preservation, air purification, water purification
200-275nm, also known as UVC
| Color | Power | CCT /WLD | Voltage(VF) | Current(mA) | LM/MCD |
| White | 0.2w, 0.5W | 2600k- 20000k | 3.0-3.4V | 60mA150mA | 26-85LM |
| Red | 0.2W, 0.5W | 620-625nm625-630nm | 2.0-2.4V | 60mA150mA | 6-9Lm20-25lm |
| Plant Grow Red | 0.2w | 640-650nm650-650nm | 2.0-2.4V | 60mA | 3-5lm |
| Yellow | 0.2w, 0.5W | 590-595nm595-600nm | 2.0-2.4v | 60mA150mA | 6-8lm18-25lm |
| Green | 0.2w,0.5w | 520-525nm525-530nm | 3.0-3.4v | 60mA150mA | 10-12lm30-35lm |
| Blue | 0.2W,0.5W | 460-465nm465-470nm | 3.0-3.4V | 60mA150mA | 3-5lm12-14lm |
| UV | 0.2W | 390-395nm395-400nm | 3.0-3.4V | 60mA | |
| Pink | 0.2w | Pink | 3.0-3.4v | 60mA | 14-16lm |
| Ice Blue | 0.2w | Ice Blue | 3.0-3.4v | 60mA | 15-17lm |
| Pink Purple | Pink Purple | Pink Purple | 3.0-3.4v | 60mA | 8-10lm |
| Amber/gold yellow | Amber/gold yellow | Amber/gold yellow | 60mA | 15-20lm |
2835 Series-High Voltage Series
| Voltage | Power | Current | Brightness |
| 6V | 0.5W | 90mA | 65-70lm |
| 6V | 1W | 150mA | 120-130lm130-140lm |
| 9V | 0.5W | 60mA | 65-70lm |
| 9V | 1W | 100mA | 120-130lm |
| 9V | 1-1.5w | 100-150mA | 120-130lm165-175lm |
| 18v | 0.5W | 30mA | 65-70lm |
| 18V | 1W | 60mA | 120-130lm |
| 36V | 1W | 30mA | 120-130lm |
| Effect | Power | Wavelength | Current | Brightness |
| Full Spectrum | 0.2w | #1 to #7 , Sunlight,No Blue protect Led | 60mA | 10-26lm |
| Full Spectrum | 0.5W | 150mA | 16-65lm | |
| High Efficiency | 0.1w | 2700-7000K | 30mA | 220-230lm/w |
Remark:
(1) All the products in the list are in stock and support sample orders.
(2) In addition to the list, we also accept customization.
smd uv led chip 0.2w 0.5w 1w 60mA 150mA 350mA specifications:
Notes:
1,All dimensions are in millimeters.
2,Tolerance is ±0.1mm unless otherwise noted.
0.5W 365-375NM specs:
0.5w 395-405nm specs:
smd uv led chip 0.2w 0.5w 1w 60mA 150mA 350mA application
1. UV printing is a printing process that dries and cures ink by UV light. An ink containing a photosensitizer is required to work with a uv curing lamp For high-end business card boutique packaging, high-end commercial album, special desk calendar, special label printing and other product areas
2. UV curing refers to the UV light irradiation, the photo-initiator absorbs photons of a specific wavelength, excited to the excited state, the formation of free radicals or cations, and then hrough the transter of energy between molecules, the polymerizable prepolymer and the photosensitive monomer Etc become excited state, resulting in charge transfer complex these complexes continue to cross-link polymerization, in a very short period of time to pro duce three-dimensional network structure of polymers to achieve curing effect within seconds.
3. At present, UV curing light source used in industry is usually high-pressure mercury lamp High-pressure mercury lamp can produce characteristic ultraviolet light, visible light and infrared light with strong radiation such as 310nm, 365nm and 410nm.The wavelength with 365nm as the main peak is commonly used in various countries in the world for curing Dry band
Our Advantage: Own the LED special dust-free, anti-static workshop.Formed a number of world-class United States ASM automaticmachine crystalline solid,ASM automatic soldering machines, H120 automatic LED light colour scanner 100% sure our quality is best.
Shipping ways
We can ship by Courier Service such as Fedex, DHL, TNT, UPS EMS …etc.
Also, Air Freight and Sea Freight depends on clients needs.
Payment methods:
We accept official Bank Wire transfer and for sample amount payment customer can use
Paypal, Western Union, Alipay and Ecrow …etc.
FAQ:
1. Q:Could I place the sample order for further checking before mass production?
A:Absolutely and welcome to take the samples for testing first.
2. Q:How is the leading time for orders?
A:The sample could be finished within 3-5 days,and normally the mass production could be finished within 7 days,it depends on the quantity as well.
3. Q:How do you ship the goods to us?
A:Basially,We would ship the goods via Express like UPS/DHL/Fedex etc,and it would take around 3-5 days.With large quantity,we suggest to send them by sea,and it would take around 15-20 days.
4. Q:How is the warranty?
A:Our company offers 3-year warranty for all products.
5. Q:Do you offer customized service?
A:Yes,we offer ODM&OEM service to our customers.
Datasheet:
For more details, please feel free to contact with Guangmai Tech directly.
You can download the English Version datasheet of smd uv led chip 0.2w 0.5w 1w 60mA 150mA 350mA from the head of this page.
