0.5W 5mw 3535 SMD LED UVC LED Chip 280nm
GMKJ UVC SMD LED main product:
 |  |  |
| 0.5W and 1W 3535 uvc smd led | 4w and 8w 6868 uvc smd led | 4040 60 degree lighting angle uvc smd led |
Applications of UV-C LEDs
There are many applications where UV-C is LEDs are being tested to see if they can become a solution to not just current disinfection challenges but our future ones too.
Drinking water disinfection, water purification, and treatment are where the technology is gaining traction as the solution is chemical-free, has no risk of creating harmful by-products, is an effective pathogen inactivation, and is very low maintenance.
As well as water, UV-C LEDs are offering disinfection for both air and surfaces. UV-C LED air purifiers for HAVC (heating, ventilation, and air conditioning) are being used increasingly in the commercial landscape.
There are numerous applications, from residential to commercial, healthcare, transport, life sciences, defence, and emergency response where UV-C LEDs are finding new uses:
In terms of solving our future problems, UV-C LEDs are being considered in human space exploration, for disinfection applications.
Current systems used in space exploration require water to be recycled. Should bacteria be allowed to fester, it can have life-or-death ramifications.
By incorporating advanced UV-C LED disinfection technology, it can be used to make the recycling of these systems more efficient, more reliable, and more practical. Meaning there are new possibilities for waste treatment and environmental control – not just on earth.

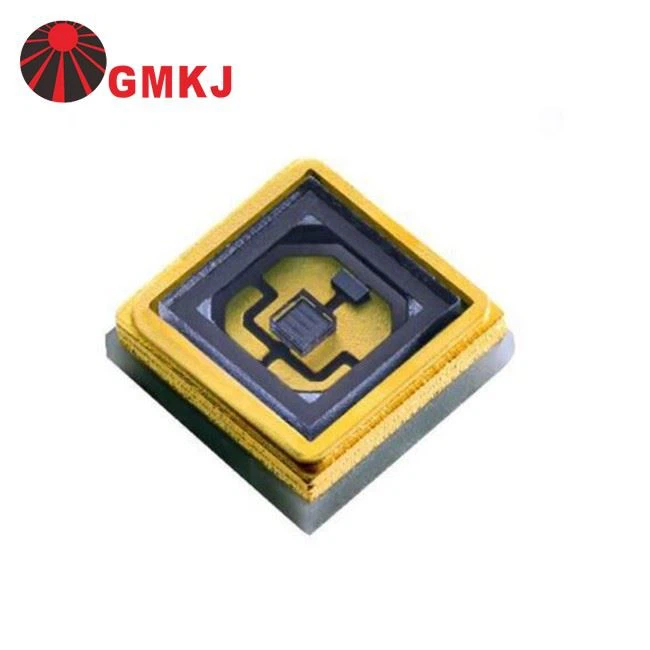

GMKJ 3535 UVC LED picture:
3535 1W UVC SMD LED specs:
■ Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage | VF | IF=150mA | 5.00 | -- | 8.00 | V |
Thermal Resistance Junction To Board | RΘJ-B | IF=150mA | -- | 8 | -- | °C/W |
Radiant Flux | Φe | IF=150mA | 16 | 20 | mW | |
Peak wavelength | λp | IF=150mA | 265 | 280 | nm | |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=150mA | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=10V | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=150mA | −− | 100 | −− | Deg |
Package dimensions:
About GMKJ:
Shenzhen Guangmai Electronics Co., Ltd., was founded in 2009, located in LED industry base in Shenzhen Qiaotou, China, is a high-end technology development, high-power SMD packaging, LED lighting solutions research and marketing as one of the national high-tech enterprises.
TNT/DHL/FEDEX/UPS/EMS and so on for your referrence, we could delivery your goods to all over the world.
More details about 0.5W 5mw 3535 SMD LED UVC LED Chip 280nm, you can contact with us directly.
