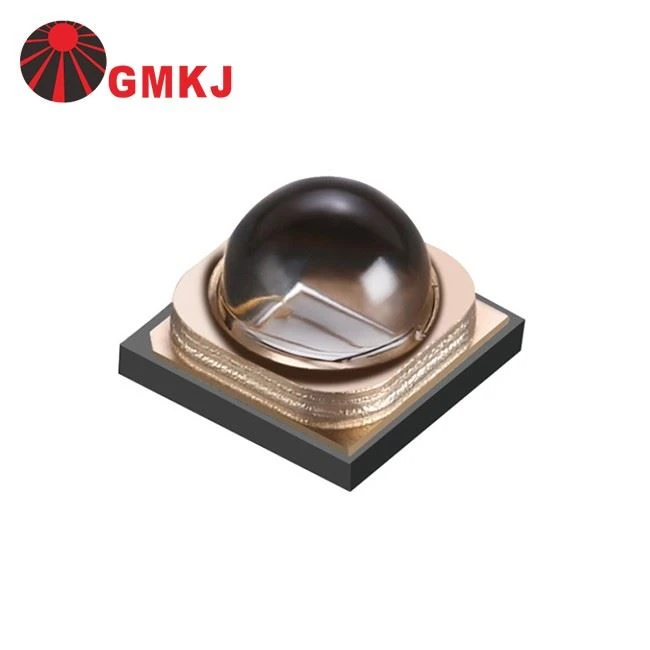

Guangmai Technology is professional in making the UVC LED chip 270nm for Anti Covid-19 Virus Germicidal .
UVC LED main features
1. Small size to enable flexible product structures for applications
2. Concentrated and narrow wave length for effective light usage
3. Solid state: more strong to avoid from damage and safe for transportation
4. Eco-friendly:0-polution in production and usage
5. Engergy saving:Less than 1W
6. Advanced design :
ceramic base adopted at the bottom to ensure heat dissipation performance.
High light transmittance>80%
1. UVC LED 260-285NM (260-270 nm/ 280nm/ 270-280nm):
Hospitals, air conditioning systems, disinfection cabinets, water treatment equipment, water dispensers, sewage treatment plants, swimming pools, food and beverage processing and packaging equipment.
Maternal and child supplies, sterilization box, toothbrush sterilizer, portable sterilizer, and etc.
2. UVB LED 305-315NM: Medical industry produces vitamin D3 and inhibits metabolic bone
Diseases such as osteoporosis.
3. UVA LED 320~400NM -- 365-375nm/380-390n/395-405nm/395-405nm
1). LED Plant Growing Lamp
2). UV adhesive curing 3D printer, display, electronic medical, instruments
3). UV coating curing in building materials, furniture, home appliances, automotive
4).UV ink curing in printing, packaging and other industries
5). Beauty machines: mosquito lamp, nail lamp.
This technology is increasingly necessary in everyday life, and today, it is made even more effective thanks to LED technology, which replaces traditional mercury lamps.
3535 UVC+UVA dual chip 2mW smd led for all kind of sterilization products
The product is UVA+UVC - LED.•Package Size :3.5x3.5x1.47mm.
•Quartz Glass package .
•WP:UVC：270-285nm
UVA：390-405nm
High optical output power
•Long life and low light attenuation
•Environmental protection, energy saving
and high reliability
•Durable, shock-proof, easy to design,
suitable for multi-field applications
UVC LED chip 270nm for Anti Covid-19 Virus Germicidal package size:
■ Absolute Maximum Ratings(At TA =25℃)
Parameter | Symbol | Rating | Unit |
DC Forward Current | IF | 150 | m A |
Peak pulse Current* | IFP | 300 | m A |
Power Dissipation | PD | 1 | W |
Reverse Voltage | VR | 10 | V |
Reverse Current | IR | 10 | μ A |
Operating Temperature Range | TOPR | -30 ~ +75 | °C |
Storage Temperature Range | TSTG | -40 ~ +85 | °C |
LED Junction Temperature | TJ | 60-80 | °C |
■ Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage | VF | IF=150mA | 5.00 | -- | 8.00 | V |
Thermal Resistance Junction To Board | RΘJ-B | IF=150mA | -- | 8 | -- | °C/W |
Radiant Flux | Φe | IF=150mA | 8 | 12 | mW | |
Peak wavelength | λp | IF=150mA | 270 | 280 | nm | |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=150mA | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=10V | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=150mA | −− | 100 | −− | Deg |
Note:
1. The above forward voltage measurement allowance tolerance is ±0.1V。
2. The above luminous flux measurement allowance tolerance is ±10%。
3. The wavelength measurement error shown above is plus or minus 0.1nm。
4.2q1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value。
Precautions when use UVC LED chip 270nm for Anti Covid-19 Virus Germicidal:
(1）This device should not be used in any type of fluid such as water, oil, organic solvent, etc.
when washing is required, IPa should be used
（2）When the LEDs are illuminating, operating current should be decided after considering he ambient maximum temperature.
（3）LEDs must be stored to maintain a clean atmosphere. If the LEDs are stored for 3months or moreafter being shipped from TuoZhan, a sealed container with a nitrogen atmosphere should be used forstorage
（4）The LEDs must be used within seven days after opening the moisture proof packing Repack unused Products with anti-moisture packing, fold to close any opening and then store in a dryplace
（5）The appearance and specifications of the product may be modified for improvement withoutnotice
（6）This LED is sensitive to the static electricity and surge. It is recommended to use a wrist Band oranti-electrostatic glove when handling the lEds.
（）On manual soldering, a solder tip must be needed as grounded for usage. If over voltage whichexceeds the absolute maximum rating is applied to LEDs, it will cause damage lEds and result indestruction. Damaged LEDs will show some unusual characteristics such as leak current remarkablyincrease turn-on voltage becomes lower and the lEds get unlighted at low current
（8）Warm prompt" The UV damage eyes, Do not stare at the light source, And dont shine a lightinto someones eyes
UVC LED chip 270nm for Anti Covid-19 Virus Germicidal application
Sterilize baby products
The medical sterilization
Water sterilization
Food is antibacterial and keeps fres
Household products surface sterilization Aquatic
water purification sterilization
Home cleaning robot sterilizes
Air filtration sterilization
Toothbrush disinfection
Money detector
Phototherapy Detection
About Guangmai LED/ GMKJ LED
Shenzhen Guangmai Technology Co. Ltd is a professional manufacturer of led chips a high-tech enterprise, which is located at Tuozhan industrial park, Shenzhen, China Since 2009 FoundOur main production various of deep ultraviolet disinfection and sterilization UV LED Chips Series UVC, UVB, UVA LED Chips, and some SMD led chips and dip led chips and so on led lights Shenzhen Tuozhan Opto Electronics Co, Ltd has led packaging experience for more than ten years. With IS09001 Certification and SGs, CE, Rosh and Reach Patents Certification and son on Now company has more than 200 employees and 18 R&D technical teams. 5000 SQ meter Indutral Area, 60pcs produce lines, 200PCS Production Equipments for led light. and now independent research and development of UVC LED lighting source, dedicated Uvc automatic production equipment. And Led daily capacity can reach 20， 000， 000 pieces per day. Our product Appliactions in UVC LED Light 3C Electronic, Led light and so on difference Applications. for example disinfeciton light, refrigeration, robot and so on. Tuozhan, we serve customers base on good quality, technological innovation, high efficiency and low cost We wish to make a double win market with our clients using our good job together.
Datasheet:
For more details, please feel free to contact with Guangmai Tech directly.
You can download the English Version datasheet of UVC LED chip 270nm for Anti Covid-19 Virus Germicidal from the head of this page.
