100W SMD LED for Portable Torch Light Specs
| Product name | 100W SMD LED for Portable Torch Light |
| Part number | GD-100110W600-1CC-S1O0YB-R70 |
| Chips brand | China Sanan chips, chip size 150x150mil super big size |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
4vdc IFmax 25000mA |
| Luminous/ Radiant Flux |
1500-2000lm at 5000mA |
| Lighting Efficiency |
Around 130-150 LM/W at 5000mA |
| Wavelength/Color |
White color 6000-7000K, CRI>70 |
| Power |
5000mA with 15W, Max power: 100 Watt |
| Package material |
ALN ceramic, 10x11 mm size smd led |
| Lighting angle |
120 degree lighting angle, quartz glass lens |
| Price | Please contact with GMKJ for the Price |
| Warranty | 3 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

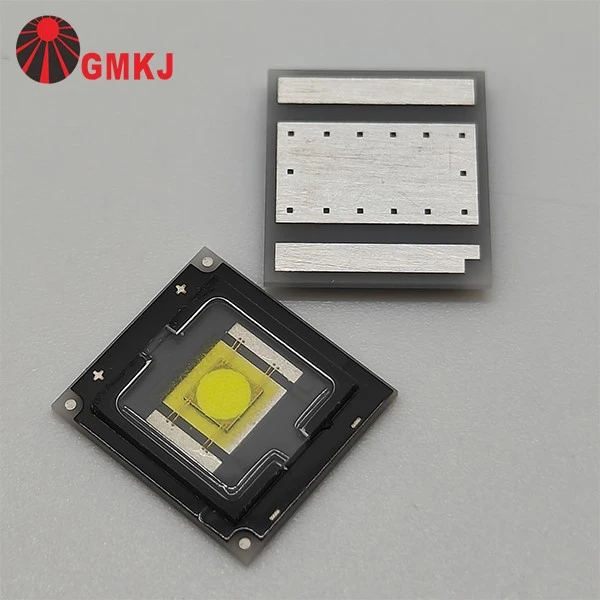

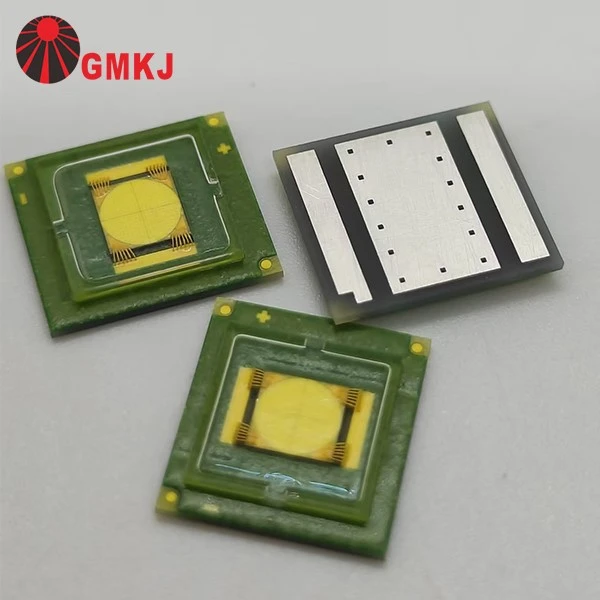

100W SMD LED for Portable Torch Light picture
 |
 |
|
For LED torch light: 3535 YBP laser alike type smd leds Size: 3.5x3.5mm Input: 3vdc Ifmax 3000mA Power: 10 Watt |

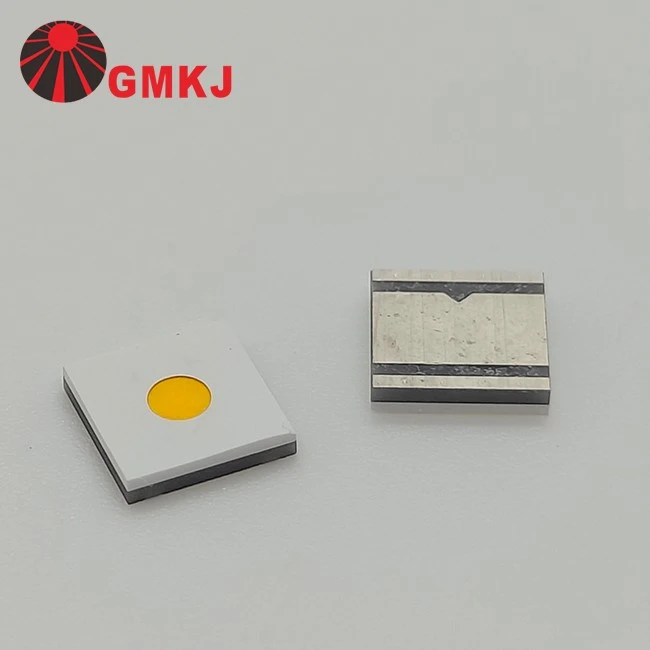

For LED torch light: 5050 YBP laser alike type smd leds Size: 5.0x5.0mm Input: 3vdc Ifmax 5000mA Power: 15 Watt |
 |
 |
|
For LED torch light: 5050 G3H0H8 laser alike type smd leds Size: 5.0x5.0mm Input: 3-4vdc Ifmax 13000mA Power: 40 Watt |

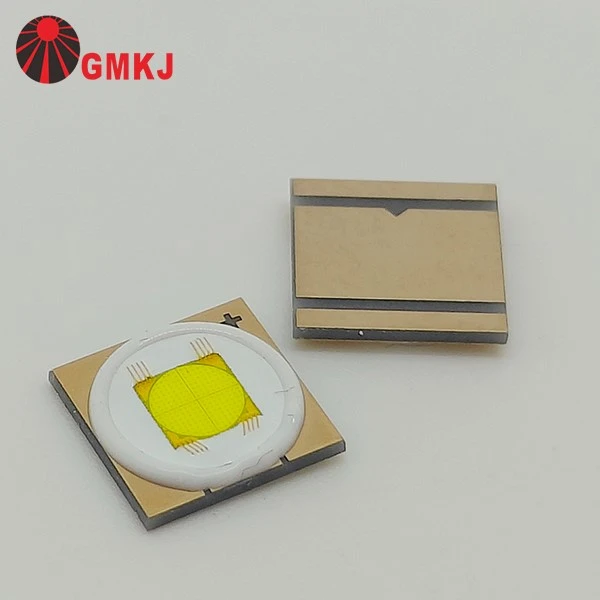

For LED torch light: 7070 type laser alike type smd leds Size: 7.0x7.0mm Input: 6-7vdc Ifmax 8000mA Power: 50 Watt |

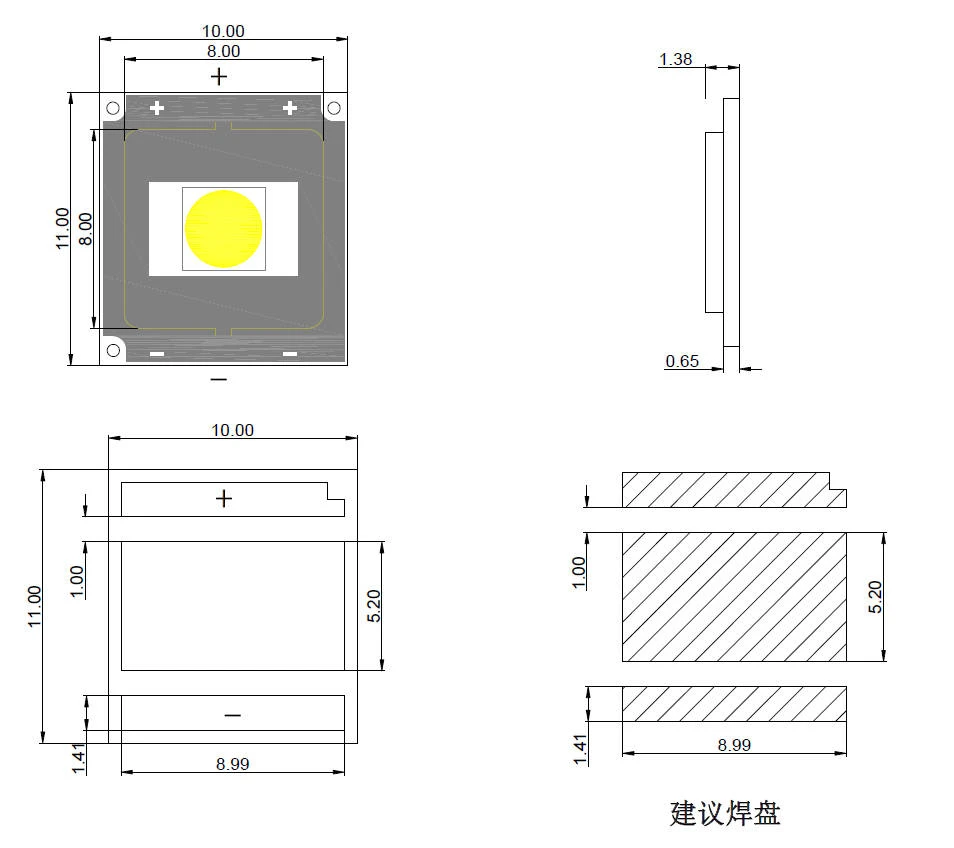

100W SMD LED for Portable Torch Light Dimension
100W SMD LED for Portable Torch Light Electrical Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=5000mA |
3.00 |
-- |
3.60 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=5000mA |
-- |
1 |
-- |
°C/W |
|
Luminous Flux |
Φv |
IF=5000mA |
1500 |
-- |
2000 |
lm |
|
Color Temperature |
CCT |
IF=5000mA |
6000 |
-- |
7000 |
K |
|
CRI |
Ra |
IF=5000mA |
70 |
-- |
-- |
-- |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=5000mA |
−− |
120 |
−− |
Deg |
About GMKJ
Guangmai Technology is a professional LED manufacturer established in 2009, specializing in LED packaging and custom LED solutions.
Our main products include SMD LEDs, High Power LEDs, COB LEDs, UV LEDs, IR LEDs, VCSELs, and ceramic substrate LEDs. We offer wavelengths from 200nm to 3000nm for applications such as horticulture lighting, medical devices, industrial curing, machine vision, security, and scientific research.
With advanced production equipment, strict quality control, and experienced engineering support, we provide reliable products and customized solutions to customers in more than 50 countries worldwide.
We are committed to delivering high-quality LED products, competitive pricing, and professional service to our global partners.
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
We are always here for you!
