Products Description
3000K 6500K Dual Colors 3570 SMD LED for Cars Specs:
| Product name | 3000K 6500K Dual Colors 3570 SMD LED for Cars |
| Part number | GD-3570W3W6-3C2D-S2E5P |
| Chips brand |
China Sanan 55mil flip chip, 6 chips on board; With each color 3S1P;
Flip chips helps the 3570 smd leds has better performance in: Better Heat Dissipation: Direct contact with the substrate improves thermal management. Higher Efficiency: Reduced electrical resistance and shorter current paths enhance performance. |
| Input |
9-10vdc with max 1500mA forward current for each color; |
| Flux |
1500-1700lm at 1500mA for each color |
| Lighting Efficiency | 120-140 LPW at 1500mA for each color |
| Color |
Regular stock WW 3000K and CW 6500K dual colors; |
| Power |
Max around 15 watt x 2 colors at 1500mA forward current loaded |
| Package material |
ALN ceramic substrated for lower thermal resistance |
| Lighting angle |
120 degree with flat package, without dome silicone lens on top |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here. |
If we lighting on dual color 3570 smd led 3000K and 6500K together, what is the color temperature?
If you light a dual-color 3570 SMD LED with both 3000K (warm white) and 6500K (cool white) together, the resulting color temperature will depend on the intensity or ratio of the two color temperatures.
If both colors are equally balanced (50% 3000K and 50% 6500K), the resulting color temperature will likely be around 4750K, which is a neutral white.
If one color dominates, the resulting color temperature will shift closer to the dominant one. For example:
More 3000K will result in a warmer tone (e.g., 3500K-4000K).
More 6500K will result in a cooler tone (e.g., 5000K-6000K).
The exact color temperature can be fine-tuned by adjusting the current or brightness ratio of the two color channels.

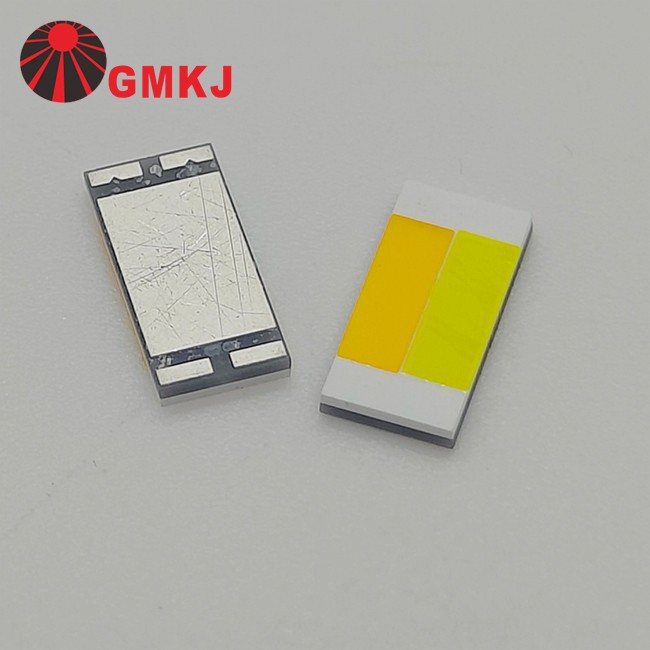

3000K 6500K Dual Colors 3570 SMD LED for Cars Picture:
3000K 6500K Dual Colors 3570 SMD LED for Cars dimensions:
3000K 6500K Dual Colors 3570 SMD LED for Cars specs:
■ Absolute Maximum Ratings(At TA =25℃)
|
Parameter |
Symbol |
Rating |
Unit |
|
|
W3 |
W6 |
|||
|
DC Forward Current |
IF |
1500 |
1500 |
m A |
|
Peak pulse Current* |
IFP |
2000 |
2000 |
m A |
|
Power Dissipation |
PD |
15 |
15 |
W |
|
Reverse Voltage |
VR |
15 |
15 |
V |
|
Reverse Current |
IR |
10 |
10 |
μ A |
|
Operating Temperature Range |
TOPR |
-40 ~ +85 |
-40 ~ +85 |
°C |
|
Storage Temperature Range |
TSTG |
-40 ~ +100 |
-40 ~ +100 |
°C |
|
LED Junction Temperature |
TJ |
150 |
150 |
°C |
■ Electrical/Optical Characteristics--White (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Emitting Color |
Values |
Units |
||
|
Min |
Avg. |
Max |
|||||
|
Forward Voltage |
VF |
IF=1000mA |
W3 |
8.50 |
9.00 |
9.50 |
V |
|
VF |
IF=1000mA |
W6 |
8.50 |
9.00 |
9.50 |
||
|
Luminous Flux |
Φv |
IF=1000mA |
W3 |
1000 |
1050 |
1300 |
lm |
|
Φv |
IF=1000mA |
W6 |
1000 |
1050 |
1300 |
||
|
Color Temperature |
CCT |
IF=1000mA |
W3 |
2800 |
3000 |
3200 |
K |
|
CCT |
IF=1000mA |
W6 |
6000 |
6500 |
7000 |
||
|
CRI |
Ra |
IF=1000mA |
W3 |
70 |
72 |
-- |
-- |
|
Ra |
IF=1000mA |
W6 |
70 |
72 |
-- |
||
|
Reverse Current |
IR |
VR=15V |
W3/W6 |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=1000mA |
W3/W6 |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=1000mA |
W3/W6 |
-- |
0.5 |
-- |
°C/W |
Application
3000K 6500K Dual Colors 3570 SMD LED for Cars applications
3000K 6500K Dual Colors 3570 SMD LED for Cars is mainly used for:
Commercial & Industrial Lighting: Street lights, high-bay/low-bay lights, and floodlights for large spaces.
Automotive: Headlights, tail lights, and interior lighting.
Vehicle lights: Ship lights, boat lights, Fish lightings, Bike lights

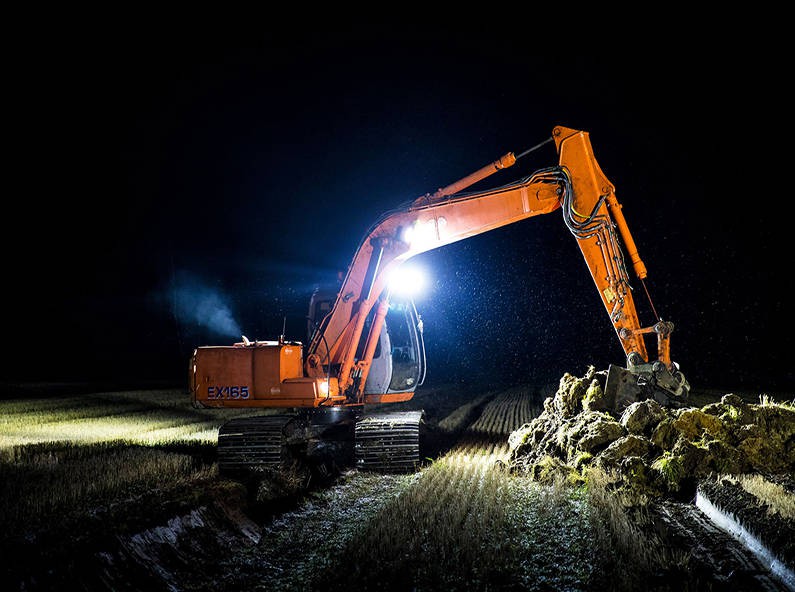

Work lights: Working lights at night for the excuvator, other heavy duty machines
