40W White Laser Alike 5050 SMD LED 3V 13A Specs
| Product name |
40W White Laser Alike 5050 SMD LED 3V 13A Similar type as SFT-40 type LEDs |
| Part number | GD-5050W600-1CC-G3H0H8P-R70 |
| Chips brand | China Ge'en vertical chips with high power |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
3-3.6vdc IFmax 13000mA |
| Luminous/ Radiant Flux | 1500-2000lm at 5000mA |
| Lighting Efficiency |
120 lm/w at 5000mA |
| Wavelength/Color | White color 6000-7000K, CRI>70 |
| Power |
max 40 Watt |
| Package material |
ALN Ceramic substrated |
| Lighting angle |
120 degree lighting angle, Flat pkg without dome silicone lens |
| Price | Please contact with GMKJ Sales team for the Price |
| Warranty | 3-4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

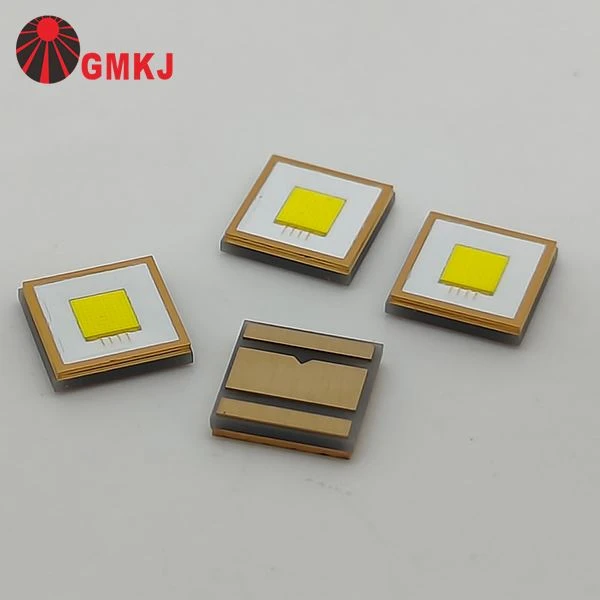

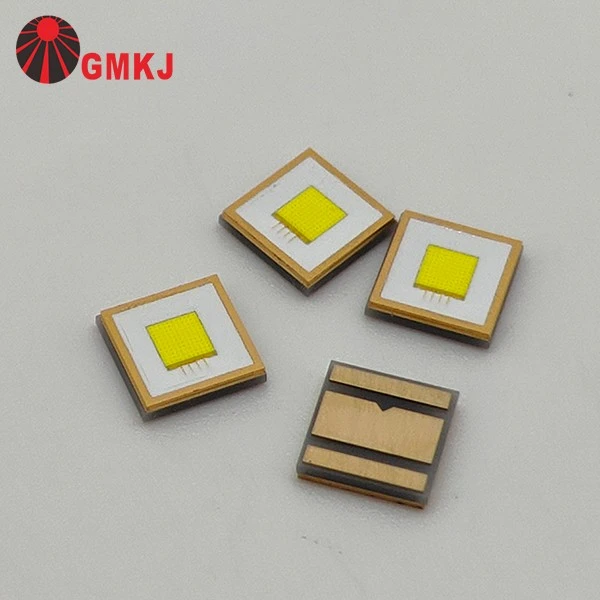

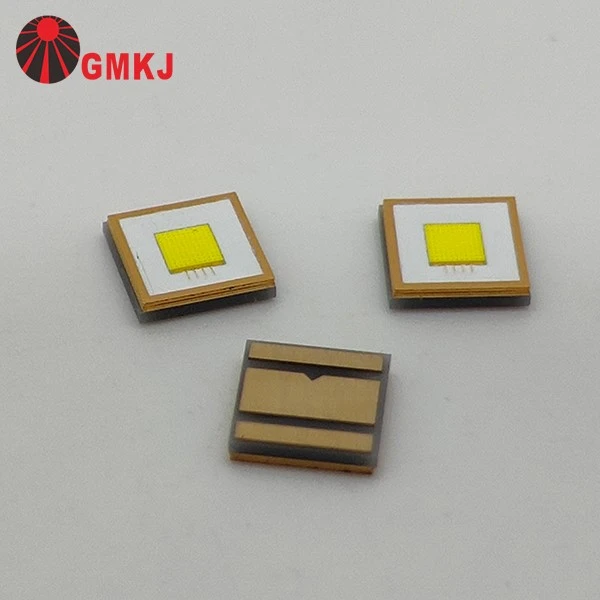

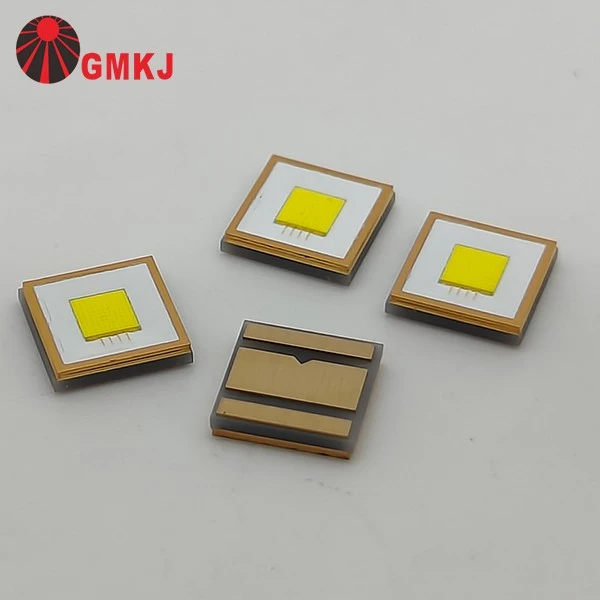

40W White Laser Alike 5050 SMD LED 3V 13A picture
What we are making now for 5050 smd leds in white color:
 |
 |
|
5050 laser like type white smd leds with YBP part number Input: 3vdc IFmax 5000mA 18W Max power: 18W
|
5050 laser alike type white smd leds with flat quartz glass lens Input 3vdc IFmax 5000mA 18W Max power: 18W |
 |
 |
|
5050 smd led vertical chip with domes silicone lens Input: 3vdc IFmax 3000mA Max power: 10W |
5050 smd leds with 4 chips inside, max 20 Watt Input is available: 3vdc 6A; 6vdc 3A; 12vdc 1.5A; |
40W White Laser Alike 5050 SMD LED 3V 13A Dimension
40W White Laser Alike 5050 SMD LED 3V 13A from the Specs Sheet
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=5000mA |
3.00 |
-- |
3.60 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=5000mA |
-- |
1 |
-- |
°C/W |
|
Luminous Flux |
Φv |
IF=5000mA |
1500 |
-- |
2000 |
lm |
|
Color Temperature |
CCT |
IF=5000mA |
6000 |
-- |
7000 |
K |
|
CRI |
Ra |
IF=5000mA |
70 |
-- |
-- |
-- |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] |
2Θ1/2 |
IF=5000mA |
−− |
120 |
−− |
Deg |
How to Achieve a Laser-Like White Beam with an LED?
Why Does Our White "Laser-Alike" SMD LED Have a 120° Beam Angle?
Many customers ask us:
"If your White Laser-Alike SMD LED has a 120° viewing angle, is it a real laser?"
The answer is No.
Our White Laser-Alike SMD LED is not a laser diode. It is a high-power white LED specially designed to produce a laser-like lighting effect under the right optical conditions, while maintaining all the advantages of an LED, such as high reliability, long lifetime, eye safety, and lower cost.
The key difference lies in the LED chip structure.
Unlike conventional horizontal or flip-chip LEDs, our product utilizes a vertical LED chip structure. This unique design provides a much higher center luminous intensity and a more concentrated optical output, making it ideal for narrow-beam optical systems.
Although the LED itself has a standard 120° emitting angle, the light can be effectively collimated when paired with a narrow-angle optical lens or reflector. If the optical lens or reflector has a beam angle of 15° or less (10° is even better), most of the emitted light is collected and projected forward instead of being scattered. As a result, the beam appears extremely concentrated and produces a visual effect very similar to that of a white laser beam.
For customers who want to achieve the strongest laser-like lighting effect, we highly recommend using:
Optical lenses with a beam angle of 10°–15°
Reflectors with a beam angle of 10°–15°
With the proper optical design, the beam becomes highly focused, providing excellent long-distance illumination and a laser-like appearance, while remaining an LED light source rather than a true laser.
Today, our White Laser-Alike SMD LED has been successfully adopted in large-volume production for applications including:
- High-power outdoor flashlights
- Long-range spotlights and searchlights
- Drone (UAV) lighting systems
- Portable hunting and rescue lights
- Other long-distance directional illumination equipment
Its outstanding beam performance, high reliability, and excellent optical compatibility have earned consistently positive feedback from customers worldwide.
About GMKJ
Guangmai Technology is a professional LED manufacturer established in 2009, specializing in LED packaging and custom LED solutions.
Our main products include SMD LEDs, High Power LEDs, COB LEDs, UV LEDs, IR LEDs, VCSELs, and ceramic substrate LEDs. We offer wavelengths from 200nm to 3000nm for applications such as horticulture lighting, medical devices, industrial curing, machine vision, security, and scientific research.
With advanced production equipment, strict quality control, and experienced engineering support, we provide reliable products and customized solutions to customers in more than 50 countries worldwide.
We are committed to delivering high-quality LED products, competitive pricing, and professional service to our global partners.
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
