2020 SMD 3W Compact White LED Design for High-Efficiency Lighting Integration
This 2020 SMD 3W white LED integrates ultra-miniature size and high luminous efficiency, delivering an optimal light source scheme for compact lamp systems that value space saving and low energy consumption.
The upgraded packaging structure guarantees steady color temperature output, alongside excellent thermal conductivity to restrain brightness attenuation under long-lasting continuous operation. Its tiny 2.0×2.0mm footprint supports miniaturized module development, without sacrificing overall luminous performance.
Stable color consistency and high power conversion efficiency make this SMD LED widely applicable to mini commercial spotlights, industrial equipment auxiliary lighting, cabinet lamps and custom compact LED assemblies with strict size limits.
Compact Industrial Lighting Solutions of 2020 3W SMD White LED
Industrial Instrument Internal Lighting
Miniature Lighting Module
Compact Commercial Auxiliary Lights
2020 SMD 3W White LED Package & Compact Lighting Integration

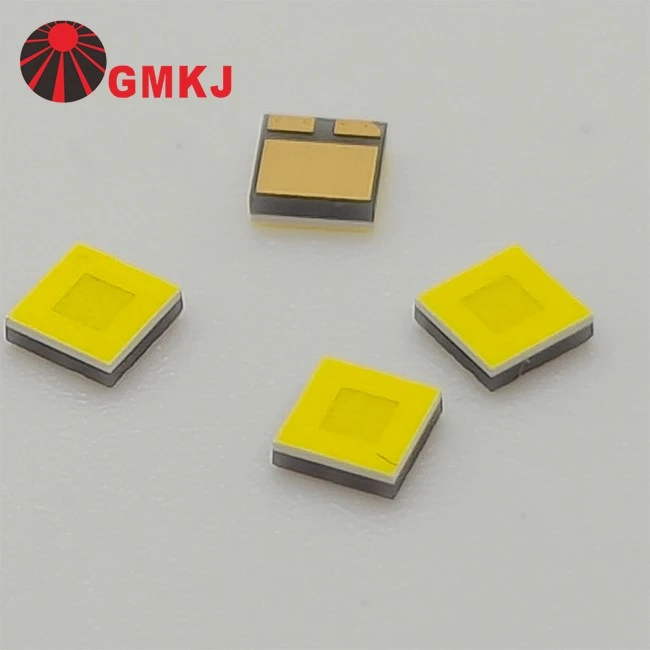

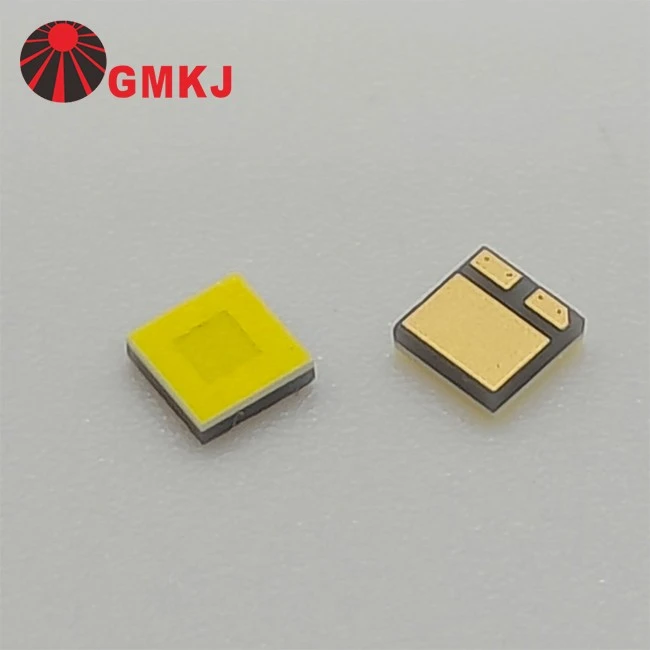

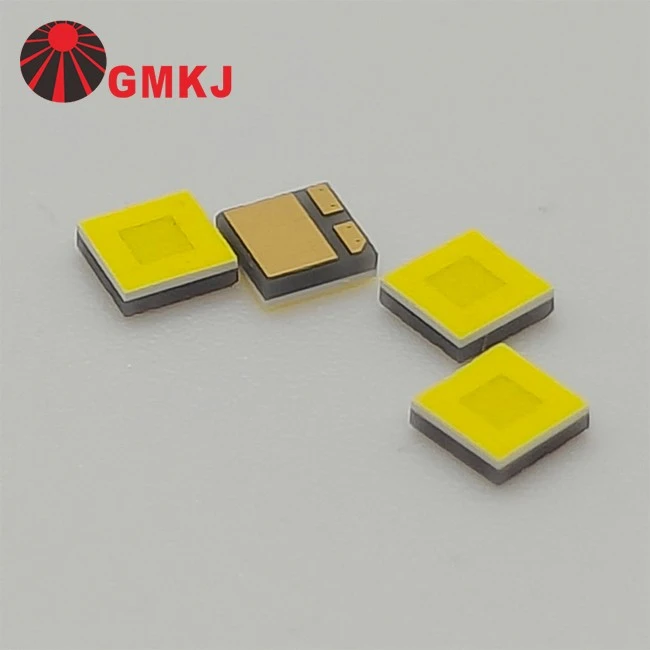

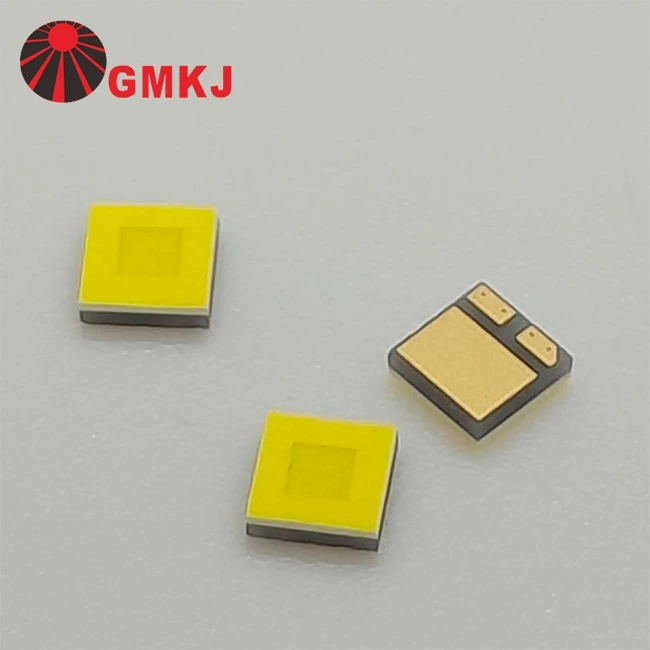

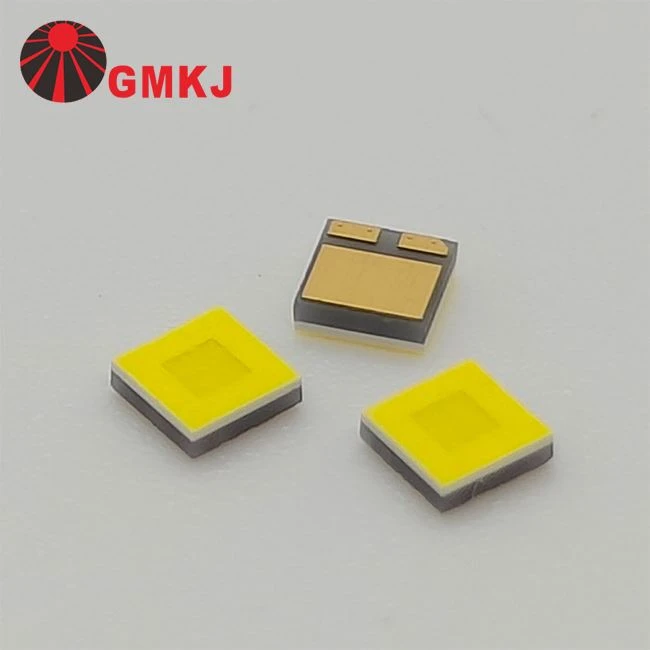

Compact 2020 White LED Package

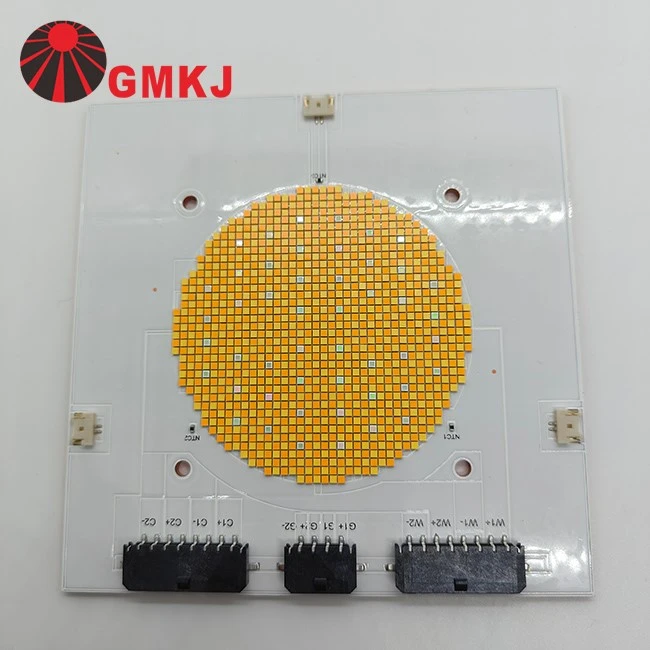

2020 White LED PCB Integration
3W 2020 LED SMD Electrical Parameters
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
| Forward Voltage (Vf) |
VF |
IF=700mA |
2.80 |
-- |
3.40 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=700mA |
-- |
2 |
-- |
°C/W |
|
Luminous Flux (流明) |
Φe |
IF=700mA |
340 |
-- |
380 |
LM |
|
Color Temperature
(色温)
|
λp |
IF=700mA |
6000 |
-- |
7000 |
K |
|
CRI
(显色指数)
|
Ra
|
IF=700mA | -- | 70 | -- | |
|
Temperature Coefficient of Forward Voltage (正向压降之温度系数) |
∆VF/∆T |
IF=700mA |
−− |
-- |
−− |
mV/°C |
|
Reverse Current (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] (发光角度) |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
| Parameter | Specification |
| Part Number |
GDY-2020W600-1CD-S1E5P-R70
|
| Power | 3W |
| Forward Voltage | 3V |
| Max Current | 1A |
| Luminous Flux | 350-380lm at 700mA |
| Color Temperature | 6000K-7000K |
| Color Rendering Index | CRI 70 |
| Beam Angle | 120° |
| Operating Temperature | 40°C to +85°C |
Engineering Support for Compact White LED Lighting Solutions
GMKJ provides compact white LED solutions for customers developing industrial equipment lighting, commercial lighting modules, and customized illumination systems.
Our engineering team supports LED selection, optical performance optimization, thermal design considerations, and PCB-based module development according to different application requirements.
From individual 2020 LED components to customized lighting assemblies, we help customers create reliable and efficient white illumination solutions with flexible design options.
Technical Support Available
White LED Specification Selection
Color Temperature Customization
LED Module Design
PCB Layout Support
Thermal Performance Optimization
Sample Testing Support
