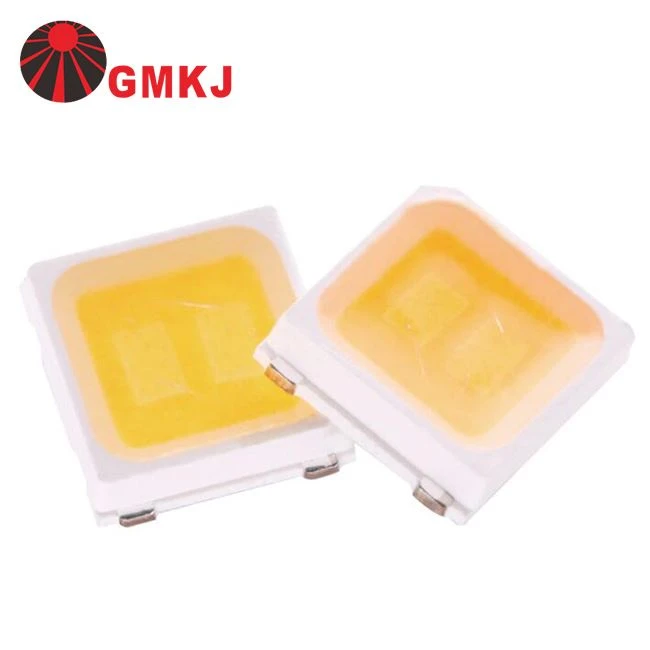

EMC 3030 SMD LED Chip 1W White 6V Specification
3030 SMD LED inside has 2 chips.
1. High lumen, high luminous efficiency;
2. Low light decay and long life;
3. Good heat dissipation, use gold wire and copper bracket;
4. Thin packaging, mature technology.
For more details, please contact with us.
Product Name | 3030 SMD LED Chip 1W 160LM | Product Model | GS-3030 |
Power Dissipation | 1.05W | Color Rendering Index | 80 |
Forward Voltage | 3V /6V /9V | Viewing Angle | 120° |
Forward Current | 350mA /175mA /100mA | Operating Temperature | -40~+60 ℃ |
Luminous Flux | 140-150LM | Storage Temperature | -40~+85 ℃ |
Color Temperature | 4000-4500K | Soldering Temperature | 260℃ |
3030 SMD LEDs are mainly used for lighting and advertising products such as bulb lights, downlights, light source modules, etc.
3030 SMD LED CHIP package details

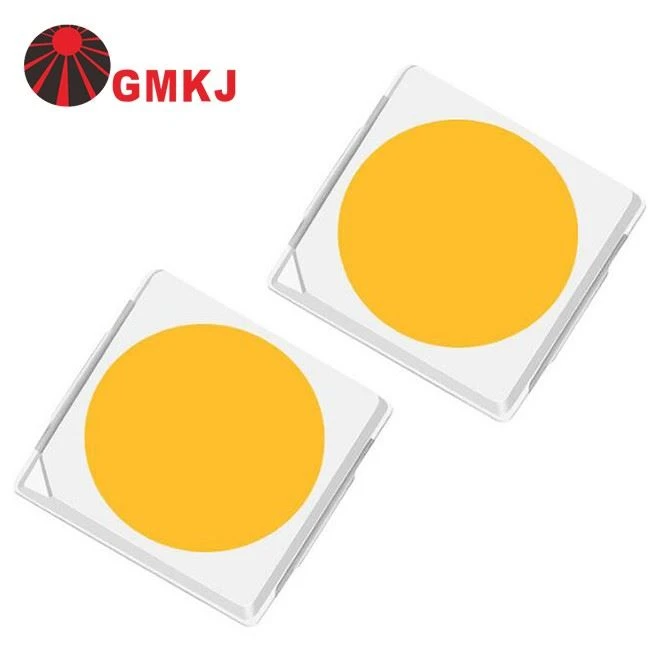

3030 Clear View
Shenzhen Guangmai Electronics Co., Ltd., founded in 2009, is located in LED industry base in Shenzhen Bridgehead, China, is a high-end COB technology development, high-power SMD packaging, LED lighting solutions research and marketing as one of the national high-tech enterprises.
Entering the next decade's Endeavor phase, GMKJ LED continues to develop with high quality, the configuration of factors of production remains high, and product value takes precedence.
Shipment and Packaging
FAQ
Q: How do you ship the goods and how does it take to arrive?
A: Usually, the small package will the ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 working days to arrive, and for big order, we can also ship by ocean which takes about 15-30 days to arrive.
Q: How about the payment terms?
A Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc. Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
Q: an you print my logo on the box?
A: Sure, normally, the products will be ship out without any printing, if you need to print your logo or design on the box, we can help to produce in China and pack it.PS: We can only print your own brand on the box, the other brands are not allowed.
Q: How about the warranty?
A: Three years warranty, and 24/7 Online & Phone Tech Support.
Sample for EMC 3030 SMD LED Chip 1W White 6V are available.
