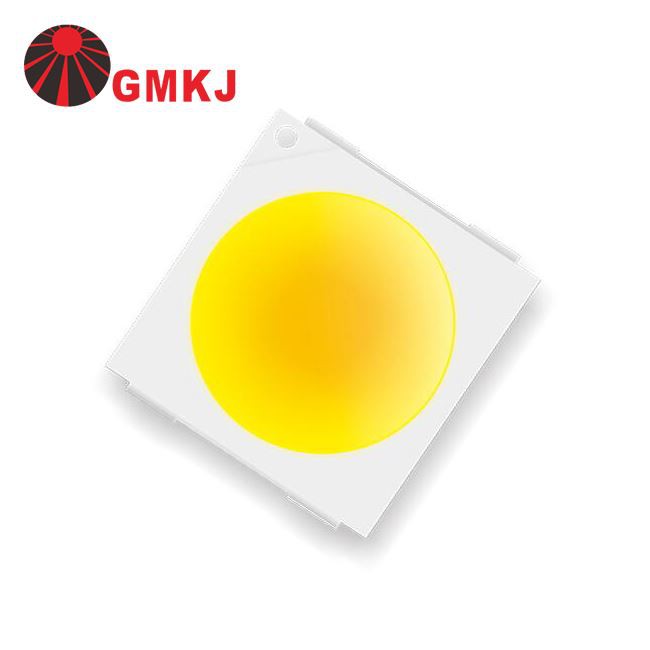

Guangmai Technology is professional in making the LED 3030 1w 220lm/w smd chip 3v 6v CRI 80 90 95.
Product Feature:
Emitting Color:Warm white
Lens Type:yellow diffused
Device Outline:3.0×3.0×0.8(unit:mm)
RoHS compliant
LED 3030 1w 220lm/w smd chip 3v 6v CRI 80 90 95 Cautions
1)Soldering Conditions
Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and Second soldering process.
2)Static Electricity
It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices, equipment and machinery must be properly grounded.Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)
3)Moisture Proof Package
It is recommended that moisture proof package be used .
4)Storage
Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be
used within a year.
5)After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package.
LED 3030 1w 220lm/w smd chip 3v 6v CRI 80 90 95 specifications:
3V 350mA specs:
6V 150mA specs:
LED 3030 1w 220lm/w smd chip 3v 6v CRI 80 90 95 application
1,LED Lighting industry(Tube,Panel Light,Ceiling Light,Bulb light etc)
2,Landscape lighting (LED Strip,Wall washer lamp,Garden light etc)
3,Plant grow Lamp
4,Sterilization and Disinfection
5,Money detector
About Guangmai LED/ GMKJ LED
SMD LED: 0603SMD LED,1206SMD LED,0603 SMD LED,3014 SMD LED, 3020 SMD LED, 3528SMD LED, 2835 SMD LED, 5050 SMD, 5630 SMD LED,5730 SMD LED.
Our Advantage: own the LED special dust-free, anti-static workshop.
Formed a number of world-class United States ASM automatic machine crystalline solid,
ASM automatic soldering machinesA, H120 automatic LED light colour scanner
100% sure our quality is best.
At present, the company mainly researches, develops and produces various types of LED chips.
the core products include 2835， 3030， 5050， 5630， 3528 and other common models of LED chips
Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. How to shipping ?
(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small .
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
2.what will be the types of payment?
The payment we can accept are T/T transaction,Paypal,Western Union,etc.
3.Could you please send me the samples for comfirm the quality?
Of course ,We can provide some free samples for our clients comfirm the quality.
Datasheet:
For more details, please feel free to contact with Guangmai Tech directly.
You can download the English Version datasheet of LED 3030 1w 220lm/w smd chip 3v 6v CRI 80 90 95 from the head of this page.
