Miniature 5W High Power 2016 SMD LED Specs
| Product name | Miniature 5W High Power 2016 SMD LED |
| Part number | GD-2016WXXX-1CD-S1E5P-R70 |
| Chips brand | China Sanan chips |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input | 3vdc IFmax 1500mA |
| Luminous/ Radiant Flux |
300-340lm at 700mA; 380-420lm at 1000mA; |
| Lighting Efficiency |
180-200 lm/w at 350mA 1W; |
| Wavelength/Color |
White color available in color temperature: 2700K; 3000K; 4000K; 5000K; 6500K: |
| Power |
5 Watt |
| Package material |
ALN ceramic pkg, flat type |
| Lighting angle |
120 degree lighting angle |
| Price | Please contact with GMKJ Sales team for the Price |
| Warranty | 3-4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

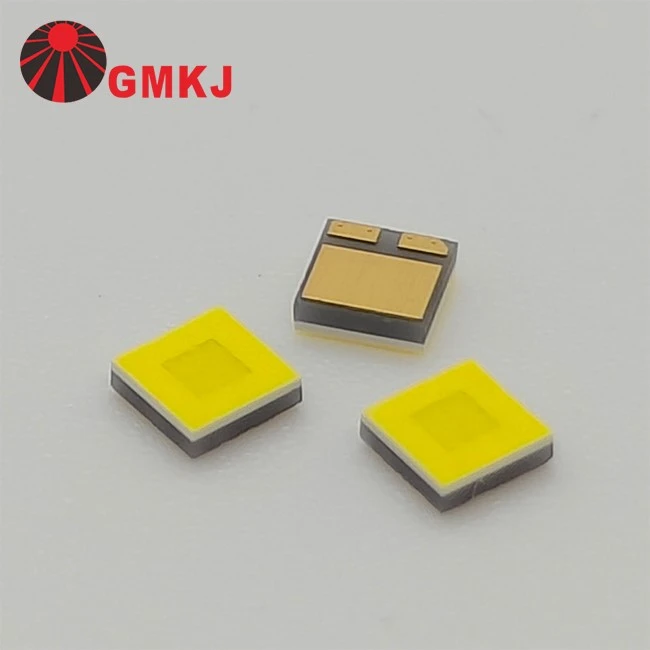

Miniature 5W High Power 2016 SMD LED picture
Miniature 5W High Power 2016 SMD LED Dimension
Miniature 5W High Power 2016 SMD LED details from the Specs Sheet
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=700mA |
2.80 |
-- |
3.20 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
5 |
-- |
°C/W |
|
Luminous Flux |
Φv |
IF=700mA |
300 |
-- |
340 |
lm |
|
Luminous Flux |
Φv |
IF=1000mA |
380 |
-- |
420 |
lm |
|
PN: GD-2016W270-1CD-S1E5P-R70 |
CCT |
IF=700mA |
2550 |
2700 |
2850 |
K |
|
PN: GD-2016W300-1CD-S1E5P-R70 |
CCT |
IF=700mA |
2800 |
3000 |
3200 |
K |
|
PN: GD-2016W400-1CD-S1E5P-R70 |
CCT |
IF=700mA |
3700 |
4000 |
4300 |
K |
|
PN: GD-2016W500-1CD-S1E5P-R70 |
CCT |
IF=700mA |
4700 |
5000 |
5300 |
K |
|
PN: GD-2016W650-1CD-S1E5P-R70 |
CCT |
IF=700mA |
6000 |
6500 |
7000 |
K |
|
CRI |
Ra |
IF=700mA |
70 |
-- |
-- |
-- |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
