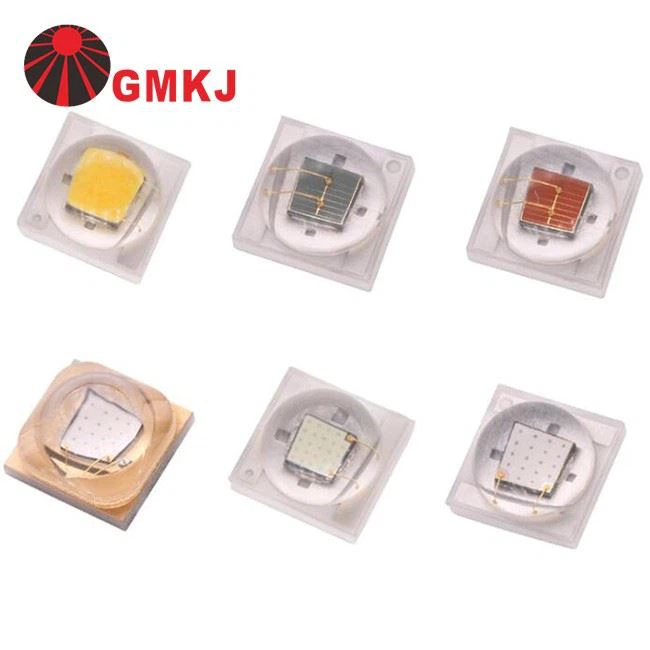

Lattice Power 3535 Smd Led Vertical Chip For LED Torch Light

Guangmai Technology is professional in making the Lattice power 3535 smd led vertical chip for LED torch light.

Product Description

Power range: 1-3w

CCT:2600-7000K

View Angle:120° 90° 60°

3 years warranty

LM-80; RoHS compliant

·high luminous efficacy 160lm/w

·ceramic base with high heat conductivity

·flip Chip Technology, no gold wire soldering

·operating current 350-700mA

·>50000Hrs

·RoHS compliant , LM-80



GT-3535-FLIP35-1W	1-2W	white 2700-6500k	Longda	35*35mil FLIP	3-3.4VDC	300-600mA	140-150LM
GT-3535-FLIP43-3W	1-3W	white 2700-6500k	Longda	43*43mil FLIP	3-3.6VDC	300-800mA	150-160LM
GT-3535-FLIP55-4W	1-4W	white 2700-6500k	Longda	55*55mil FLIP	3-3.6VDC	300-1200mA	170-180LM
GT-3535-FLIP55-5W	1-5W	white 2700-6500k	Sanan	55*55mil FLIP	3-3.6VDC	1500mA	400-600LM
GT-3535-OSR30	1-2W	white 2700-6500k	Osram	30*30mil	3-3.6VDC	300-600mA	140-150LM
GT-3535-OSR40	1-4W	white 2700-6500k	Osram	40*40mil	3-3.6VDC	300-1000mA	155-170LM
GT-3535R-G42	1-3W	RED 620-630nm	Epileds	42*42mil	2-2.4VDC	300-700mA	40-60LM
GT-3535R-G42-660	1-3W	Deep red 650-660nm	Epileds	42*42mil	2-2.4VDC	300-700mA	30-50LM
GT-3535G-G45	1-3W	Green 520-530nm	Epileds	45*45mil	3-3.4VDC	300-700mA	80-120LM
GT-3535B-G45	1-3W	Blue 455-465nm	Epileds	45*45mil	3-3.4VDC	300-700mA	20-30LM
GT-3535Y-J42	1-3W	Yellow 585-595nm	Epistar	42*42mil	2-2.4VDC	300-700mA	30-50LM

---



Product Type	CCT (K)	CRI	φ (lm)	Power (W)	VF (V)	IF (mA)
GMKJ 1-3w 3535 smd led	2900-3200	80	110-130	1W	2.8-3.2	350/700
	4000-4500	70	130-150	1W	2.8-3.2	350/700
	5000-5500	70	130-150	1W	2.8-3.2	350/700
	6000-6500	70	130-150	1W	2.8-3.2	350/700

Lattice power 3535 smd led vertical chip for LED torch light 1W 350mA specs:

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=350mA	2.80	--	3.40	V
Thermal Resistance Junction To Board	RΘJ-B	IF=350mA	--	8	--	°C/W
Luminous Flux	Φv	IF=350mA	140		150	lm
Color Temperature	CCT	IF=350mA	7000		8000	K
CRI	Ra	IF=350mA	70	--	--	--
Temperature Coefficient of Forward Voltage	∆VF/∆T	IF=350mA	−−	-2	−−	mV/°C
Reverse Current	IR	VR=5V	−−	−−	10	μ A
Viewing Angle [1]	2Θ1/2	IF=350mA	−−	120	−−	Deg



Lattice power 3535 smd led vertical chip for LED torch light application

outdoor architectural lighting;street light,spot light,wall washer;commercial lighting;general illumination;decorative lighting;indication lighting;stage lighting;traffic signal lighting

About Guangmai LED/ GMKJ LED

Delivery:

Payment methods:

Credit card, e-checking, bank transfer / wire transfer, Alipay, Wechat payment, Western Union, etc.



FAQ:

Q1; Are you a factory or a trader?

A1: Guangmai Technology is an integrated industry and trade company, focusing on R&D, production and sales of LED light source/street lamp modules and other supporting products.

Q2: If I want a quotation, what should I do?

A2: Please provide us with the quantity, size and material of the products you need. If you need customization, please contact us.

Q3: What is the preparation time?

A3: The time depends on your quantity, but under normal circumstances, sample orders will take 3-5 working days, and bulk orders will be completed within 15-25 days.

Q4: Can I customize the color temperature or customize the module?

A4: Under normal circumstances, we support customized products, depending on your quantity.

---

Datasheet:

For more details, please feel free to contact with Guangmai Tech directly.

You can download the English Version datasheet of Lattice power 3535 smd led vertical chip for LED torch light from the head of this page.
