Osram Chip SMD3535 LED 160LM 1W

Osram chip SMD3535 LED 160LM 1W

Product Features:

• High Light efficiency up to 190lm/w

• Long life span over 80000hrs

• Use OSRAM40mil big chip

• Max Forward current up to 1000mA

• Oxide Aluminum Ceramic Base with good thermal  conductivity

• Beautiful Light Distribution for LED Torch and automobile lighting

• Cost effective choice compare with CREE XTE Series.

Product Specifications:

Absolute Maximum Ratings(At TA =25℃)

Parameter	Symbol	Rating	Unit
DC Forward Current	IF	1500	m A
Peak pulse Current*	IFP	2000	m A
Power Dissipation	PD	4.5	W
Reverse Voltage	VR	5	V
Reverse Current	IR	10	μ A
Operating Temperature Range	TOPR	-30 ~ +75	°C
Storage Temperature Range	TSTG	-40 ~ +85	°C
LED Junction Temperature	TJ	120	°C

Electrical/Optical Characteristics--White (At TA=25°C)

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=1000mA	3.0	--	3.40	V
Thermal Resistance Junction To Board	RΘJ-B	IF=1000mA	--	8	--	°C/W
Luminous Flux	Φe	IF=1000mA	300		400	lm
Color Temperature	λp	IF=1000mA	6000		6500	nm
Temperature Coefficient of Forward Voltage	∆VF/∆T	IF=1000mA	−−	-2	−−	mV/°C
Reverse Current	IR	VR=10V	−−	−−	10	μ A
Viewing Angle [1]	2Θ1/2	IF=1000mA	−−	120	−−	Deg

Illuminate your life

Light is all around us. It is everywhere we go. Be it luminaires or appliances. Simply for the purpose of lighting up or accentuate a structure. Signaling that a road may be crossed safely, an ambulance is approaching or marking the runway for planes. From enhancing our well-being and health, to cultivating plants. When it comes to lighting, choose LED components from our comprehensive portfolio covering vastly different needs, applications and advanced technological solutions.

Contributing to the quality of life for thousands of people is more than a commodity. It’s quite a task to be in charge of providing a safe environment people feel comfortable in. As it has a huge impact on life quality, details matter to you. Like the influence of harsh outdoor conditions on the performance of small parts or the lifetime of consumables.

So, when it comes to outdoor lighting choose LED components from a partner with decades of experience and the power to help you accomplish your project. OSRAM’s broad portfolio of LEDs from high quality and performance solutions to specifically cost effective products offers a spectrum of infinite possibilities. From functional to decorative lighting, from tunnels to parking garages, from street lights to architectural lighting, our LEDs are outstanding in terms of durability and long life.

With our popular DURIS® P and OSLON® families you are always on the safe side. They come in high quality packages with integrated silicon lenses for constant performance even in difficult ambient conditions. They are protected against water, corrosion and dirt and their high quality will last a lifetime. Designed for professional outdoor lighting they are an ideal match for all high-quality applications, just like your work for the greater good. All because of our decades of lighting experience. We are here to help you make life safer.

Start something bright.

Packing Method

1000pcs /reel in vacuum bag .

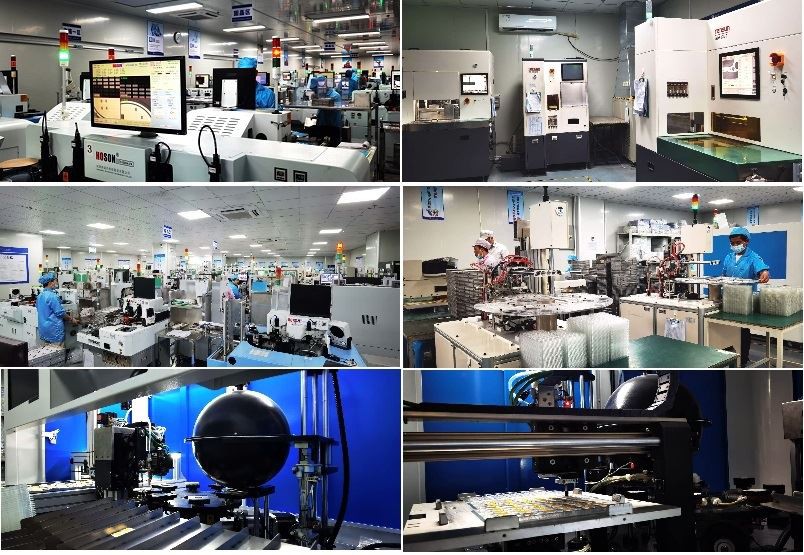

Company overview:

For more info about the Osram chip SMD3535 LED 160LM 1W, you are welcome to contact with us freely.
