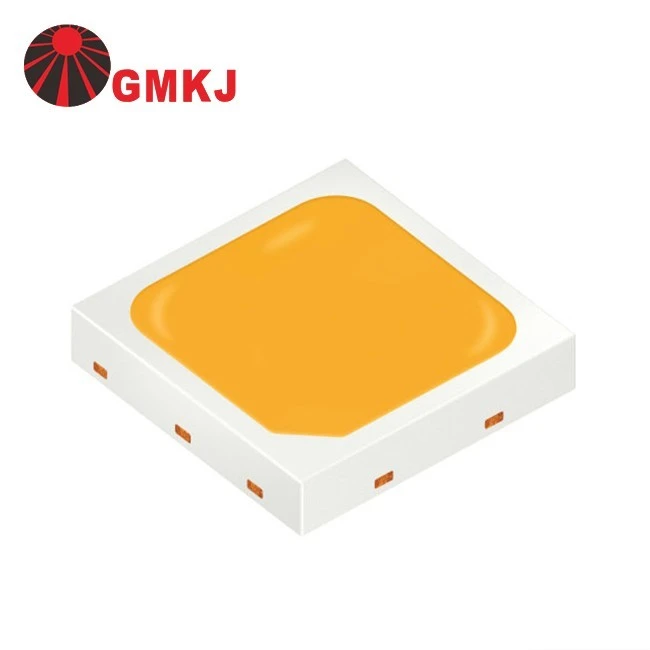

■Product Feature of GMKJ SMD 5050 LED 5W White 220LM/W High Brightness:
1. Ultraviolet high temperature resistance, up to 110 degrees Celsius welding point temperature resistance UV excellent EMC/SMC material
2. The upper finger can reach Ra >93
High gloss products up to 220Lm /W
High power can do more than 5W, more in line with customer requirements
3. Small volume, high reliability, can adopt the patch process, to achieve mass production, greatly improve the product cost performance
4. Widely used in: car lights, motorcycle lights, electric car lights, street lights, spotlight, spotlight, city lighting, stage lights.
OEM design is highly welcome, can print your logo.
Product Name | 1-5W 5050 SMD LED CHIP | Product Model | GE-5050W6-100600-P2240C |
Power Dissipation | 1W-5W | Color Rendering Index | 70 |
Forward Voltage | 15.0-18.0V | Viewing Angle | 120° |
Forward Current | 300Ma | Operating Temperature | -40~+60 ℃ |
Luminous Flux | 600-700LM | Storage Temperature | -40~+85 ℃ |
Color Temperature | 2700-6500K | Soldering Temperature | 260℃ |
■Package Dimensions
■Electrical/Optical Characteristics--White (At TA=25°C)
■Application
Widely used in: car lights, motorcycle lights, electric car lights, street lights, spotlight, spotlight, city lighting, stage lights.
■Shipping
■Product specification of SMD 5050 LED 5W White 220LM/W High Brightness:
1.In order to avoid moisture absorption, it is suggested to store the products in a drying cabinet with desiccant. The storage temperature is 5℃~30℃, and the humidity is ≤60%.
2. After storage for six months, it is recommended to re-use the spectral separation to prevent changes in photoelectric parameters.
3.It is recommended to dry products that have been sealed and stored for more than six months before use. The drying condition is 65℃±5℃ for 10 hours.
4.The product shall be used within 24h after opening, otherwise it shall be baked at 65℃ for 4-6h before reflow welding.
5.Repackage unused products in moisture-proof bags and store in a dry place.
If you need sample of SMD 5050 LED 5W White 220LM/W High Brightness for testing, just contact us!
