Products Description

Tunable 5050 SMD LED 3000K 6000K 2in1 specs shown as below:

Product name	Tunable 5050 SMD LED 3000K 6000K 2in1
Chips brand	China Sanan 30mil chips
Input	3000K W3 with 3-3.4vdc 1400mA 6000K W6 with 3-3.4vdc 1400mA
Brightness	W3 3000K with 350-450lm W6 6000K with 450-550lm
Color	W3: 2800-3200K, Ra>80 W6: 6000-6500K. Ra>70
CRI	Ra>70, Ra>80 optional
Board material	ALN ceramic package
Lighting angle	120 degree silicone glass lens
Brand and manufacturer	GMLEDs, GMKJ
Warranty	4 years

Tunable 5050 SMD LED 3000K 6000K 2in1 size:

Tunable 5050 SMD LED 3000K 6000K 2in1 size

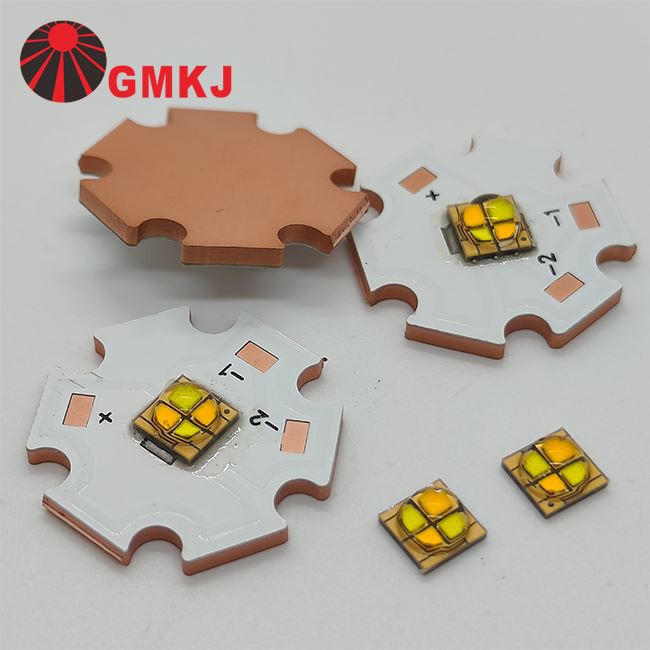

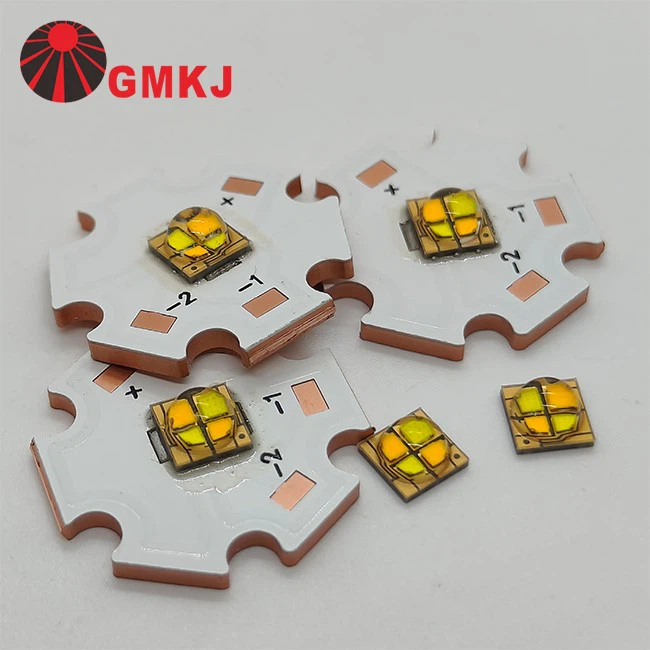

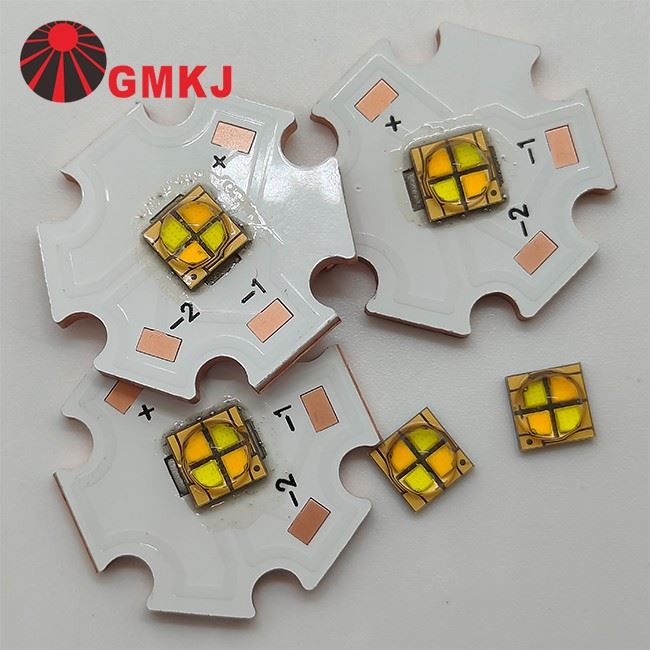

Tunable 5050 SMD LED 3000K 6000K 2in1 picture:

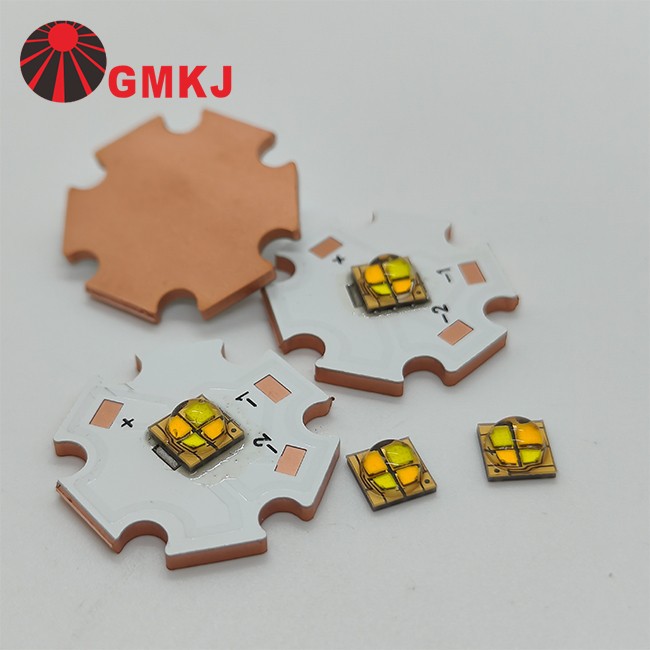

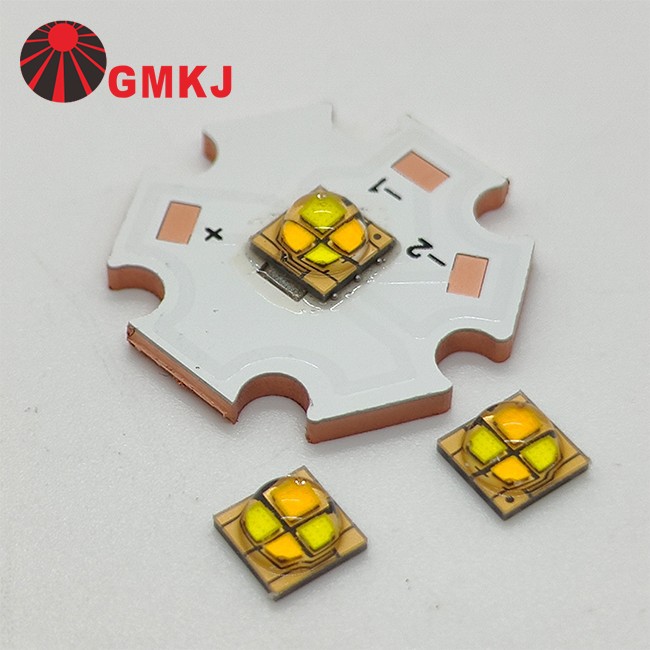

5050 tunable smd led 2700K 6000K

Tunable 5050 SMD LED 3000K 6000K 2in1 technical specs:

■ Absolute Maximum Ratings(At TA =25℃)

Parameter	Symbol	Rating		Unit
Parameter	Symbol	W3	W6	Unit
DC Forward Current	I_F	700*2	700*2	m A
Peak pulse Current	I_FP	1000*2	1000*2	m A
Power Dissipation	P_D	3*2	3*2	W
Reverse Voltage	V_R	5	5	V
Reverse Current	I_R	10	10	μ A
Operating Temperature Range	T_OPR	-40 ~ +85	-40 ~ +85	°C
Storage Temperature Range	T_STG	-40 ~ +100	-40 ~ +100	°C
LED Junction Temperature	T_J	120	120	°C

■ Electrical/Optical Characteristics--White (At TA=25°C)

Parameter	Symbol	Conditions	Emitting Color	Values			Units
				Min	Avg.	Max
Forward Voltage	V_F	I_F=700mA*2 chip	W3	3.00	--	3.40	V
			W6	3.00	--	3.40
Luminous Flux	Φv	I_F=1400mA	W3	350	--	450	lm
			W6	450	--	550
Color Temperature	CCT	I_F=700mA*2 chip	W3	2800	--	3200	K
			W6	6000	--	6500	K
CRI	Ra	I_F=700mA*2 chip	W3	80	--	--
			W6	70	--	--
Temperature Coefficient of Forward Voltage	∆V_F/∆T	I_F=700mA*2 chip	−−	−−	-2	−−	mV/°C
Reverse Current	I_R	V_R=5V	−−	−−	−−	10	μ A
Viewing Angle	2Θ_1/2	I_F=700mA*2 chip	−−	−−	120	−−	Deg
Thermal Resistance Junction To Board	RΘ_J-B	I_F=700mA*2 chip	−−	--	5	--	°C/W

Application

Tunable 5050 SMD LED 3000K 6000K 2in1 is mainly used for LED wall washer lights, LED flood light, LED landscape light, LED fountain light, drone LED lights for special performance and so on.

rgb and rgbw leds applications

rgb and rgbw leds applications 2

About GMKJ LED

GMKJ is an ISO Certificated manufacturer of high quality, high reliability LED diodes, formed in January of 2009. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements.

About GMKJ LED

Our Service:
PCB design & Reflow soldering service
COB/LED/Drivers customization
Mold development (Plastic injection & Die casting)
Representatives in the UK, Korea and Czech.
ISO9001-2008, SGS, TUV, BV, CNAS accredited laboratory & Optical Lab.
