Products Description

20W 5050 SMD LED laser alike round shade for flash light specs shown as below:

Product name	20W 5050 SMD LED laser alike round shade for flash light
Part number	GD-5050W600-1CC2-SA72YB
Chips brand	China Sanan 72mil laser alike chips
Input	3.6-4.2vdc 5A max
Brightness	2000-2500lm
Color	Cool White 6000-7000K / blue color optional
CRI	Ra>70
Board material	ALN ceramic package
Lighting angle	20 degree with flat quartz glass lens, laser alike long distance light Round shade special design for flash light
Brand and manufacturer	GMLEDs, GMKJ
Warranty	4 years
OEM service	16mm, 18mm, 20mm diameter star pcb boards with aluminum/ copper, pcb boards assembly available

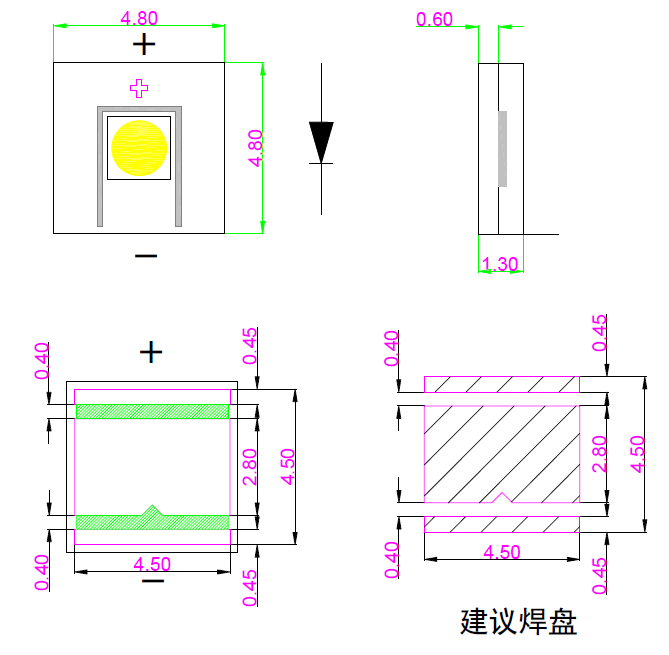

20W 5050 SMD LED laser alike round shade for flash light size:

20W 5050 SMD LED laser alike round shade for flash light

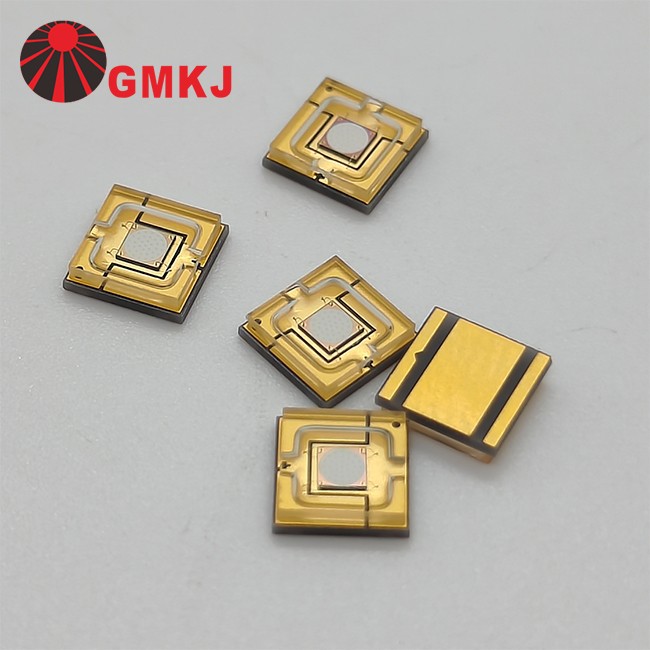

20W 5050 SMD LED laser alike round shade for flash light picture:

5050 glass lens smd led -5

20W 5050 SMD LED laser alike round shade for flash light technical specs:

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	V_F	I_F=5000mA	3.40	--	4.20	V
Thermal Resistance Junction To Board	RΘ_J-B	I_F=5000mA	--	5	--	°C/W
Luminous Flux	Φv	I_F=5000mA	2000		2500	lm
Color Temperature	CCT	I_F=5000mA	6000		7000	K
CRI	Ra	I_F=5000mA	70	--	--	--
Temperature Coefficient of Forward Voltage	∆V_F/∆T	I_F=5000mA	−−	-2	−−	mV/°C
Reverse Current	I_R	V_R=5V	−−	−−	10	μ A
Viewing Angle	2Θ_1/2	I_F=5000mA	−−	20	−−	Deg

5050 smd led 20w 4vdc 5A

Application

20W 5050 SMD LED laser alike round shade for flash lightis mainly used for below applications:

●Portable lightings /(flash lightings, bicycle)
●Landscape lighting,lighting engineering
●General lighting
●Industrial lighting
●Car light, Vehicle light, outdoor lights

led flash light 2

bicycle led flash light

About GMKJ LED

GMKJ is an ISO Certificated manufacturer of high quality, high reliability LED diodes, formed in January of 2009. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements.

About GMKJ LED

Our Service:
PCB design & Reflow soldering service
COB/LED/Drivers customization
Mold development (Plastic injection & Die casting)
Representatives in the UK, Korea and Czech.
ISO9001-2008, SGS, TUV, BV, CNAS accredited laboratory & Optical Lab.

Shipment

2828 cob led shipment

Shipping Options:
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 10-15 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express.
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.

GMLEDs Advtange

Competitive Advantages of our LEDs:

1. Good quality guarantee, 50000 hours lifespan, 2-5 years warranty.

2. Professional engineers and experienced workers.

3. Short delivery time, normally 1-7 working days.

4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.

5. Various module type, such as SMD LED, 1-5W high power LED , 1-1500W integrated LED.

For more details, please write back to us GMLEDs Team directly!
