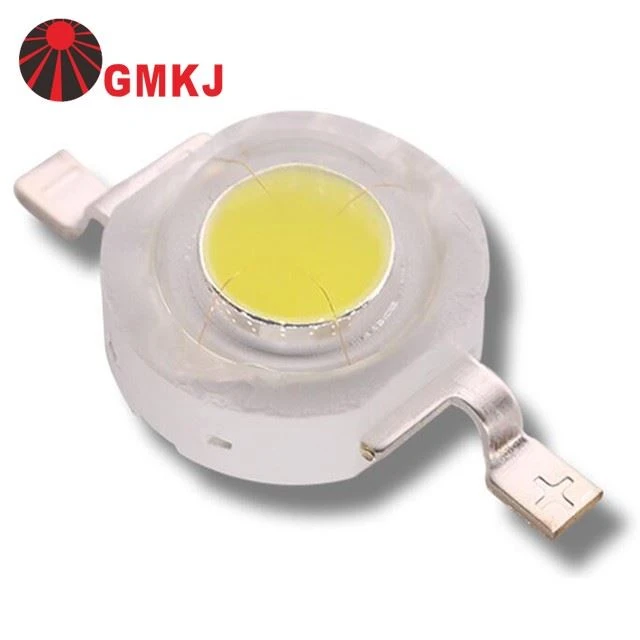

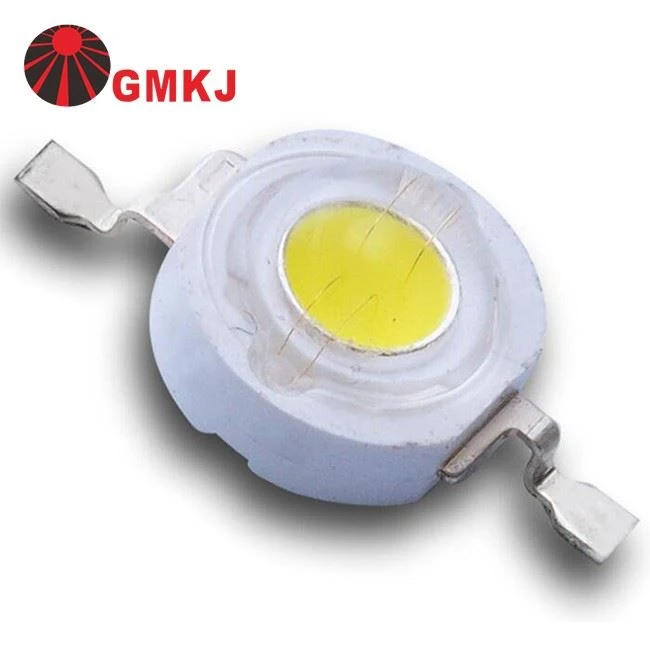

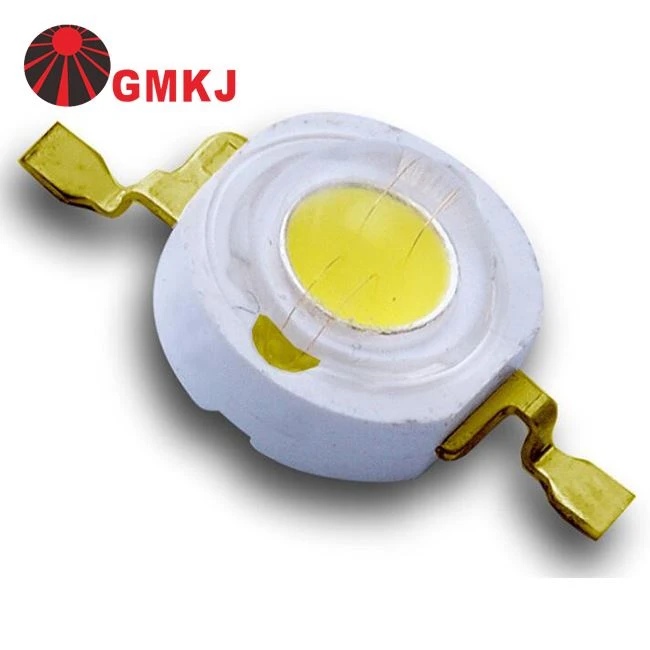

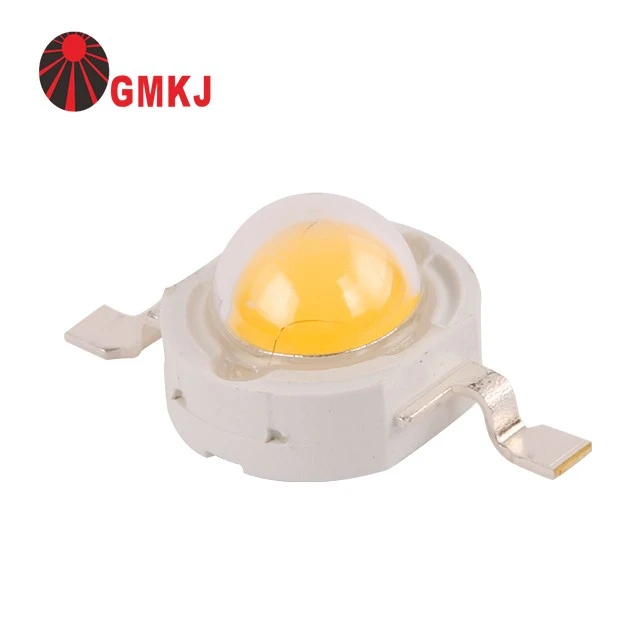

1w 3w 5w High Power Led Natural White 4000k

Guangmai Technology is professional in making the 1w 3w 5w high power led natural white 4000k.



Features:

1.Package ( L/W/H ) : 3.5×2.8×0.8 mm

2.Color : Ultra High Bright White

3.Lens: Yellow Diffuse Flat Mold

4.EIA STD Package

5.Meet ROHS, Green Product

6.Compatible With SMT Automatic Equipment

7.Compatible With Infrared Reflow Solder Process

Color : UV (purple) emitting color
Lens: Water Clear Flat Mold
EIA STD Package
Green Product
Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder Process

LED specifications:

MODEL NO.	POWER	CCT	Chips Brand	Chips Size	Volt(V)	Current(mA)	Lumen(LM)
GP-1WW6-11110-J33G	1W	white 2700-6500k	Taiwan Epistar	33*33mil	3.0-3.4V	350mA	120-140lm
GP-1WW6-11120-J45G	1W	white 2700-6500k	Taiwan Epistar	45*45mil	3.0-3.4V	350mA	120-140lm
GP-1WW6-11120-PR35G	1W	white 2700-6500k	USA Bridgelux	35*35mil	3.0-3.4V	350mA	120-140lm
GP-1WW6-21140-P2240G	1W	white 2700-6500k	USA Bridgelux	22*40mil*2	3.0-3.4V	350mA	140-160lm
GP-1WW6-21140-P2345G	1-3W	white 2700-6500k	USA Bridgelux	23*45mil*2	3.0-3.6V	350-700mA	140-160lm/ 240-280lm
GP-1WW6-11120-J35G	1W	white 2700-6500k	Taiwan Epistar	35*35mil	3.0-3.4V	350mA	120-140lm
GP-1WW6-11120-TH35G	1W	white 2700-6500k	China Tonghui	35*35mil	3.0-3.4V	350mA	100-120lm
GP-1WW6-11140-JP45G	1-3W	white 2700-6500k	China Jingpu	45*45mil	3.0-3.6V	350-700mA	140-160lm/ 240-280lm
GP-1WW6-11150-P45G	1-3W	white 2700-6500k	USA Bridgelux	45*45mil	3.0-3.6V	350-700mA	140-160lm/ 240-280lm

GP-1WR2-GL28	1W	Red, 620-630nm	Taiwan OPTOTECH	28*28mil	2-2.2V	350mA	30-50LM
GP-1WR2--GH28	1W	Red, 620-630nm	Taiwan Epileds	28*28mil	2-2.2V	350mA	40-50LM
GP-1WR2-GH38	1W	Red, 620-630nm	Taiwan Epileds	38*38mil	2-2.2V	350mA	40-60LM
GP-1WR2-GL42	1-3W	Red, 620-630nm	Taiwan OPTOTECH	42*42mil	2-2.6V	350-700mA	40-50LM
GP-1WR2-GH42	1-3W	Red, 620-630nm	Taiwan Epileds	42*42mil	2-2.6V	350-700mA	40-60LM
GP-1WG6-GL28	1W	Green, 520-530nm	Taiwan OPTOTECH	28*28mil	3.0-3.4V	350mA	40-60LM
GP-1WG6-GH28	1W	Green, 520-530nm	Taiwan Epileds	28*28mil	3.0-3.4V	350mA	50-90LM
GP-1WG6-GH35	1W	Green, 520-530nm	Taiwan Epileds	35*35mil	3.0-3.4V	350mA	50-100LM
GP-1WG6-GH40	1W	Green, 520-530nm	Taiwan Epileds	40*40mil	3.0-3.4V	350mA	70-110LM
GP-1WG6-GL45	1-3W	Green, 520-530nm	Taiwan OPTOTECH	42*42mil	3-3.6V	350-700mA	80-120LM
GP-1WG6-GH45	1-3W	Green, 520-530nm	Taiwan Epileds	45*45mil	3-3.6V	350-700mA	80-120LM
GP-1WB3-GL28	1W	Blue, 455-465nm	Taiwan OPTOTECH	28*28mil	3.0-3.4V	350mA	15-25LM
GP-1WB3-GH30	1W	Blue, 455-465nm	Taiwan Epileds	30*30mil	3.0-3.4V	350mA	15-30LM
GP-1WB3-GH35	1W	Blue, 455-465nm	Taiwan Epileds	35*35mil	3.0-3.4V	350mA	15-30LM
GP-1WB3-GH40	1W	Blue, 455-465nm	Taiwan Epileds	40*40mil	3.0-3.4V	350mA	15-30LM
GP-1WB3-GL45	1-3W	Blue, 455-465nm	Taiwan OPTOTECH	45*45mil	3-3.6V	350-700mA	20-30LM
GP-1WB3-GH45	1-3W	Blue, 455-465nm	Taiwan Epileds	45*45mil	3-3.6V	350-700mA	20-30LM
GP-1WRB-JP45	1-3W	Royal Blue, 450-460nm	China Jingpu	45*45mil	3.0-3.6V	350-700mA	20-30LM
GP-1WY4-J42	1-3W	Yellow, 585-595nm	Taiwan Epistar	42*42mil	2-2.6V	350-700mA	40-60LM
GP-1WY4-G42	1-3W	Yellow, 585-595nm	Taiwan Epileds	42*42mil	2-2.6V	350-700mA	40-60LM
GP-1WC1-G42	1-3W	Orange Amber,600-610nm	Taiwan Epileds	42*42mil	2-2.6V	350-700mA	50-70LM
GP-1WA-JP45-1800K	1-3W	Orange Amber, 1800-2200k with phosphor	China Jingpu	45*45mil	3-3.6V	350-700mA	80-100LM
GP-1WP6-G45-410	1-3W	UVA,410-425nm	Taiwan Epileds	45*45mil	3.2-3.8V	350-700mA	10-15LM
GP-1WP5-G45-395	1-3W	UVA,395-405nm	Taiwan Epileds	45*45mil	3.2-3.8V	350-700mA	5-10LM
GP-1WP3-G45-380	1-3W	UVA,380-390nm	Taiwan Epileds	45*45mil	3.2-3.8V	350-700mA	3-5LM
GP-1WP1-G45-365	1-3W	UVA,365-375nm	Taiwan Epileds	45*45mil	3.2-3.8V	350-700mA	1-5LM
GP-1WR6-G28-660	1W	Deep Red,650-660nm	Taiwan Epileds	28*28mil	2-2.2V	350mA	25-40LM
GP-1WR6-G38-660	1W	Deep Red,650-660nm	Taiwan Epileds	38*38mil	2-2.2V	350mA	30-40LM
GP-1WR6-G42-660	1-3W	Deep Red,650-660nm	Taiwan Epileds	42*42mil	2-2.6V	350-700mA	30-40LM
GP-1WR7-G42-740	1-3W	IR, 740-750nm	Taiwan Epileds	42*42mil	2-2.6V	350-700mA	1-5LM
GP-1WR8-G42-840	1-3W	IR, 845-855nm	Taiwan Epileds	42*42mil	2-2.6V	350-700mA	1-3LM
GP-1WR8-G30-840	1W	IR, 845-855nm	Taiwan Epileds	30*30mil	2-2.2V	350mA	1-3LM
GP-1WR9-G42-940	1-3W	IR, 930-940nm	Taiwan Epileds	42*42mil	2-2.2V	350-700mA	-
GP-1WF3-J33-FULLS	1W	400-800NM Full spectrum	Taiwan Epistar	33*33mil	3.0-3.4V	350mA	80-100LM
GP-3WF3-JP45-FULLS	1-3W	400-800NM Full spectrum	China Jingpu	45*45mil	3-3.6V	350-700mA	100-120LM

(1) All the products in the list are in stock and support sample orders.
(2) In addition to the list, we also accept customization.

---

1w 3w 5w high power led natural white 4000k specifications:

Notes:

1,All dimensions are in millimeters.

2,Tolerance is ±0.1mm unless otherwise noted.

1W 350mA specs:

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=350mA	3.00	--	3.40	V
Thermal Resistance Junction To Board	RΘJ-B	IF=350mA	--	8	--	°C/W
Luminous Flux	Φv	IF=350mA	140		160	lm
Color Temperature	CCT	IF=350mA	6000		6500	K
CRI	Ra	IF=350mA	70	--	--	--
Temperature Coefficient of Forward Voltage	∆VF/∆T	IF=350mA	−−	-2	−−	mV/°C
Reverse Current	IR	VR=5V	−−	−−	10	μ A
Viewing Angle [1]	2Θ1/2	IF=350mA	−−	140	−−	Deg

3w 700mA specs:

■ Electrical/Optical Characteristics--White (At TA=25°C)

Notes：Voltage of 0.2V

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=700mA	3.00	--	3.60	V
Thermal Resistance Junction To Board	RΘJ-B	IF=700mA	--	8	--	°C/W
Luminous Flux	Φv	IF=700mA	260		300	lm
Color Temperature	CCT	IF=700mA	6000		6500	K
CRI	Ra	IF=700mA	70	--	--	--
Temperature Coefficient of Forward Voltage	∆VF/∆T	IF=700mA	−−	-2	−−	mV/°C
Reverse Current	IR	VR=5V	−−	−−	10	μ A
Viewing Angle [1]	2Θ1/2	IF=700mA	−−	140	−−	Deg

1w 3w 5w high power led natural white 4000k application

All kinds of strip and tube.

Switches, keys backlighting

Electronic display panel light

Marker lights,reading lamps.

Outdoor backlighting displays.

External and internal automotive lighting.

Panel light,candle light,downlight ,bulb lights.

Emergency lighting,signal and symbol luminaire, Ect.

About GMKJ LED

Shenzhen Guangmai Technology Ltd is one of the subsidiary of Dingbaohong Group, which is a R&D, production, sales one of the high-tech enterprises, specializing in the production of semiconductor light emitting diode. The main products include all types of light-emitting diode, such as Lamp LED, Chip LED, TOP LED etc. These products can be widely used in electronic displays, lights ndoor or outdoor lighting and backlighting and other fields. the company was founded in 2002 in Shenzhen and the registered capital of 70 millions Hong Kong dollars.

We have high-speed fully automatic solid crystal machine, high-speed automatic welding machine and dispensing machine, and also have high-power led sorting machine to ensure the stability of the products Our products are widely applied to Electronics industry household appliances, electronic toy, monitoring aids city lightening engineering, automotive filed etc

Shipping ways

We can ship by Courier Service such as Fedex, DHL, TNT, UPS EMS …etc.
 Also, Air Freight and Sea Freight depends on clients needs.

Payment methods:

We accept official Bank Wire transfer and for sample amount payment customer can use

Paypal, Western Union, Alipay and Ecrow …etc.



FAQ:

1. How to buy GMKJ LED products?

You can directly contact Harvatek sales team by skype email or make a call. we will respond with quick service maximum within 12 hours.

2. what are the best selling products in EN-Light？

3528, 3030, 3535, 5050 smd led, 1-300w cob leds and power emitter leds.

---

Datasheet:

For more details, please feel free to contact with Guangmai Tech directly.

You can download the English Version datasheet of 1w 3w 5w high power led natural white 4000k from the head of this page.
