Linear UV LED Module for Printing Ink Curing Specs
| Product name | Linear UV LED Module for Printing Ink Curing |
| Part number | GM-150P395-42C1C6-S1D5B |
| Chips brand |
China Sanan chips inside with good quality Pure golden wire 99.99% used for long lifespan and durability |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
135-150vdc IFmax 1000mA 42S1P with 42 chips on board |
| Luminous/ Radiant Flux |
40000-50000mW
Attention: |
| Wavelength/Color |
Regular one with 395nm.
We have also customised type in other UV wavelength such as:
|
| Power | Max 150W |
| Package material |

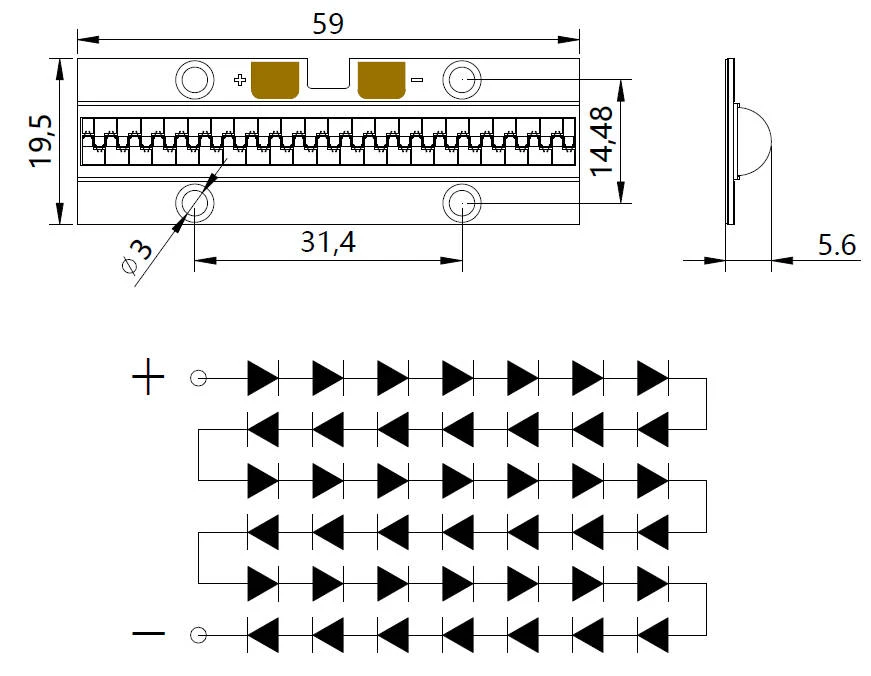

Ceramic pkg with 59x19.5mm |
| Lighting angle |
Linear dome quartz glass lens with 60 degree lighting angle |
| Price | Please contact with GMKJ Sales team for the Price |
| Warranty |
3-4 years 100% tested all the LEDs before shipment! |
| OEM service |
1. SKD parts available; 2. Customised LED board with the board size/LED qty/input voltage you need can be supported |

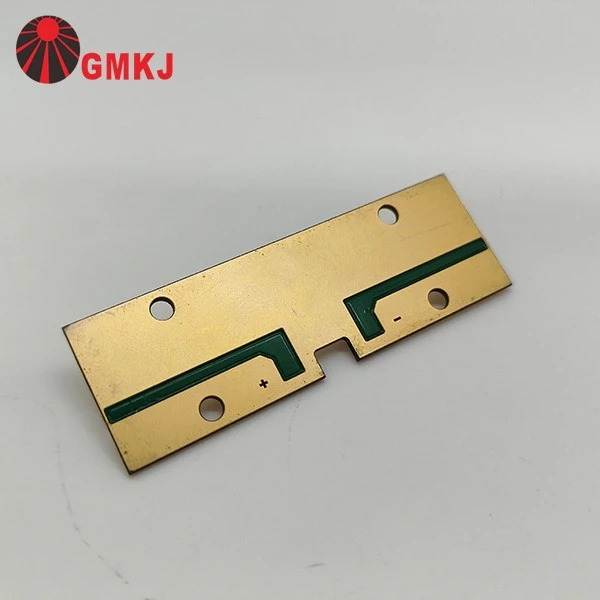

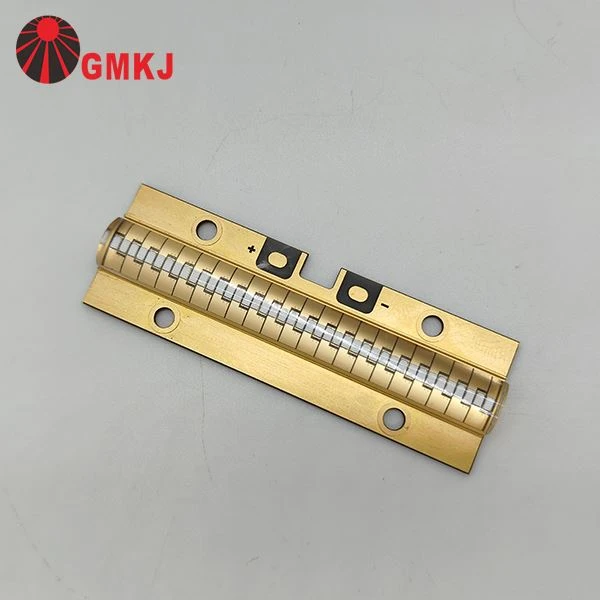

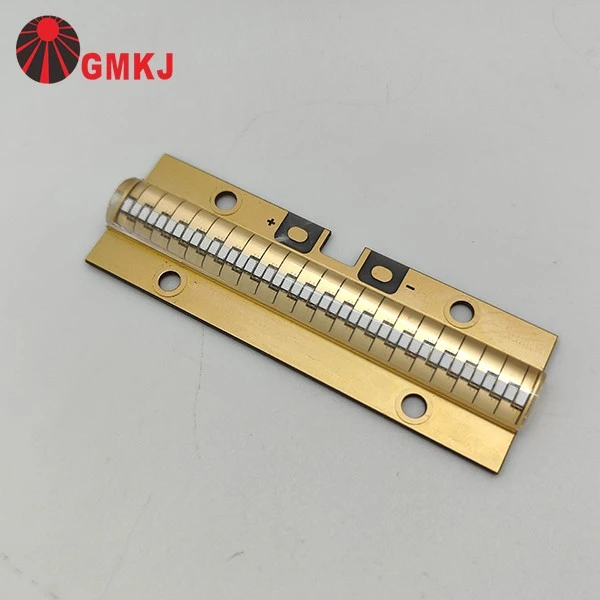

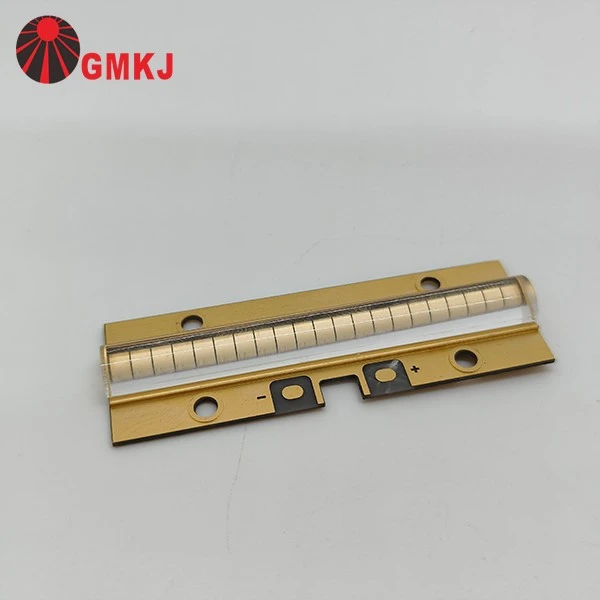

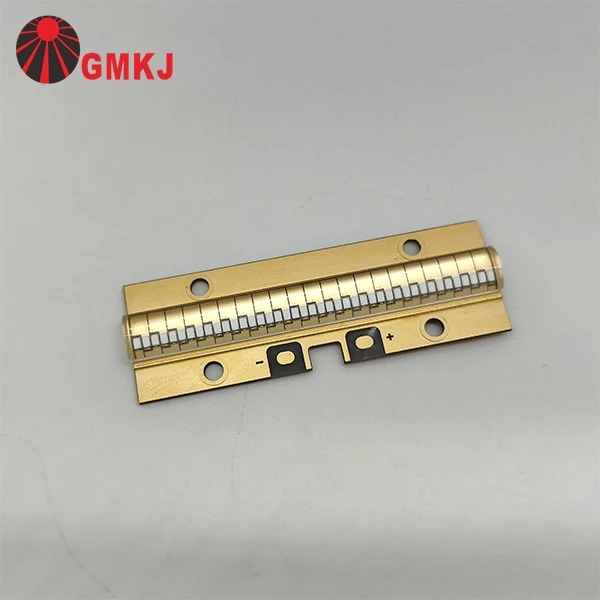

Linear UV LED Module for Printing Ink Curing Picture
Linear UV LED Module for Printing Ink Curing Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=700mA |
135 |
-- |
150 |
V |
|
Radiant Flux |
Φe |
IF=700mA |
40000 |
-- |
50000 |
mW |
|
Peak wavelength |
λp |
IF=700mA |
395 |
-- |
400 |
nm |
|
Thermal Resistance Junction To Soldering Pad |
RΘJ-S |
IF=700mA |
-- |
3 |
-- |
°C/W |
|
Viewing Angle [1] |
2Θ1/2 |
IF=700mA |
−− |
60 |
−− |
Deg |

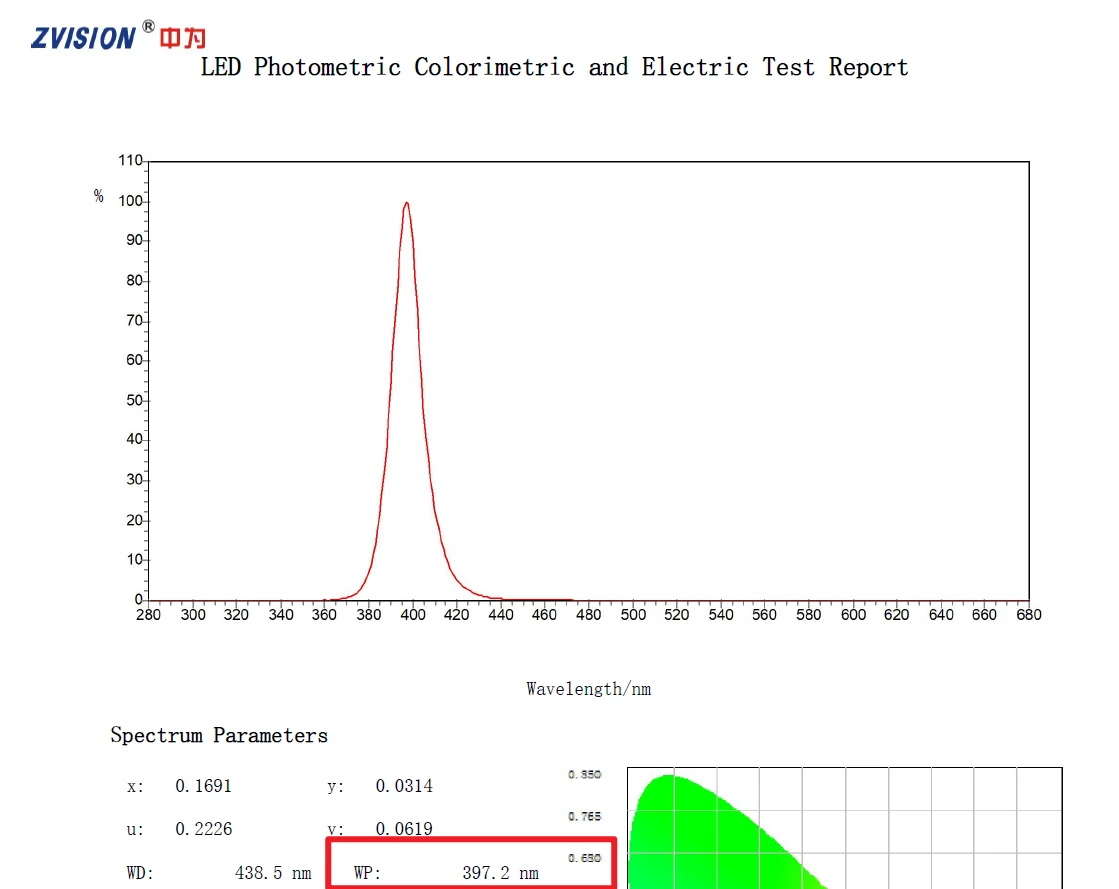

395nm UVA Spectrum Test report, every LED gets tested and approved before shipment!

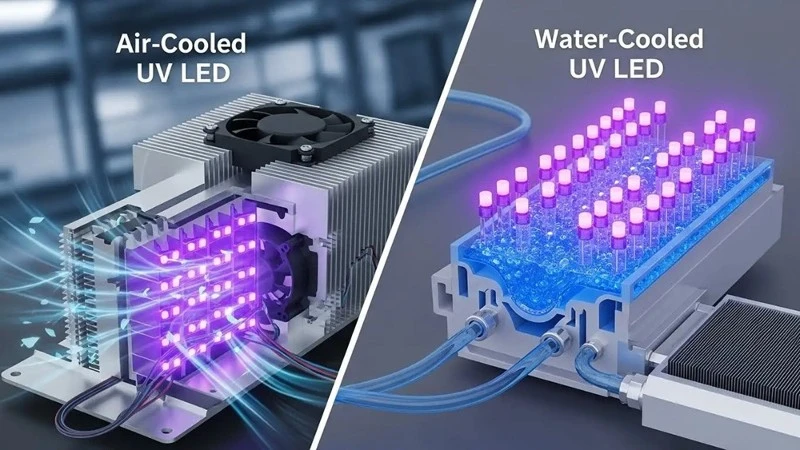

Why Water Cooling Is Better for High-Power UV LED Curing Systems?
When it comes to high-power UV LED curing systems, heat management plays an important role in overall performance and service life. Both fan cooling and water cooling can be used, but water cooling offers several advantages, especially for industrial printing applications.
1. Longer LED Service Life
Excessive heat is one of the main factors affecting LED lifetime. Water cooling can remove heat more efficiently from the LED module, helping to keep the junction temperature under control. Lower operating temperatures reduce thermal stress and help extend the service life of UV LEDs.
2. More Stable Operating Temperature
Compared with fan cooling, a water cooling system can provide more consistent temperature control. This helps reduce temperature fluctuations during continuous operation, keeping the UV output more stable throughout the curing process.
3. Less Light Output Degradation
High operating temperatures can accelerate LED aging and cause faster light output degradation over time. By maintaining a lower and more stable operating temperature, water cooling helps minimize thermal-related degradation and maintain more consistent UV intensity.
4. More Compact System Design
Water cooling can achieve efficient heat dissipation without requiring large cooling fans and bulky airflow channels. This makes it possible to design more compact UV LED curing modules, which is particularly useful when installation space is limited.
5. Ideal for Continuous Industrial UV Curing
In printing applications, UV LED modules often need to operate at high power for extended periods. Water cooling provides reliable thermal management, making it a suitable solution for demanding applications such as UV ink curing, digital printing, and industrial printing lines.
Conclusion
For high-power UV LED curing applications, water cooling is more than just a cooling method. It helps maintain stable operating temperatures, reduce thermal stress, slow down light output degradation, and achieve a more compact system design. These advantages make water-cooled UV LED modules an excellent choice for demanding industrial printing applications.
