60 Degree IR 850nm 940nm 2835 SMD LED Specs
| Product name | 60 Degree IR 850nm 940nm 2835 SMD LED |
| Part number | GC-2835R845-1CC6-L50 |
| Chips brand | Taiwan Epileds chips inside |
| Input |
1.4-1.8vdc with 80mA, max with 100mA |
| Radiation Power | 50-100mW at 80mA |
| Lighting Efficiency | IR invisiable Lights, no lighting efficiency calculated |
| Wavelength/Color |
IR 850nm: 845-855nm IR 940nm: 940-950nm |
| Power | 0.2 Watt |
| Package material | PCT 2835 smd leds pkg with 2:8 pad |
| Lighting angle |
60 degree dome silicone lens 2835 smd led pkg |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

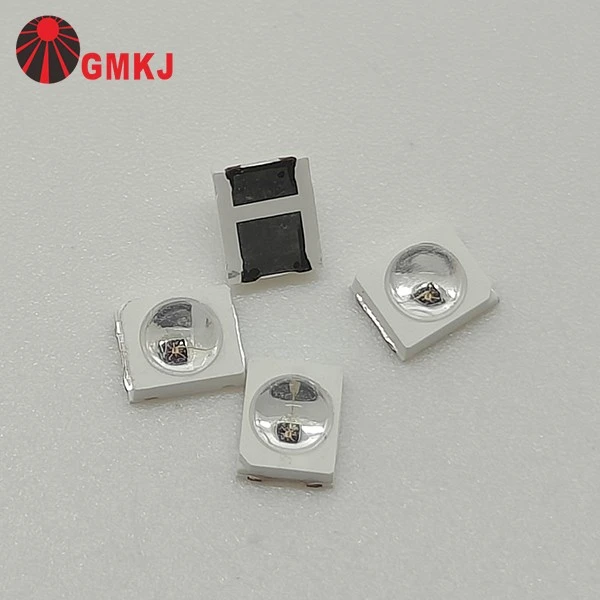

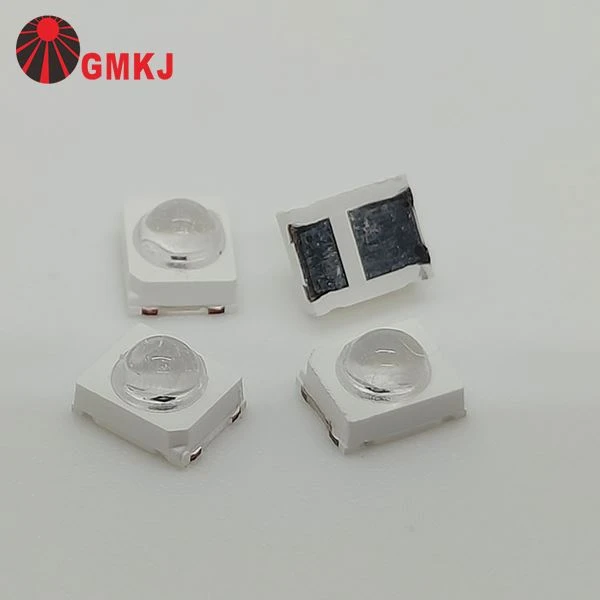

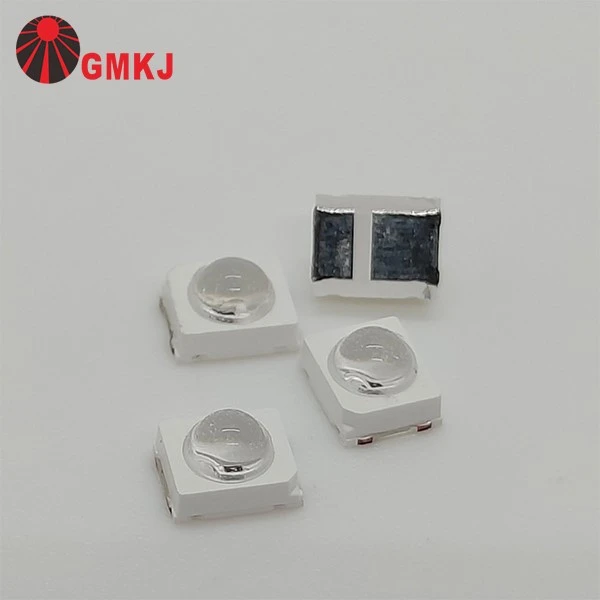

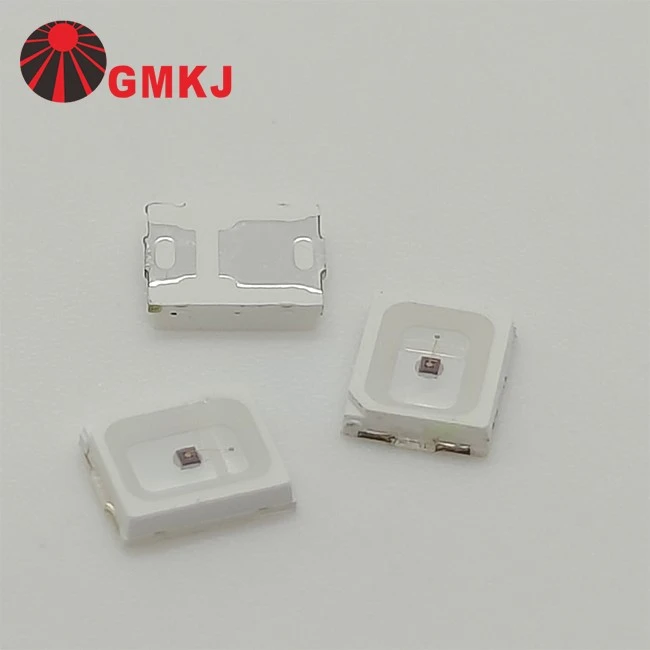

60 Degree IR 850nm 940nm 2835 SMD LED Picture
Aluminum LED PCBA Assembled by GMKJ (PCB drawing and BOM provided by our clients)
60 Degree IR 850nm 940nm 2835 SMD LED Dimension (IR LEDs cut side mark and big pad: anode +)
60 Degree IR 850nm 940nm 2835 SMD LED Electrical Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=80mA |
1.40 |
-- |
1.80 |
V |
|
Radiant Flux |
Φe |
IF=80mA |
50 |
-- |
100 |
mW |
|
Peak wavelength |
λp |
IF=80mA |
845 |
-- |
855 |
nm |
|
Temperature Coefficient of Forward Voltage |
∆VF/∆T |
IF=80mA |
−− |
-2 |
−− |
mV/°C |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=80mA |
-- |
8 |
-- |
°C/W |
|
Viewing Angle |
2Θ1/2 |
IF=80mA |
−− |
60 |
−− |
Deg |
Why we need to use 60 degree lighting angle instead of 120 degree lighting angle for IR 850nm smd leds?
When using IR 850nm SMD LEDs, the beam angle (60° vs. 120°) makes a big difference in how the infrared energy is distributed:
🔹 1. Irradiance (Intensity per unit area)
60° beam angle:
Light is focused into a narrower cone.
Much higher irradiance (mW/cm²) at the target.
Better for longer-distance illumination (CCTV night vision, ANPR, security cameras, IR spotlights).
120° beam angle:
Light spreads out widely.
Lower irradiance per unit area.
Suitable only for close-range or wide-area applications (gesture recognition, short-range sensing).
🔹 2. Effective Distance
Narrower angles (60°) concentrate IR photons forward → illumination reaches further.
Wider angles (120°) spread photons → brightness per area decreases, so effective distance is much shorter.
🔹 3. System Efficiency
If your target (camera sensor, object) only needs IR in a specific field of view (FOV), using 120° wastes energy outside the camera's vision.
Example: If a camera FOV is ~60°, then a 120° LED wastes ~50%+ of emitted IR.
Using a 60° LED matches the optics, improving efficiency.
🔹 4. Heat & Power Management
To get the same intensity at distance with 120° LEDs, you'd need many more LEDs, increasing cost, PCB space, and heat load.
A 60° beam saves LED count and power for the same effective result.
✅ Summary:
We use 60° lighting angle instead of 120° for 850nm IR SMD LEDs when:
We need longer range illumination.
We want to match camera FOV.
We need higher irradiance per unit area without adding more LEDs.
⚡ If the application is close range and wide coverage (gesture sensing, facial recognition at <1m), then 120° makes sense. Otherwise, 60° (or even 30° with a lens) is preferred for CCTV, security, and industrial use.
| 60 Degree 2835 smd leds IR 850nm | 120 Degree 2835 smd leds IR 850nm |
|
|
 |
60 Degree IR 850nm 940nm 2835 SMD LED Applications
60 Degree IR 850nm 940nm 2835 SMD LED Applications
CCTV / IP security cameras
60° matches most camera FOV, avoids wasted light.
Longer illumination distance (10–30m depending on power).

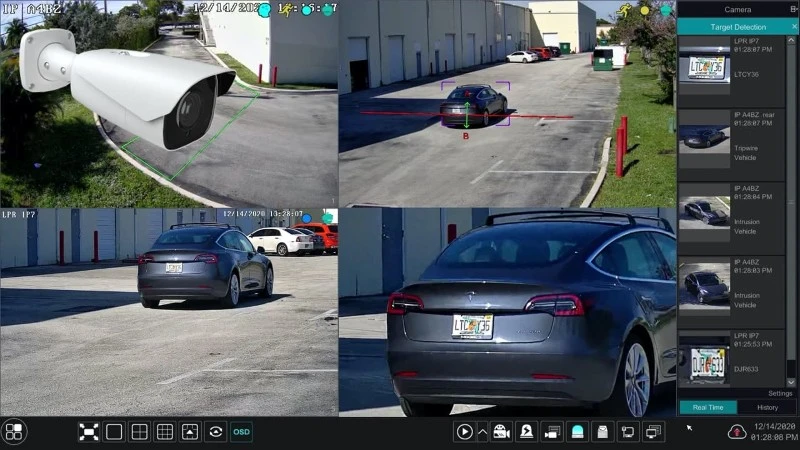

ANPR / LPR systems (Automatic Number Plate Recognition)
Stronger, more concentrated IR helps reflect from license plates.
Facial recognition / biometric systems
Mid-range use (1–5m), high intensity improves detection accuracy.
Night vision devices / hunting cameras
Good for mid- to long-range IR illumination.
Industrial machine vision
Detecting defects, barcodes, or objects with strong IR reflection.
