Production Introduction

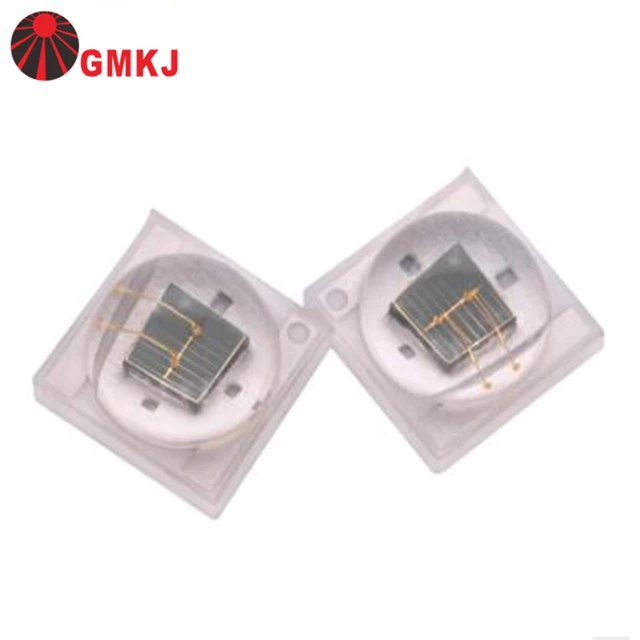

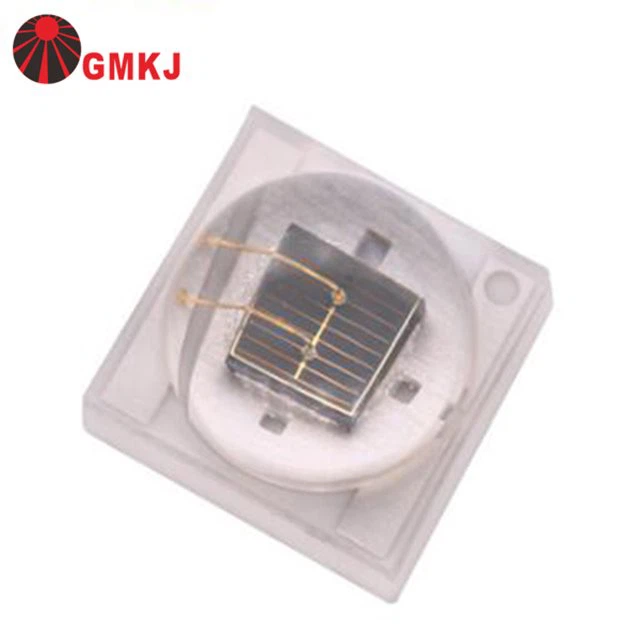

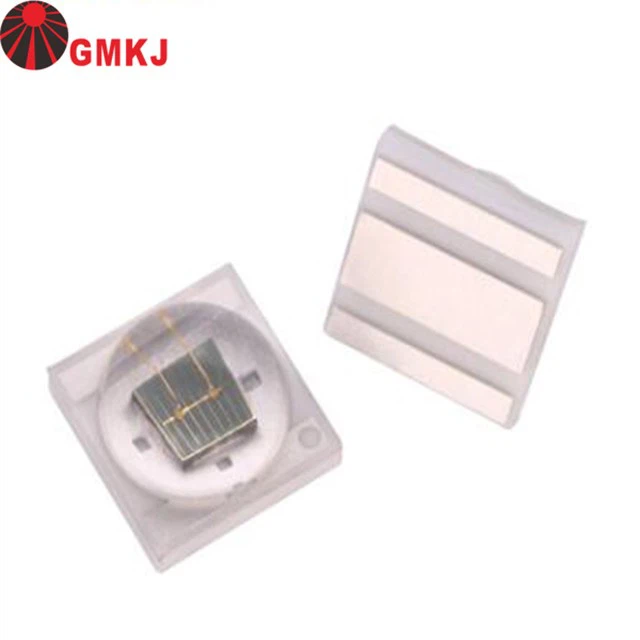

| Name | High radiation power 3535 smd led 405nm 1w 3w uv led |
| Power | 3w |
| Current | 700mA |
| Voltage | 3.6-4.0vdc |
| Radiant flux | 800-1000mW |
| Chip brand | Epileds |
| Wavelength | 395-405nm |
| Life-span | 50000 hours |
| Viewing angle | 120° |
| Usage | UV curing machine, uv curing system, industrial sterilization, uv led lamp, industrial exposure, disinfection sterilization, water system and so on |
Product parameters
Features
* Pure violet light: the natural color glows without discoloration.
* Ceramic substrate: Aluminum nitride ceramic substrate with high strength, high thermal conductivity and high insulation is used.
* Core process: high temperature bonding nano-silver paste solid crystal process.
* Ultra-long lifespan: UV LEDs generally have a lifespan of 5000-15000 hours, which is more than 10 times that of traditional mercury lamp curing machines.
* High efficiency and energy saving: UV LED light conversion rate is as high as 40%, light output is stable, and energy consumption is low.
* Safety and environmental protection: ULED adopts DC low-voltage drive, does not contain mercury, is low-carbon and environmentally friendly, and is a safer and more environmentally friendly alternative to traditional light source technology.
About uv light
UV purple light classification
1. UVA: curing printing, beauty and nail art, insect trapping, jewelry testing, money counting and copying, plant production 320-420m, also known as long-wave ultraviolet
2. UVB: Medical phototherapy, animal breeding, plant growth, 285-315nm, also known as medium wave ultraviolet.
3. UVC: sterilization, physical preservation, air, purification, water purification, 200-275m is also known as short-wave ultraviolet, our factory produces 250-280n wavelength UV LEDs that are recognized by the world as having good sterilization effect.
