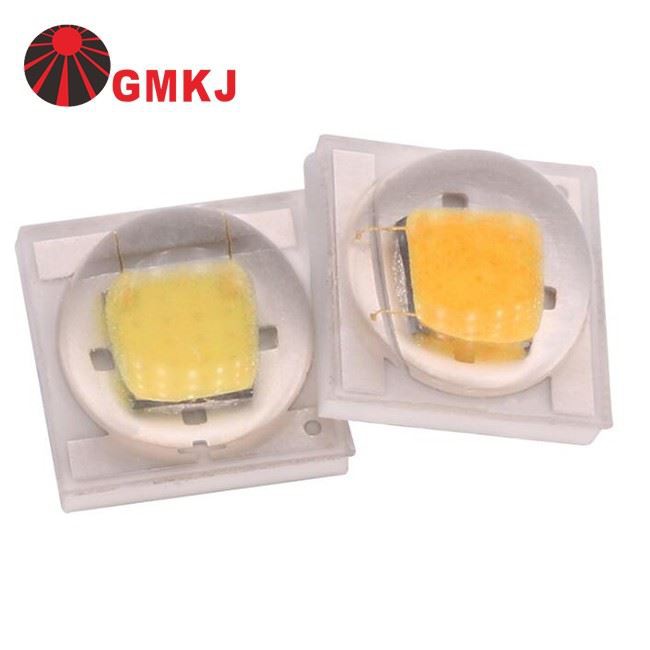

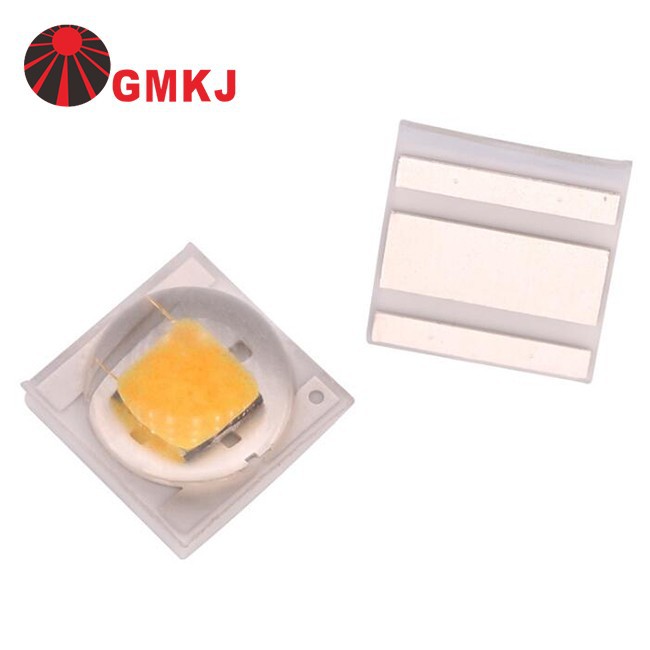

3535 Specifications Smd Led 1-3 Watt 4000k CRI>80

Guangmai Technology is professional in making the epistar 3535 specifications smd led 1-3 Watt 4000k CRI>80.

Product Description

·high luminous efficacy 160lm/w

·ceramic base with high heat conductivity

·flip Chip Technology, no gold wire soldering

·operating current 350-700mA

·>50000Hrs

·RoHS compliant , LM-80





GT-3535-FLIP35-1W	1-2W	white 2700-6500k	Longda	35*35mil FLIP	3-3.4VDC	300-600mA	140-150LM
GT-3535-FLIP43-3W	1-3W	white 2700-6500k	Longda	43*43mil FLIP	3-3.6VDC	300-800mA	150-160LM
GT-3535-FLIP55-4W	1-4W	white 2700-6500k	Longda	55*55mil FLIP	3-3.6VDC	300-1200mA	170-180LM
GT-3535-FLIP55-5W	1-5W	white 2700-6500k	Sanan	55*55mil FLIP	3-3.6VDC	1500mA	400-600LM
GT-3535-OSR30	1-2W	white 2700-6500k	Osram	30*30mil	3-3.6VDC	300-600mA	140-150LM
GT-3535-OSR40	1-4W	white 2700-6500k	Osram	40*40mil	3-3.6VDC	300-1000mA	155-170LM
GT-3535R-G42	1-3W	RED 620-630nm	Epileds	42*42mil	2-2.4VDC	300-700mA	40-60LM
GT-3535R-G42-660	1-3W	Deep red 650-660nm	Epileds	42*42mil	2-2.4VDC	300-700mA	30-50LM
GT-3535G-G45	1-3W	Green 520-530nm	Epileds	45*45mil	3-3.4VDC	300-700mA	80-120LM
GT-3535B-G45	1-3W	Blue 455-465nm	Epileds	45*45mil	3-3.4VDC	300-700mA	20-30LM
GT-3535Y-J42	1-3W	Yellow 585-595nm	Epistar	42*42mil	2-2.4VDC	300-700mA	30-50LM

---



3535 specifications smd led 1-3 Watt 4000k CRI>80 specifications:

CCT:2900-6500K

Current:350-700mA

Flip Chip Technology, no gold wire soldering

1W 350mA specs:

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=350mA	2.80	--	3.40	V
Thermal Resistance Junction To Board	RΘJ-B	IF=350mA	--	8	--	°C/W
Luminous Flux	Φv	IF=350mA	140		150	lm
Color Temperature	CCT	IF=350mA	4000		4200	K
CRI	Ra	IF=350mA	70	--	--	--
Temperature Coefficient of Forward Voltage	∆VF/∆T	IF=350mA	−−	-2	−−	mV/°C
Reverse Current	IR	VR=5V	−−	−−	10	μ A
Viewing Angle [1]	2Θ1/2	IF=350mA	−−	120	−−	Deg



Precautions:

    1) Pressure on the LEDs will influence to the reliability of the LEDs. Precautions should be taken to avoid strong pressure on the LEDs. Do  not put stress on the LEDs during heating.

    2) Re-soldering should not be done after the LEDs have been soldered. If re-soldering is unavoidable, LED`s characteristics should be  carefully checked before and after such repair.

    3) Do not stack assembled PCBs together. Since materials of LEDs is soft, abrasion between two PCB assembled with LED might cause  catastrophic failure of the LEDs.

3535 specifications smd led 1-3 Watt 4000k CRI>80 for torch light application

• Indoor Lighting: Spotlight, Downlight

• Outdoor Lighting: Street Light, Tunnel Light, Security Light, Area Light, Stadium/Arena Light

• Industrial Lighting: High Bay Light, Low Bay Light

• Consumer Lighting: Torch Light

About Guangmai LED/ GMKJ LED

Delivery:

1. Package in reel with aluminium foil bag.

2. For payment: we can accept paypal, T/T, WesternUnion and Secure payment.

3. For shipping: normally we use DHL, Fedex, UPS, TNT and EMS. If you want to choose other delivery way, please contact us.

4. Item will arrive within 3-7 working days after being posted.

Payment methods:

Credit card, e-checking, bank transfer / wire transfer, Alipay, Wechat payment, Western Union, etc.



Competitive Advantages of our LEDs:

  Good quality guarantee, 50000 hours lifespan, 2-5 years warranty.

•  Professional engineers and experienced workers.

• Short delivery time, normally only 1-7 working days.

• Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.

• Various module type, such as SMD LED 2835 , 5050 , 5630 , 3014 , 5730 , 7020 , 4014 , 3020 , 3030 , 2525, 3535 , 1-5W high power LED , 5-1500W integrated LED / COB LED, Dip LED Diode, Filament LED, etc.




---

Datasheet:

For more details, please feel free to contact with Guangmai Tech directly.

You can download the English Version datasheet of epistar 3535 smd led 1w 2w 3w 350mA 700mA for torch light from the head of this page.
