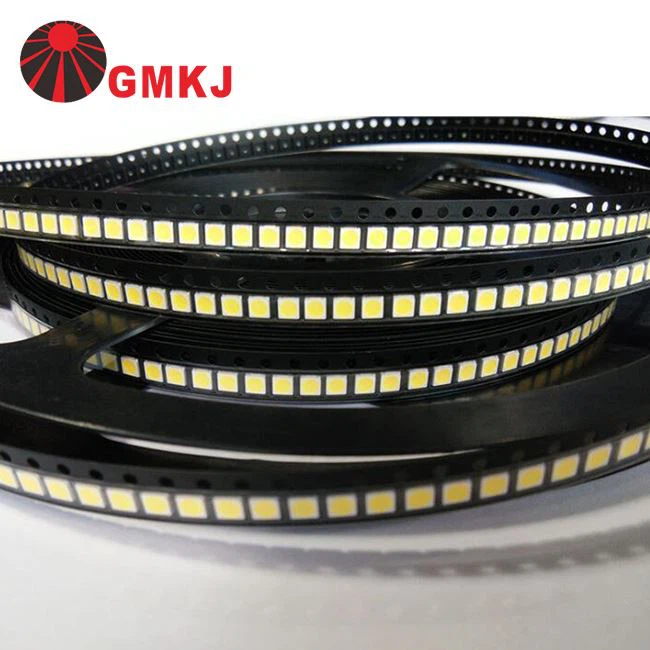

Guangmai Technology is professional in making the led 1w high power smd led 3030 2835.
Product Features:
1.Germany Hereaus diameter 15um gold wires
2.Black copper material led base
3.USA Intermatix phosphor powder
4.USA Dow corning silicon glue
5.LM80 certification
6.60000hours,70%light remain
Remark:
LED Emitting Color: Dual colours, any two combination of Warm White / Natural White / Cool White / Blue / Red / Yellow / Amber / UV / Pink.
Forward voltage of each colour: 2.8-3.6V for Green/Blue/Cool White/Warm White,
1.8-2.4V for Red/Amber/Yellow
Wavelength: Red 615-630nm, Green 515-530nm, Blue 450-470nm, Yellow 585-595nm, Amber 600-610nm.
Color Temperature: 2800-3200K for warm white, 6000-6500K for cold white. (can be customized)
CRI: 80Ra, 90Ra, 95Ra, 97Ra, (can be customized)
led 1w high power smd led 3030 2835 specifications:
3V 350mA specs:
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage | VF | IF=350mA | 2.80 | -- | 3.40 | V |
Thermal Resistance Junction To Board | RΘJ-B | IF=350mA | -- | 8 | -- | °C/W |
Luminous Flux | Φv | IF=350mA | 150 | 160 | lm | |
Color Temperature | CCT | IF=350mA | 6000 | 6500 | K | |
CRI | Ra | IF=350mA | 80 | -- | -- | -- |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=350mA | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=5V | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=350mA | −− | 120 | −− | Deg |
6V 150mA specs:
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage | VF | IF=150mA | 5.80 | -- | 6.40 | V |
Thermal Resistance Junction To Board | RΘJ-B | IF=150mA | -- | 8 | -- | °C/W |
Luminous Flux | Φv | IF=150mA | 140 | 150 | lm | |
Color Temperature | CCT | IF=150mA | 6000 | 6500 | K | |
CRI | Ra | IF=150mA | 80 | -- | -- | -- |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=150mA | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=10V | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=150mA | −− | 120 | −− | Deg |
led 1w high power smd led 3030 2835 application
About Guangmai LED/ GMKJ LED
At present, the company mainly researches, develops and produces various types of LED chips.
The core products includes 2835， 3030， 5050， 5630， 3528 and other common models of LED chips
Delivery:
Payment methods:
Credit card, e-checking, bank transfer / wire transfer, Alipay, Wechat payment, Western Union, etc.
FAQ:
1. Q:Could I place the sample order for further checking before mass production?
A:Absolutely and welcome to take the samples for testing first.
2. Q:How long is the order lead time?
A:The sample could be finished within 7 days,and normally the mass production could be finished within 15days,it depends on the quantity as well.
3. Q:How is the warranty?
A:Our company offers 3-year warranty for all products.
4. Q:How do you ship the goods to us?
A:Usually,We would ship the goods via Express like UPS/DHL/Fedex etc,and it would take around 5－7 days.With large quantity,we suggest to send them by sea,and it would take around 15-20 days.
Datasheet:
For more details, please feel free to contact with Guangmai Tech directly.
You can download the English Version datasheet of led 1w high power smd led 3030 2835 from the head of this page.
