80 degree Lighting Angle 3030 SMD LED Specs
| Product name | 80 degree Lighting Angle 3030 SMD LED |
| Part number | GD-3030WXXX-1CD8-S1E5M-R70 |
| Chips brand | China Sanan flip chips |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
3vdc IFmax 20000mA |
| Luminous/ Radiant Flux |
340-360lm at 700mA |
| Lighting Efficiency |
Around 190-210 LM/W at 350mA |
| Wavelength/Color |
2700K, 3000K, 4000K, 5000K, 5700K, 6500K CRI>80 |
| Power |
350mA with 1W; 700mA with 2.5W; 1000mA with 3W; 1500mW with 5W; Ifmax 2000mA with 6W |
| Package material |
ALN ceramic, 3.0x3.0 mm size smd led |
| Lighting angle |
80 degree lighting angle, dome silicone lens |
| Price | Please contact with GMKJ for the Price |
| Warranty | 3-4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

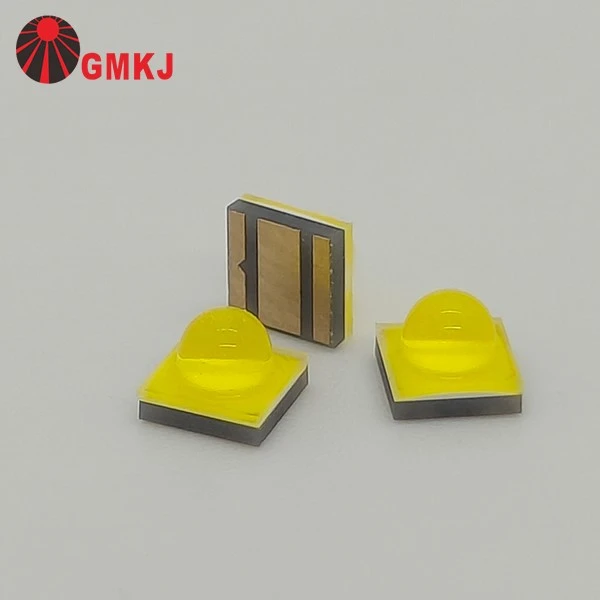

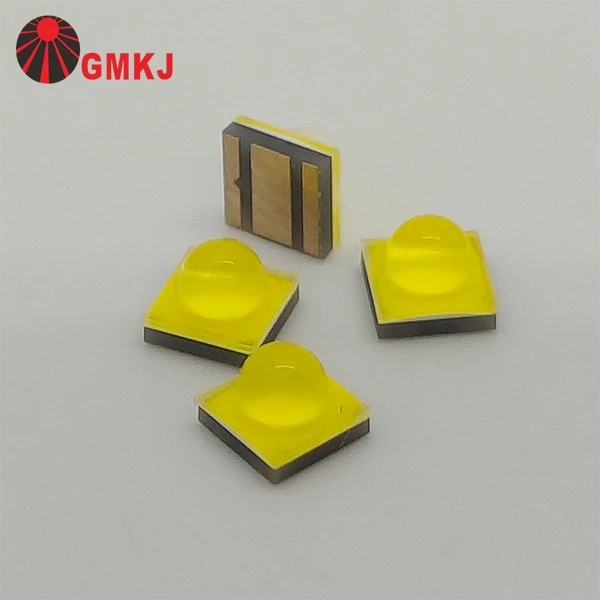

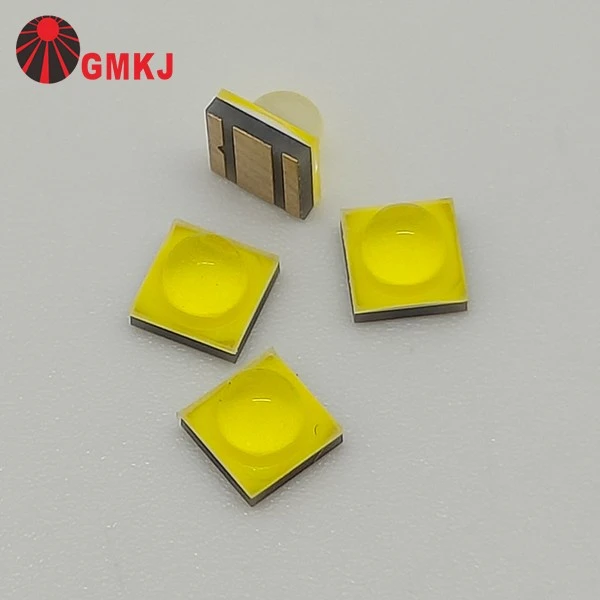

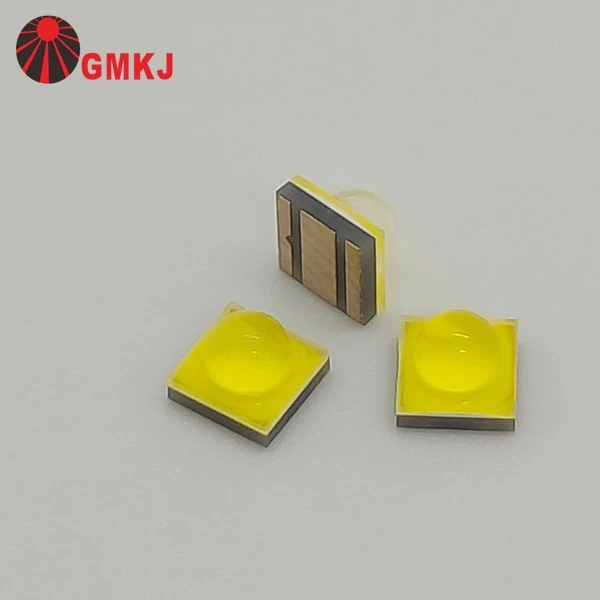

80 degree Lighting Angle 3030 SMD LED picture
 |
 |
|
3030 smd led, ceramic pkg with lighting angle 120 degree White color |

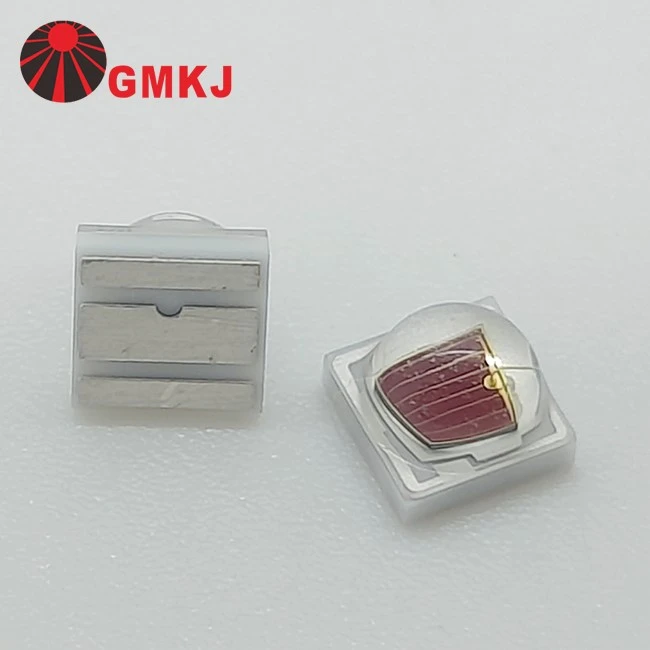

3030 smd led, ceramic pkg with lighting angle 120 degree Red color: 620nm, 630nm, 660nm Infrared: 730nm, 850nm, 940nm Amber: 590nm, 600nm Green: 520-530nm Blue: 450nm, 460nm, 470nm UV: 365nm, 385nm, 395nm, 405nm, 415nm, 425nm |

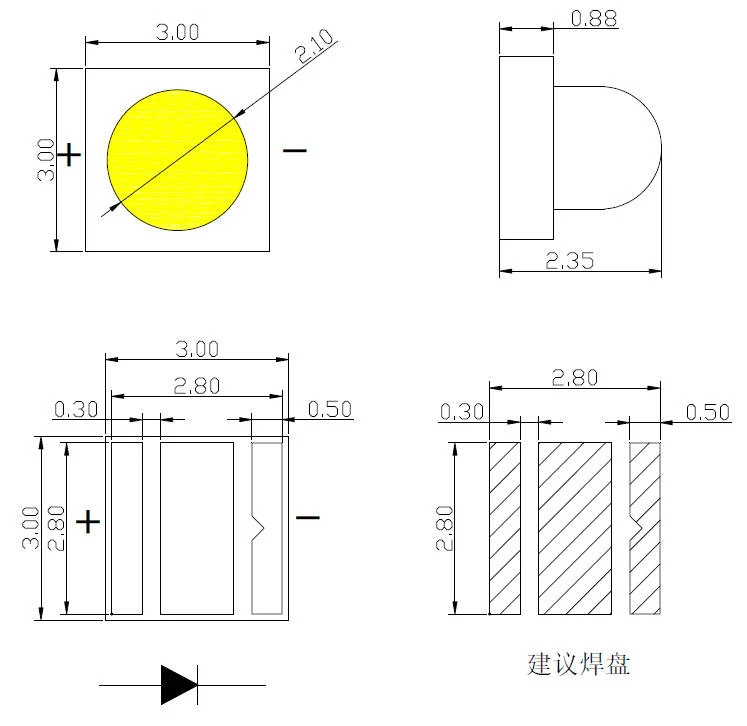

80 degree Lighting Angle 3030 SMD LED Dimension
80 degree Lighting Angle 3030 SMD LED Electrical Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=700mA |
2.80 |
-- |
3.20 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
5 |
-- |
°C/W |
|
Luminous Flux |
Φv |
IF=700mA |
340 |
-- |
380 |
lm |
|
PN: GD-3030W270-1CD8-S1E5M-R70 |
IF=700mA |
2550 |
2700 |
2850 |
K |
|
|
PN: GD-3030W300-1CD8-S1E5M-R70 |
IF=700mA |
2800 |
3000 |
3200 |
K |
|
|
PN: GD-3030W400-1CD8-S1E5M-R70 |
IF=700mA |
3700 |
4000 |
4300 |
K |
|
|
PN: GD-3030W500-1CD8-S1E5M-R70 |
IF=700mA |
4700 |
5000 |
5300 |
K |
|
|
PN: GD-3030W570-1CD8-S1E5M-R70 |
CCT |
IF=700mA |
5400 |
5700 |
6000 |
K |
|
PN: GD-3030W650-1CD8-S1E5M-R70 |
CCT |
IF=700mA |
6100 |
6500 |
6900 |
K |
|
CRI |
Ra |
IF=700mA |
70 |
-- |
-- |
-- |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] |
2Θ1/2 |
IF=700mA |
−− |
80 |
−− |
Deg |
