Products Description
High power 12V 1500mA 10W 18W 5050 SMD LED Specs:
| Product name | High power 12V 1500mA 10W 18W 5050 SMD LED |
| Part number | GD-5050W600-4CD0-SA55M |
| Chips brand | China Sanan 55mil chip*4 chips inside, 4S1P |
| Input |
12vdc with max 1500mA |
| Flux | 2000-2500lm at 1500ma |
| Lighting Efficiency | Around 120-140lm per watt at 1500mA fully power loaded |
| Color |
2700K, 3000K, 4000K 5000K, 5700K and 6500K optional CRI: Ra>70 for outdoor lights CRI: Ra>80 for indoor lights |
| Power |
10-20W Watt |
| Ceramic package material |
Ceramic package; Both dome silicone lens and flat package 5050 smd leds are available. |
| Lighting angle |
120 degree dome silicone lens or 120 degree flat package without lens |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 3 years |
| OEM service |
1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here. |
High power 12V 1500mA 10W 18W 5050 SMD LED picture:
| Dome silicone lens 5050 smd leds | Flat packge 5050 smd leds |
 |
 |

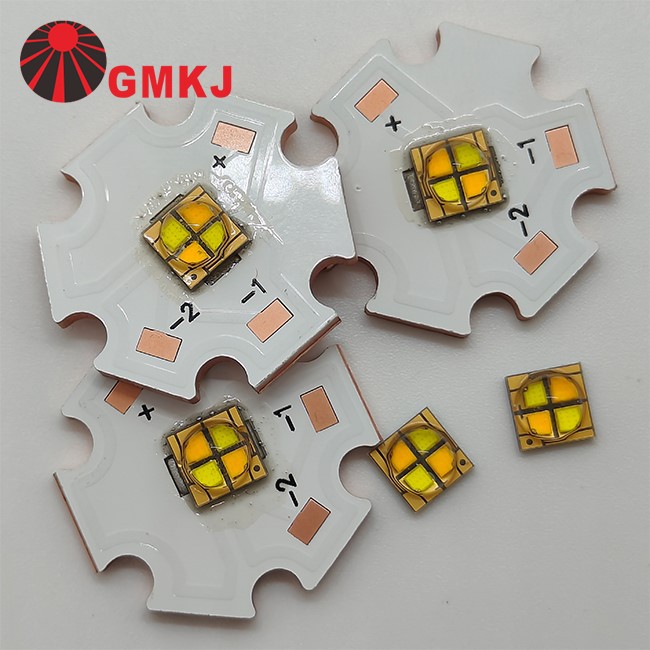

High power 12V 1500mA 10W 18W 5050 SMD LED star pcb boards soldering service:
High power 12V 1500mA 10W 18W 5050 SMD LED dimensions:
High power 12V 1500mA 10W 18W 5050 SMD LED Eletrical specs:
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=1500mA |
12.00 |
-- |
14.00 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=1500mA |
-- |
5 |
-- |
°C/W |
|
Luminous Flux |
Φv |
IF=1500mA |
2000 |
-- |
2200 |
lm |
|
Color Temperature |
CCT |
IF=1500mA |
6000 |
-- |
7000 |
K |
|
CRI |
Ra |
IF=1500mA |
70 |
-- |
-- |
-- |
|
Reverse Current |
IR |
VR=20V |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=1500mA |
−− |
120 |
−− |
Deg |
Application
High efficiency EMC 5050 SMD LED 5W 6V 30V applications
High efficiency EMC 5050 SMD LED 5W 6V 30V is mainly used for Automotive lighting, UFO lights, LED flash light, stadium lights and other applications.
