Round Shade 5050 Smd Led For Flash Light

Round Shade 5050 smd led for Flash Light Specs:

Product name	Round Shade 5050 smd led for Flash Light
Part number	GD-5050WXXX-1CC0-SA72YBP
Chips brand	China Sanan 72mil vertical chip
Input	3-4vdc with max 5000mA forward current
Flux	2000-2500lm with full power loaded at 5000mA
Lighting Efficiency	Around 120 LM/W at 5000mA
Color	2700K, 3000K, 4000K, 5000K, 5700K and 6500K available. CRI can be Ra>70, Ra>80 optional
Power	20 Watt
Package material	ALN ceramic base
Lighting angle	120 degree with flat quartz glass lens
Brand and manufacturer	GMLEDs, GMKJ
Warranty	3 years
OEM service	1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here.

Why do we need to use vertical chips for those LED flash light?

Vertical structure chips are more suitable for flashlights mainly because they have many advantages in high-current applications, light efficiency, high power, and thermal characteristics.

Here are the details:

Advantages of Vertical Structure Chips

High Current Applications: Vertical structure chips can provide higher current density, making them suitable for lighting devices such as flashlights that require high brightness.

Light Efficiency: Vertical structure chips can achieve higher luminous efficiency, that is, produce higher light output with the same input power, thereby achieving more energy-saving and environmentally friendly lighting.

High Power: Vertical structure chips can support higher power loads, which is particularly important for lighting devices such as flashlights that require high-power illumination.

Thermal Characteristics: Vertical structure chips have better thermal characteristics and can dissipate heat more effectively, avoiding local high temperatures and extending the service life of the chips.

Application of Vertical Structure Chips in Flashlights

High-power LED Chips: High-power LEDs used in flashlights, headlamps, bicycle lights, camping lights, and other outdoor mobile lighting applications are almost all vertical chips.

From the above analysis, we can see that vertical structure chips are very suitable for use in lighting devices such as flashlights due to their unique advantages, including high brightness, high efficiency, and good thermal management.

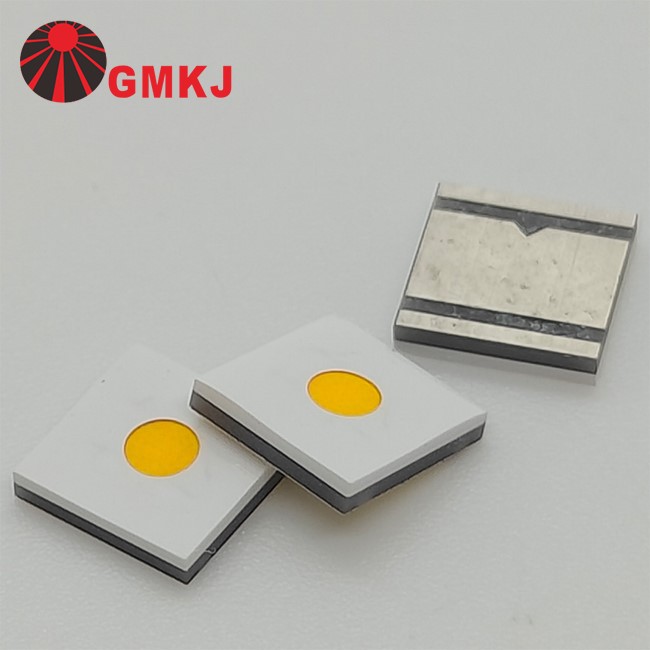

Round Shade 5050 smd led for Flash Light picture:

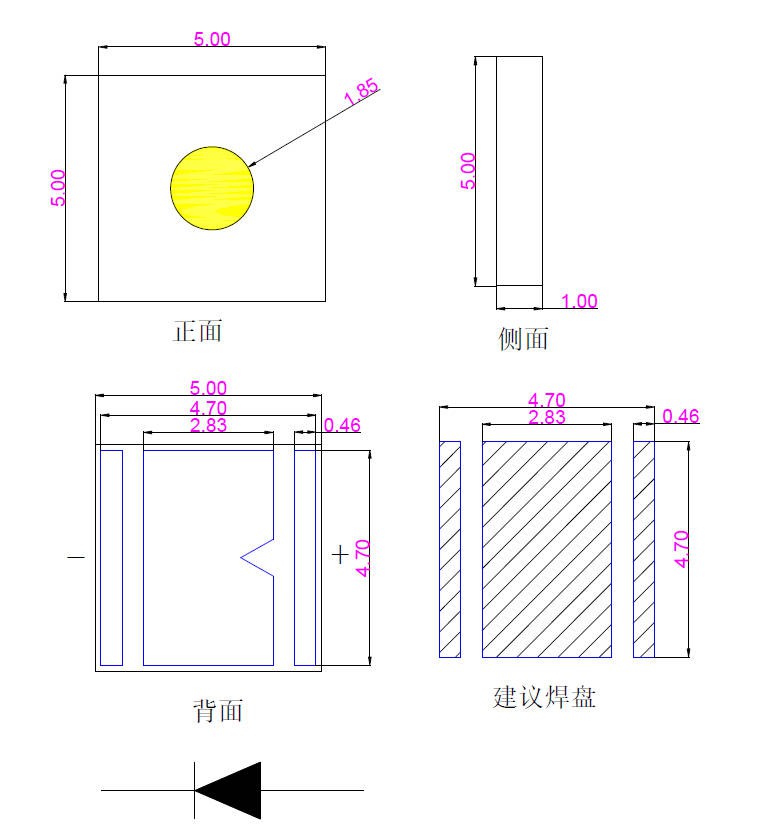

Round Shade 5050 smd led for Flash Light dimensions:



Round Shade 5050 smd led for Flash Light Eletrical specs:

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=5000mA	3.80	--	4.20	V
Thermal Resistance Junction To Board	RΘJ-B	IF=5000mA	--	2	--	°C/W
Luminous Flux	Φv	IF=5000mA	2000	--	2500	lm
Part Number: GD-5050W300-1CC0-SA72YBP	CCT	IF=5000mA	2800	--	3200	K
Part Number: GD-5050W400-1CC0-SA72YBP	CCT	IF=5000mA	3700	--	4300	K
Part Number: GD-5050W500-1CC0-SA72YBP	CCT	IF=5000mA	4700	--	5300	K
Part Number: GD-5050W650-1CC0-SA72YBP	CCT	IF=5000mA	6200	--	6800	K
CRI	Ra	IF=5000mA	70	--	--	--
Reverse Current	IR	VR=5V	−−	−−	10	μ A
Viewing Angle	2Θ1/2	IF=5000mA	−−	120	−−	Deg

Advantages of Circular Laser LED Beads as Flashlight Sources

High Brightness: Provides bright and vivid light, suitable for indoor and outdoor lighting, billboards, and other applications requiring high brightness output.

High Efficiency: Adopting direct insertion into the circuit board (PCB) process reduces power loss and improves energy efficiency.

Long Lifespan: Uses high-quality LED chips and high-density packaging technology, capable of withstanding harsh environments and high temperatures, reducing maintenance costs.

Energy Saving and Environmental Protection: LED technology consumes low energy and does not contain substances harmful to the environment, helping to reduce energy consumption and environmental pollution.

Ultra-wide Viewing Angle: Up to 120 degrees, providing uniform light distribution, suitable for occasions requiring extensive lighting coverage.

High Luminous Efficacy: Can improve illuminance, and the light is relatively uniform without obvious dark corners.

Focusing Characteristics of Circular Laser LED Beads

Smaller Light Emitting Core: Easier to focus, suitable for directional lighting tools such as flashlights.

Focusing Effect: Compared to floodlighting, focusing can project light more concentratedly onto the target area, improving lighting effects.

Portability and Durability of Circular Laser LED Beads

Portability: Due to its small size and light weight, circular laser LED beads make flashlights more portable, suitable for outdoor activities, camping, hiking, and other occasions.

Durability: Made of durable materials, it has good waterproof and shockproof performance, and can work normally in harsh outdoor environments.



In summary, circular laser LED beads are an ideal choice for flashlights due to their high brightness, high efficiency, long lifespan, energy saving, environmental protection, ultra-wide viewing angle, high luminous efficacy, and excellent focusing characteristics. At the same time, their portability and durability also make them outstanding in outdoor activities, making them an important element in modern lighting design.



For more details, please contact with us directly!
