5W 5050 SMD LED 6V 9V 12V 15V 18V 24V 30V 36V

Round Shade 5050 smd led for Flash Light Specs:

Product name	5W 5050 SMD LED 6V 9V 12V 15V 18V 24V 30V 36V
Part number	GE-5050WXXX-2C5Z-J2B2D0-R70
Chips brand	China Sanan 22*40mil with 8 chips, 10 chips or 12 chips in package
Input	Normally with 6vdc max 800mA with 5 Watt. But we can also customised with 9vdc, 12vdc, 15vdc, 18vdc, 24vdc, 30vdc and 36vdc.
Flux	700-800lm at full power loaded, around 220-230lm/w at 1 Watt power loaded
Lighting Efficiency	220-230LM/W at 1 Watt power loaded
Color	2700K, 3000K, 4000K, 5000K, 5700K and 6500K available. CRI can be Ra>70, Ra>80 optional
Power	Max drive at 5 Watt
Package material	EMC flat package with copper
Lighting angle	120 degree
Brand and manufacturer	GMLEDs, GMKJ
Warranty	4 years
OEM service	1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here.

Why we need to use EMC material instead of PCT material for the leds with higher power?

When it comes to using EMC (Epoxy Molding Compound) material versus PCT (Polycyclohexylene Dimethylene Terephthalate) material for high-power LEDs, there are several key factors to consider:

Thermal Management: EMC typically has better thermal conductivity than PCT. High-power LEDs generate significant heat, and effective thermal management is crucial to maintain performance and longevity. EMC can help dissipate heat more effectively.

Electrical Insulation: EMC materials often provide superior electrical insulation properties compared to PCT. This is important for preventing electrical interference and ensuring the safe operation of high-power LEDs.

Mechanical Stability: EMC generally offers better mechanical properties, including higher strength and resistance to deformation under stress. This is beneficial in applications where LEDs may experience vibrations or thermal cycling.

Moisture Resistance: EMC materials tend to have better moisture resistance, which can be critical in preventing corrosion or failure in LED applications exposed to varying environmental conditions.

Processability: EMC can be easier to mold and handle during manufacturing, which can lead to more efficient production processes and better-quality final products.

In contrast, PCT materials can be advantageous in certain applications due to their lower cost, lightweight properties, and good dimensional stability, but they may not perform as well under the demanding conditions of high-power LED applications.

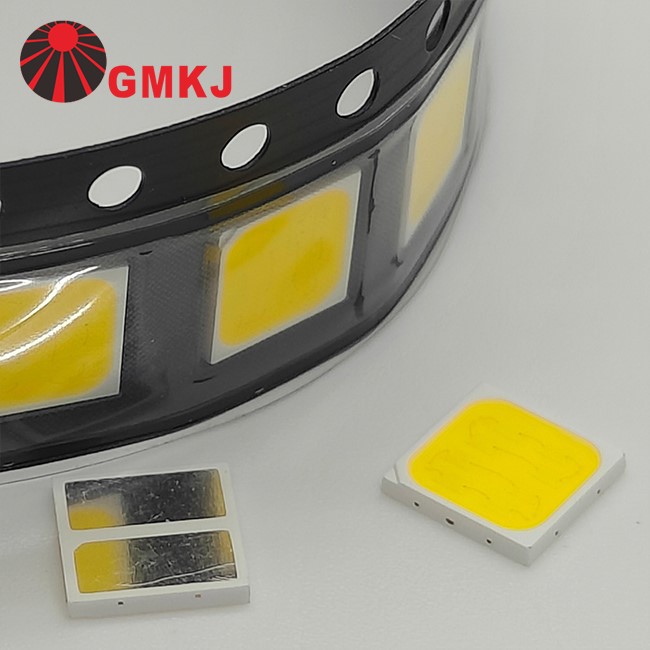

5W 5050 SMD LED 6V 9V 12V 15V 18V 24V 30V 36V Picture:



5W 5050 SMD LED 6V 9V 12V 15V 18V 24V 30V 36V dimensions:



5W 5050 SMD LED 6V 9V 12V 15V 18V 24V 30V 36V Eletrical specs:

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=160mA	5.40	--	5.60	V
Forward Voltage	VF	IF=700mA	5.60	--	6.00	V
Thermal Resistance Junction To Board	RΘJ-B	IF=700mA	--	8	--	°C/W
Lighting Efficiency	Lm/W	IF=160mA	220		230	Lm/W
Luminous Flux	Φv	IF=700mA	700		800	lm
PN: GE-5050W270-2C5Z-J2B2D0-R70	CCT	IF=700mA	--	2700	--	K
PN: GE-5050W300-2C5Z-J2B2D0-R70	CCT	IF=700mA	--	3000	--	K
PN: GE-5050W400-2C5Z-J2B2D0-R70	CCT	IF=700mA	--	4000	--	K
PN: GE-5050W500-2C5Z-J2B2D0-R70	CCT	IF=700mA	--	5000	--	K
PN: GE-5050W650-2C5Z-J2B2D0-R70	CCT	IF=700mA	--	6500	--	K
CRI	Ra	IF=160mA	70	--	--	--
Temperature Coefficient of Forward Voltage	∆VF/∆T	IF=160mA	−−	-2	−−	mV/°C
Reverse Current	IR	VR=10V	−−	−−	10	μ A
Viewing Angle	2Θ1/2	IF=160mA	−−	120	−−	Deg



For more details, please contact with us directly!
