Flat Top 365nm 395nm 405nm 10W UV SMD LED

Flat Top 365nm 395nm 405nm 10W UV SMD LED

Which beam angle quartz glass lens are better for UV curing application? 60 degree or 120 degree?

For UV curing applications, the choice between a 60-degree or 120-degree quartz glass lens beam angle depends primarily on your curing area, intensity requirements, and working distance. Here's a breakdown to help you choose:

🔧 Key Differences:

Flat quartz glass lens with 120 degree lighting angle	Dome quartz glass lens with 60 degree lighting angle

✅ Recommended Use:

Choose 60° if:

You need higher UV intensity for deeper or faster curing.

The application is precise, like spot curing or small bonding areas.

The working distance is medium to long (e.g., >10 cm).

Choose 120° if:

You're curing a large area but don't need intense energy.

The light source is close to the target (e.g., <5 cm).

Uniform coverage is more important than intensity.

🧪 Summary:

For most UV curing applications where high intensity and efficiency matter, the 60° lens is generally better, especially if you're not curing at very close range.

Flat Top 365nm 395nm 405nm 10W UV SMD LED Picture

Flat Top 365nm 395nm 405nm 10W UV SMD LED dimensions



Flat Top 365nm 395nm 405nm 10W UV SMD LED Electrical Specs

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=1400mA	6.00	--	8.00	V
Thermal Resistance Junction To Board	RΘJ-B	IF=1400mA	--	5	--	°C/W
Radiant Flux	Φe	IF=1400mA	3000	--	3500	mW
Peak wavelength	λp	IF=1400mA	395	--	400	nm
Reverse Current	IR	VR=10V	−−	−−	10	μ A
Viewing Angle	2Θ1/2	IF=1400mA	−−	120	−−	Deg



What does Flat Top 365nm 395nm 405nm 10W UV SMD LED used for?



Flat Top 365nm 395nm 405nm 10W UV SMD LED applications



The Flat Top 10W UV SMD LEDs with wavelengths of 365nm, 395nm, and 405nm are versatile components widely used across various industries. Here's a concise overview of their applications:

🔧 Common Applications

UV Curing: Ideal for curing UV-sensitive adhesives, inks, resins, and coatings in industries like printing, electronics, and automotive. ​tuoran2022.en.made-in-china.com+2gmleds.com+2shenzhen yuanming co., ltd+2

Nail Dryers: Utilized in UV nail lamps to quickly harden gel polishes.​

Counterfeit Detection: Employed in verifying the authenticity of currency, identification cards, and official documents. ​abra-electronics.com

Aquarium Lighting: Provides essential UV light for coral growth and maintaining reef tank ecosystems. ​gmleds.com

Plant Growth: Supports horticultural applications by promoting plant development through UV exposure. ​

Sterilization: Effective in disinfecting surfaces and water by eliminating bacteria and viruses.​

Aquarium Lighting

Counterfeit Detection

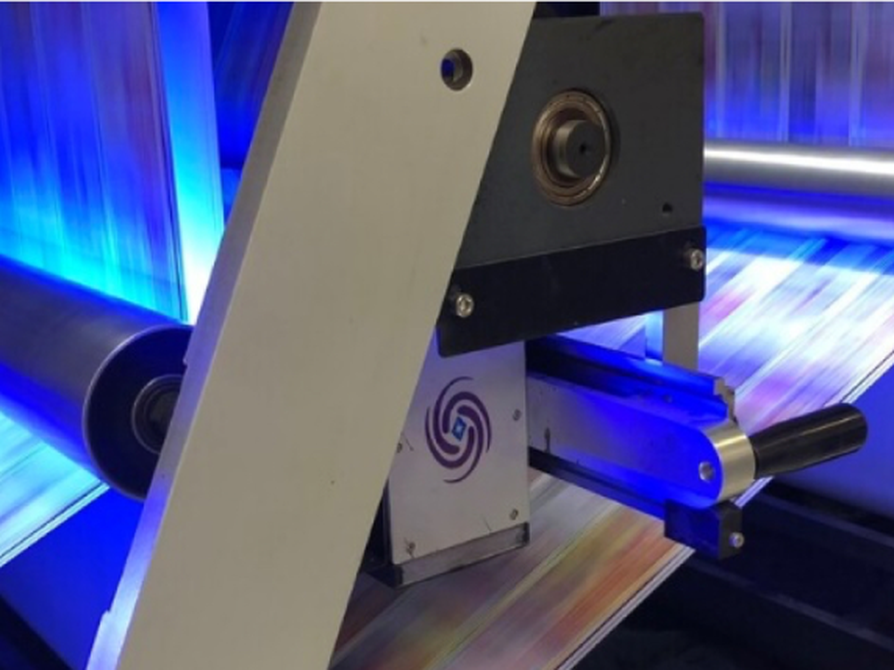

UV Curing

About GMLEDs

Certification available in GMLEDs

Guangmai Technology Certificaitions

CE

CE-LVD

FCC

ROHS

ISO9001

LM-80

For more details, please contact with us directly!
