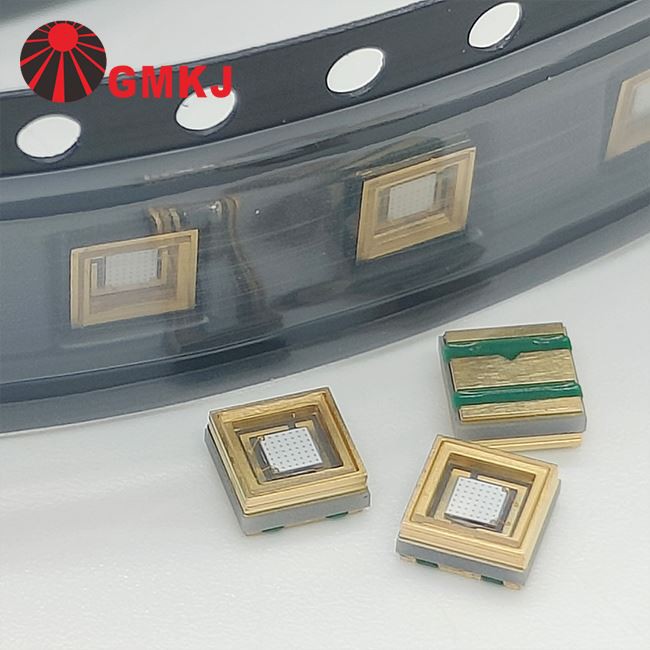

Flat Window UVA 365nm 385nm 395nm 405nm 3535 SMD LED Specs
| Product name | Flat Window UVA 365nm 385nm 395nm 405nm 3535 SMD LED |
| Part number for 365nm | GD-3535P365-1CC0-S1E5PB |
| Part number for 385nm | GD-3535P385-1CC0-S1E5PB |
| Part number for 395nm | GD-3535P395-1CC0-S1E5PB |
| Part number for 405nm | GD-3535P400-1CC0-S1E5PB |
| Chips brand | China Sanan 55mil vertical chips |
| Input |
3.2-3.8vdc with max 1000mA |
| Radiation power |
1000-1400mW at 700mA; 1200-1600mW at 1000mA |
| Lighting Efficiency | Invisible UV lighting ,does not mention about the LPW |
| Color |
Below UV wavelength are available; 365-370nm; 380-390nm; 390-400nm; 400-410nm; |
| Power |
Max 3.5 Watt at 1000mA |
| Package material | ALN Ceramic size 3.5x3.5mm |
| Lighting angle |
120 degree |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |
Comparison: Flat Window Quartz Glass UV 3535 SMD LEDs vs. Domed & Epoxy-Lensed UV LEDs
| Feature | Flat Window Quartz Glass UV 3535 SMD LEDs | Domed UV LEDs (Silicone/Epoxy Lens) | Epoxy-Lensed UV LEDs |
|---|---|---|---|
| UV Transmission Efficiency | ✅High (Quartz glass has excellent UV transparency) | ⚠️Moderate (Some UV absorption by silicone/epoxy) | ❌Low (Epoxy absorbs more UV, reducing output efficiency) |
| Heat Resistance | ✅Excellent (Quartz dissipates heat well) | ⚠️Moderate (Silicone withstands heat but degrades over time) | ❌Poor (Epoxy softens and degrades under heat) |
| UV Degradation Resistance | ✅Very High (Quartz is UV-stable) | ⚠️Moderate (Silicone degrades over long exposure) | ❌Low (Epoxy yellows and cracks quickly under UV) |
| Light Distribution | ✅Uniform, wide emission | ⚠️Focused beam (dome shape can cause hotspots) | ❌Less consistent, potential uneven spots |
| Durability & Lifespan | ✅Longest lifespan (Quartz does not degrade) | ⚠️Shorter than quartz but longer than epoxy | ❌Shortest lifespan (Epoxy degrades quickly) |
| Power Handling | ✅High-power capable (Quartz handles intense UV) | ⚠️Moderate (Silicone domes can withstand moderate power) | ❌Low-power only (Epoxy cannot handle high UV intensity) |
| Chemical & Environmental Resistance | ✅Excellent (Resistant to chemicals, humidity, and corrosion) | ⚠️Moderate (Can absorb moisture, leading to degradation) | ❌Poor (Sensitive to chemicals and environmental exposure) |
| Ease of Cleaning & Maintenance | ✅Easy to clean (flat surface, no dust accumulation) | ⚠️Dome shape may trap dust and be harder to clean | ❌Prone to scratches and damage |
| Application Suitability | 🔹Best for high-power UV curing, sterilization, PCB exposure, industrial use | 🔹Best for applications requiring focused beams (UV spot curing, fluorescence detection) | 🔹Best for cost-sensitive, low-power applications (hobbyist projects, basic UV detection) |
Conclusion
Flat Window Quartz Glass UV 3535 SMD LEDs are the best choice for high-power, industrial-grade UV applications due to their superior efficiency, durability, and stability.
Domed UV LEDs are good for applications requiring focused light but may suffer from degradation over time.
Epoxy-lensed UV LEDs are cheap but have the lowest performance and fastest degradation, making them unsuitable for high-power or long-term UV exposure applications.
Flat Window UVA 365nm 385nm 395nm 405nm 3535 SMD LED Picture
Flat Window UVA 365nm 385nm 395nm 405nm 3535 SMD LED Package dimensions
Flat Window UVA 365nm 385nm 395nm 405nm 3535 SMD LED Electrical Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=700mA |
3.20 |
-- |
3.60 |
V |
|
VF |
IF=1000mA |
3.40 |
-- |
3.80 |
V |
|
|
Radiant Flux |
Φe |
IF=700mA |
1000 |
-- |
1400 |
mW |
|
Φe |
IF=1000mA |
1200 |
-- |
1600 |
mW |
|
|
Peak wavelength |
λp |
IF=700mA |
365 |
-- |
370 |
nm |
|
λp |
IF=1000mA |
365 |
-- |
370 |
nm |
|
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
5 |
-- |
°C/W |
Flat Window UVA 365nm 385nm 395nm 405nm 3535 SMD LED Application
Flat Window UVA 365nm 385nm 395nm 405nm 3535 SMD LED applications
Flat Window UVA 365nm 385nm 395nm 405nm 3535 SMD LED, especially one made with a ceramic base for efficient heat dissipation and durability, is typically used in applications where high-intensity UV light is needed for effective curing and processing. The main applications include:
UV Curing in Industrial Printing:
Used in inkjet and offset printing for curing inks, coatings, and varnishes on various substrates (e.g., paper, plastic, and metal).
Offers fast curing speeds, enabling high throughput in commercial printing processes.
Adhesive and Coating Curing:
Ideal for curing UV-sensitive adhesives used in electronics, automotive, medical devices, and other precision manufacturing industries.
Also used in coating applications where a quick, durable finish is required, such as wood finishes, protective coatings, and optical coatings.
3D Printing:
Utilized in SLA (Stereolithography) and DLP (Digital Light Processing) 3D printing for curing photopolymer resins layer by layer.
Allows for the production of high-precision 3D printed parts with smooth surfaces.
PCB and Electronics Manufacturing:
Employed in curing conformal coatings and UV adhesives on printed circuit boards (PCBs) and electronic components for added protection and durability.
Ensures quick curing with minimal heat damage to sensitive electronic components.
Automotive and Aerospace Component Manufacturing:
Used to cure UV-sensitive paints, coatings, and adhesives in manufacturing, providing strong, durable bonds and surface protection.
Beneficial in high-volume automotive production lines due to its fast-curing properties.
Optical and Lens Bonding:
Suitable for bonding lenses and other optical components in applications where precision and clarity are critical, such as in eyewear, cameras, and medical imaging equipment.
The ceramic base of the 200W UV LED module helps in efficient heat dissipation, ensuring longer operational life and consistent performance under high-power conditions, making it ideal for demanding, continuous-use environments.
