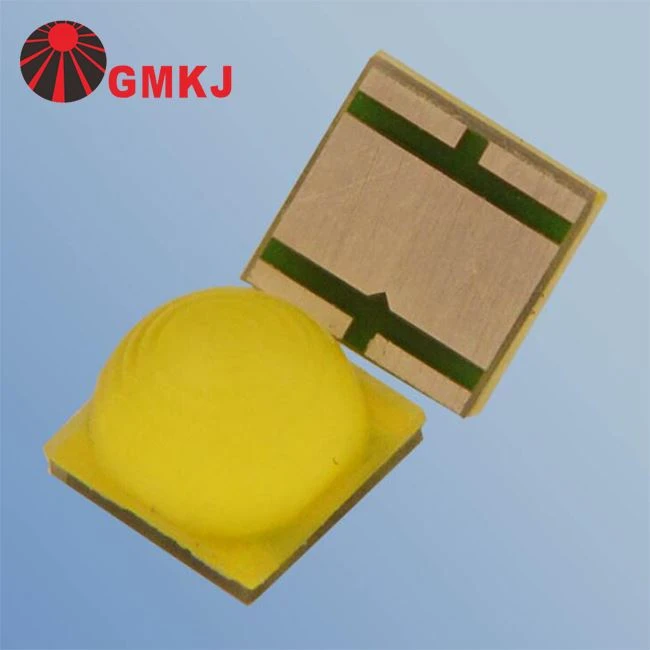

Guangmai Technology is professional in making the XHP50 LED equivalent 5050 SMD LED ALN base.
What is the Eutectic Die Bonding/Eutectic welding for the LED chips???
Au-Sn eutectic (AuSn20), also known as gold-tin alloy, deposits the gold and stannous ions in the plating solution on the position specified in the order according to the mass fraction of Au80% and the content of tin 20% through electrolysis. Au-Sn eutectic contains two phases of AuSn (δ) and Au5Sn (ζ) low-temperature eutectic precious metal solder. Its thickness is controlled by the deposition time and can be directly soldered to the gold layer at 300°C without flux.
Moderate brazing temperature
The brazing temperature is only 20-30°C higher than its melting point (that is, about 300-310). During the brazing process, based on the eutectic composition of the alloy, a small degree of superheat can melt and infiltrate the alloy; in addition, the solidification process of the alloy proceeds very quickly. Therefore, the use of gold-tin alloy can greatly shorten the cycle of the entire brazing process. The brazing temperature range of gold-tin alloy is suitable for the assembly of components that require high stability. At the same time, these components can also withstand subsequent assembly using lead-free solder at a relatively low temperature. The assembly temperature of these solders is approximately 260°C.
High strength
The yield strength of gold-tin alloy is very high. Even at a temperature of 250 to 260 ℃, its strength can meet the requirements of air tightness.
No flux needed
Gold occupies a large proportion (80%) in the alloy composition, and the degree of oxidation on the surface of the material is low. If vacuum or a mixture of reducing gases such as nitrogen and hydrogen is used in the brazing process, chemical flux is not necessary.
Low viscosity
Liquid gold-tin alloy has very low viscosity, which can fill some large gaps.
Good wettability
It has a good corrosion phenomenon of lead-free tin solder on the gold-plated layer,
The composition of the gold-tin alloy and the gold-plated layer is close, so the degree of leaching of a very thin plating layer through diffusion is very low, and there is no migration phenomenon like silver.
In addition, Au80%Sn20% solder also has high corrosion resistance, high creep resistance, and good thermal and electrical conductivity.
Package Size:
Application
About Guangmai
Shenzhen Guangmai Technology Co., Ltd. is a professional LED manufacturer integrating design, R&D, production and sales. In 2018, the company launched the new CSP 1616 2016 1860 3570 series of automotive light sources; ceramic 2525, 3535, 5050, 7070, 7090 SMD LED lamp beads, high-power 1-3W single lamp beads, 5-500W high-power integrated lamp beads, 1-5W vertical luminous high-power LED lamp beads, etc., suitable for indoor and outdoor lighting fixtures in various environmental fields and automotive fields and flashlight mobile lighting fixtures; LED lights have many advantages such as energy saving, high efficiency, safety, environmental protection, and long life. Become people's preferred lighting products. At present, LED products are widely used in shopping malls, supermarkets, office buildings, hospitals, subways, factories, squares, parks, roads, mobile lighting and other fields. The company adheres to the business policy of "innovation as the driving force, market as the orientation, and service as the center". The products are widely used by many domestic customers. At the same time, they are also sold to Europe, America, Southeast Asia and other countries, and are universally appreciated and recommended.
Datasheet:
For more details, please feel free to contact with Guangmai Tech directly.
You can download the datasheet of XHP50 LED equivalent 5050 SMD LED ALN base from the head of this page.
