SDCM 5 Step Flip Chip 3535 RGBW SMD LED Specs
| Product name | SDCM 5 Step Flip Chip 3535 RGBW SMD LED |
| Part number | GT-3535RGBWX-4BD0-A1B8M-R80 |
| Chips brand | China Sanan flip chips inside |
| Input |
Each color 1W 350mA forward current |
| Luminous Intensity |
Red: 40-60lm; Green: 120-140lm; Blue: 20-30lm, White: 130-150lm |
| Lighting Efficiency |
Total around 80-100 LM/W |
| Color |
Red color 620-630nm; Green color 520-530nm; Blue color 455-465nm;
White color: SDCM<5, 5 steps: 3000K, 4000K, 5000K, 6500K, Ra>80 |
| Power |
Each color 1W 350mA, Total 4x1w with 4 Watt |
| Package material | Ceramic 3535 SMD LEDs |
| Lighting angle |
120 degree dome silicone lens on top |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |
What is the advantages of using SDCM< 5 steps white color LEDs?
Using white color LEDs with SDCM < 5 steps provides significant advantages in terms of color consistency, visual quality, and professional application standards. Here's a clear breakdown:
✅ Advantages of SDCM < 5 Steps in White LEDs
| Advantage | Explanation |
|---|---|
| 1. Better Color Consistency | LEDs with SDCM < 5 have tighter color binning, meaning the color variation between LEDs is minimal and usually not noticeable to the human eye. |
| 2. Improved Visual Appearance | Lighting fixtures using these LEDs will emit uniform white light across the entire installation - no visible color shift (e.g., no mix of bluish or yellowish tones). |
| 3. Enhanced Professional Quality | Ideal for architectural, retail, museum, and high-end commercial lighting where uniform color tone is critical. |
| 4. Better Customer Satisfaction | Consistent white tone avoids end-user complaints about color mismatch, especially when multiple fixtures are installed side-by-side. |
| 5. Higher Perceived Value | Low-SDCM LEDs are often associated with premium quality lighting products. |
| 6. Simplifies Design Matching | Makes it easier for designers and specifiers to match LED light with surroundings or other light sources (e.g., daylight, warm indoor tones). |

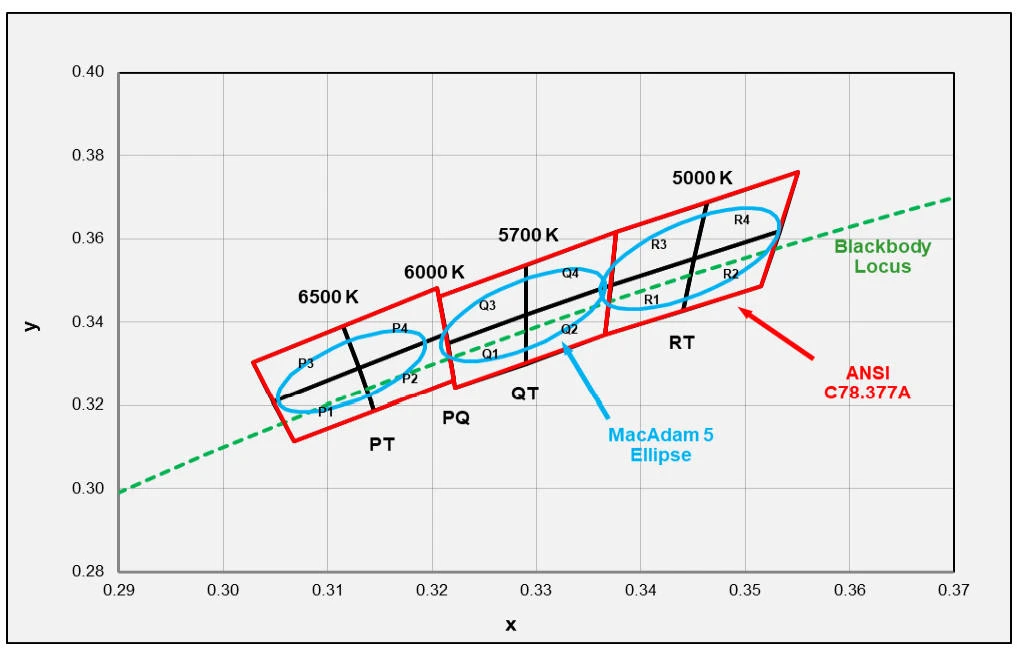

🔍 What does "SDCM < 5" really mean?
SDCM stands for Standard Deviation of Color Matching.
A smaller SDCM number = tighter control over chromaticity variation.
< 3 SDCM: Excellent color precision (often used in high-end applications)
3–5 SDCM: Good quality, visually consistent
> 5 SDCM: May result in noticeable color differences
📌 Use Case Scenarios for SDCM < 5:
Office lighting where uniformity affects concentration
Retail stores where product color rendering must be accurate
Hotels and luxury environments with mood and aesthetic lighting
Downlights or linear lights installed in a grid pattern

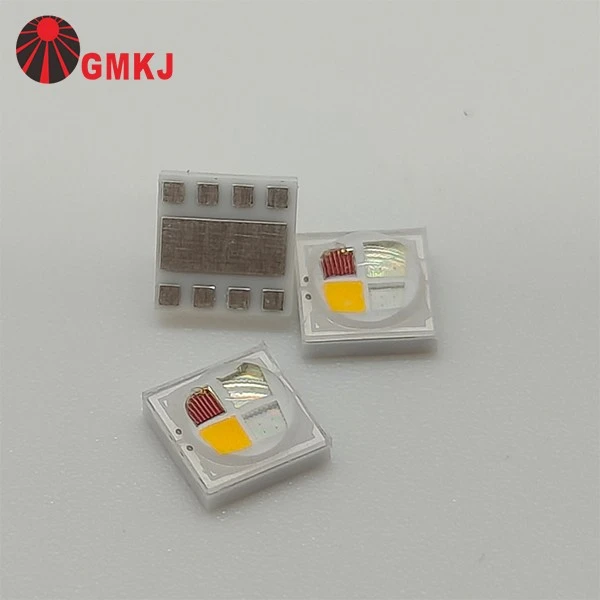

SDCM 5 Step Flip Chip 3535 RGBW SMD LED Picture
Qualified 3535 SMD LED test report with SDCM<5 (seeing below):
LED PCB work assembled by GMKJ
SDCM 5 Step Flip Chip 3535 RGBW SMD LED Dimension
SDCM 5 Step Flip Chip 3535 RGBW SMD LED Electrical Specs
|
Parameter |
Symbol |
Conditions |
Emitting Color |
Values |
Units |
||
|
Min |
Avg. |
Max |
|||||
|
Forward Voltage |
VF |
IF=350mA |
R |
1.80 |
-- |
2.40 |
V |
|
G |
2.80 |
-- |
3.20 |
||||
|
B |
2.80 |
-- |
3.40 |
||||
|
W |
2.80 |
-- |
3.40 |
||||
|
Luminous Flux |
Φv |
IF=350mA |
R |
40 |
-- |
60 |
lm |
|
G |
120 |
-- |
140 |
||||
|
B |
20 |
-- |
30 |
||||
|
W |
130 |
-- |
150 |
||||
|
Dominant wavelength |
λd |
IF=350mA |
R |
620 |
-- |
630 |
nm |
|
G |
520 |
-- |
530 |
||||
|
B |
455 |
-- |
465 |
||||
|
CRI |
Ra |
IF=350mA |
W |
80 |
-- |
-- |
|
|
Color tolerance |
4000K |
IF=350mA |
W |
-- |
-- |
5 |
SDCM |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=350mA |
−− |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=350mA |
−− |
-- |
6.5 |
-- |
°C/W |
SDCM 5 Step Flip Chip 3535 RGBW SMD LED Applications
SDCM 5 Step Flip Chip 3535 RGBW SMD LED Applications
Architectural Lighting
– Facade wash, dynamic building outlines with uniform white and color blending.
Stage & Entertainment Lighting
– Precise color control and consistent white tone for concerts, theaters, and clubs.
Landscape & Outdoor Lighting
– Color-changing and tunable white lighting with minimal color deviation.
High-End Decorative Lighting
– Hotels, malls, and interior design requiring stable white + vivid RGB color.
Smart Lighting Systems
– Tunable white + RGB for scene-based control in smart homes or offices.
LED Displays & Media Facades
– RGBW for high color rendering and true white display capability.
